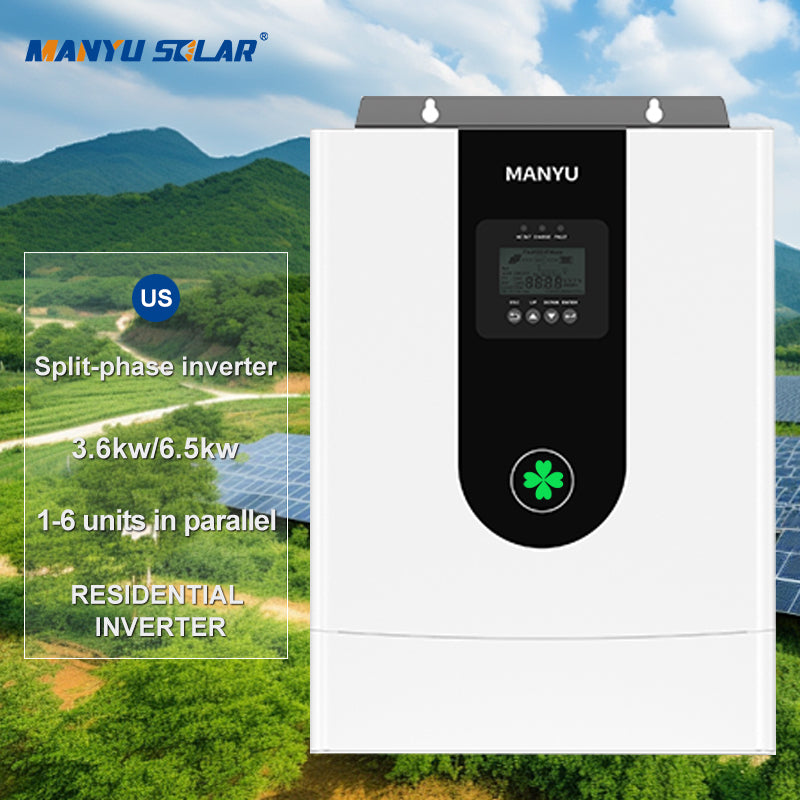

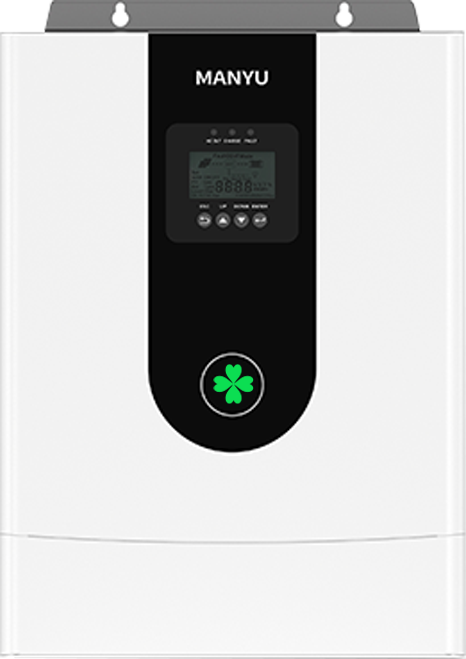

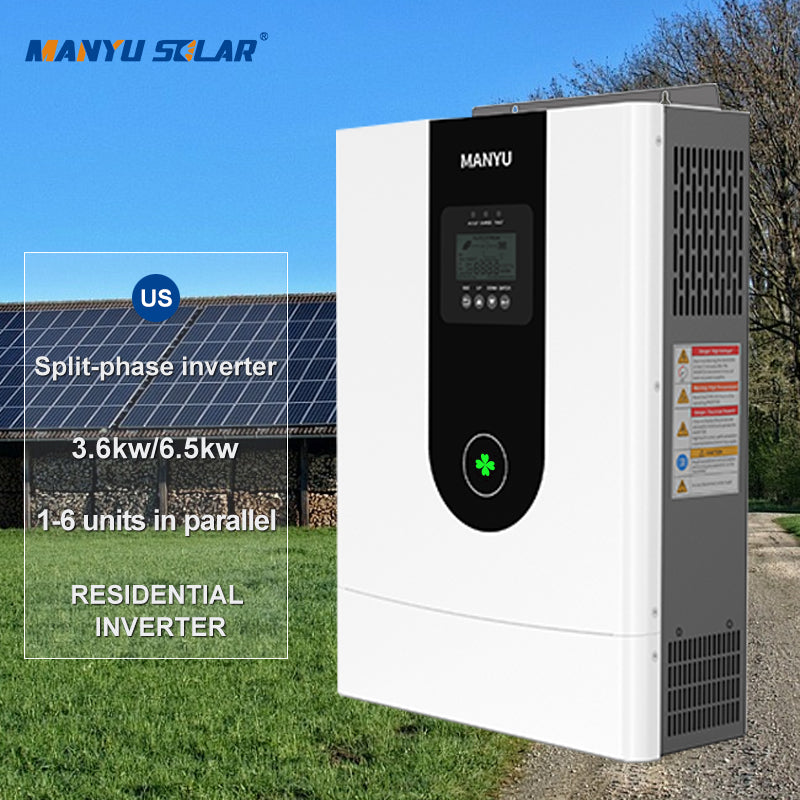

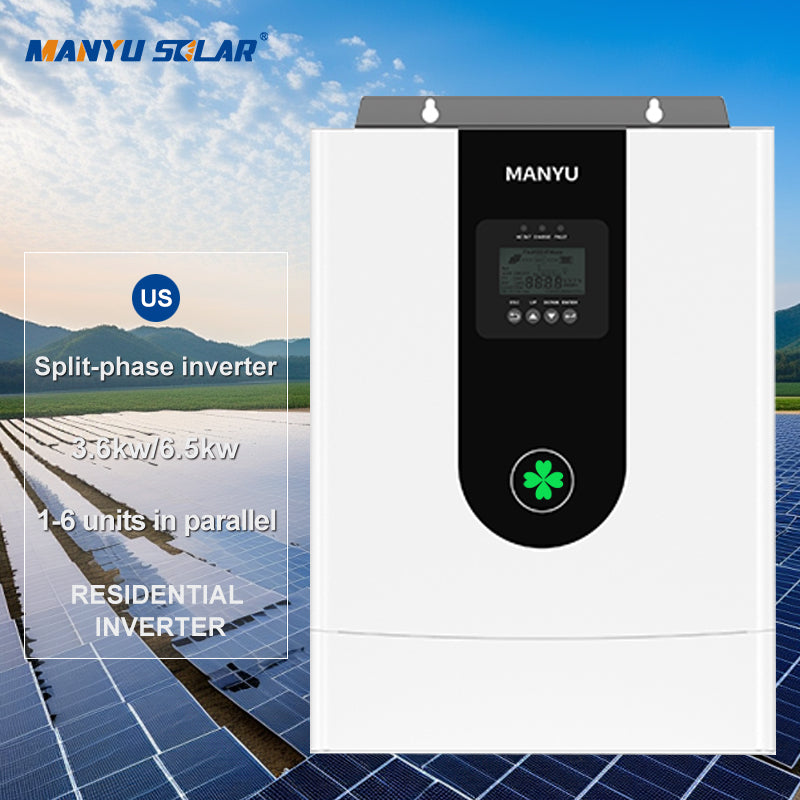

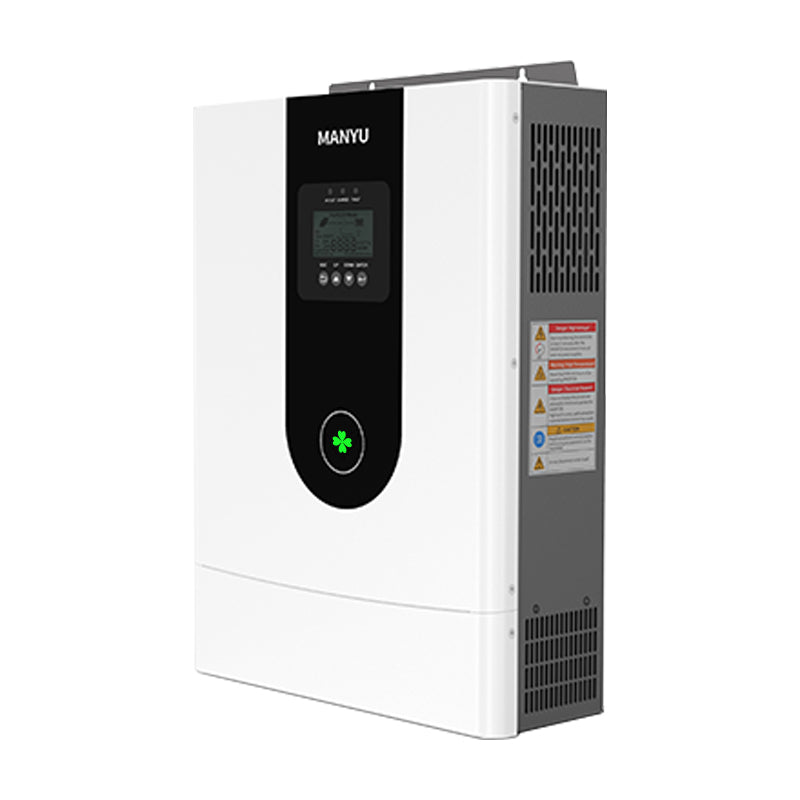

US Pure Sine Wave Solar Inverter 3KW 3.6kw 6.5kw off Grid Power System with Three Phase Output Battery Inverter for Home Use
US Pure Sine Wave Solar Inverter 3KW 3.6kw 6.5kw off Grid Power System with Three Phase Output Battery Inverter for Home Use
Couldn't load pickup availability
①. With dual activation function of lithium battery, Power saving mode available to reduce no-load loss.
②.Anti-countercurrent grid-connected function (photovoltaic hybrid power supply)，grid-connected mode can be set.
③. It can be used without battery. Solar and utility grid can power loads at the same time.
④.Available in four charging modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging.
⑤.Full digital voltage and current double closed loop control, advanced SPWM technology, output of pure sine wave.
⑥. Complete protections, including over voltage and under voltage protection, overload protection, reverse protection, etc ,360° all-round protection with a number of protection functions.
|
model
|
MY-US3.6K-48V/MY-US3.6K-48VP
|
MY-US6.5K-48V/MY-US6.5K-48VP
|
|
Parallel Mode
|
||
|
Allowed parallel quantity
|
2~6 units ( optional function )
|
|
|
Mains mode
|
||
|
Rated input voltage
|
110/120Vac
|
|
|
Input voltage range
|
(90Vac-140Vac)±2%
|
|
|
frequency
|
50Hz/60Hz ( auto detection )
|
|
|
Frequency range
|
47+0.3Hz~55±0.3Hz(50Hz);57+0.3Hz~65±0.3Hz(60Hz);
|
|
|
Overload / short circuit protection
|
breaker
|
|
|
Maximum efficiency
|
>95%
|
|
|
Conversion time ( bypass and inverter )
|
10ms ( typical )
|
|
|
AC reverse feeding protection
|
have
|
|
|
Maximum bypass overload current
|
40A
|
60A
|
|
Inverter mode
|
||
|
Output voltage waveform
|
Pure sine wave
|
|
|
Rated output power ( VA)
|
3600
|
6500
|
|
Rated output power ( W)
|
3600
|
6500
|
|
Power Factor
|
1
|
|
|
Rated output voltage (Vac)
|
120Vac
|
|
|
Output voltage error
|
±5%
|
|
|
Output frequency range (HZ)
|
50Hz±0.3Hz/60Hz±0 3Hz
|
|
|
Maximum efficiency
|
>92%
|
|
|
Overload protection
|
(102%< load <110%)±10%: report an error and shut down the output after 5 minutes (110%< load <125%)±10%: report
|
|
|
an error and shut down the output after 10 seconds Load >125%±10%: report an error and shut down the output after 5 seconds ;
|
||
|
Peak Power
|
5400VA
|
12000VA
|
|
Motor load capacity
|
2HP
|
5HP
|
|
Output short circuit protection
|
breaker
|
|
|
Bypass circuit breaker specifications
|
40A
|
60A
|
|
Rated battery input voltage
|
48V ( minimum starting voltage 44V)
|
|
|
Battery voltage range
|
40.0Vdc~60Vdc+0.6Vdo
|
|
|
Power saving mode
|
Load ≤ 25W enters power saving mode
|
|
|
Mains charging
|
||
|
Battery Type
|
Lead acid or lithium battery
|
|
|
Maximum charging current ( adjustable )
|
40A
|
120A
|
|
Charging current error
|
±5Adc
|
|
|
Charging voltage range
|
40-60Vdc
|
|
|
Short circuit protection
|
Circuit Breakers and Fuses
|
|
|
Circuit breaker specifications
|
40A
|
60A
|
|
Solar Charging
|
||
|
Maximum PV open circuit voltage
|
320Vdc
|
|
|
PV operating voltage range
|
80-300Vdc
|
|
|
MPPT number
|
1
|
2
|
|
MPPT voltage range
|
90-260Vdc
|
|
|
Maximum PV input power
|
4000W
|
|
|
Maximum PV input current
|
13A
|
22A*2
|
|
Solar charging current range ( adjustable )
|
0-60A
|
0-120A
|
|
Electrical short circuit protection
|
Blown fuse
|
|
|
Wiring protection
|
Reverse polarity protection
|
|
|
Maximum hybrid charging current (PV+AC)
|
||
|
Maximum hybrid charging current ( adjustable )
|
0-60A
|
0-120A
|
|
Certification Specifications
|
||
|
Specification Certification
|
UL1741
|
|
|
EMC certification level
|
FCC 15 class B
|
|
|
Operating temperature range
|
-15°C to 55°C
|
|
|
Storage temperature range
|
-25°C~60°C
|
|
|
Humidity range
|
5% to 95% ( three-conformal coating protection )
|
|
|
noise
|
≤60dB
|
|
|
Heat dissipation
|
Forced air cooling, adjustable wind speed
|
|
|
Communication interface
|
USB/RS485 (WIFI/GPRS) dry node control
|
|
|
Size ( L*W*D)
|
415mm*280mm*100mm
|
540x350x120mm
|
|
Weight ( kg)
|
7.8
|
15
|
