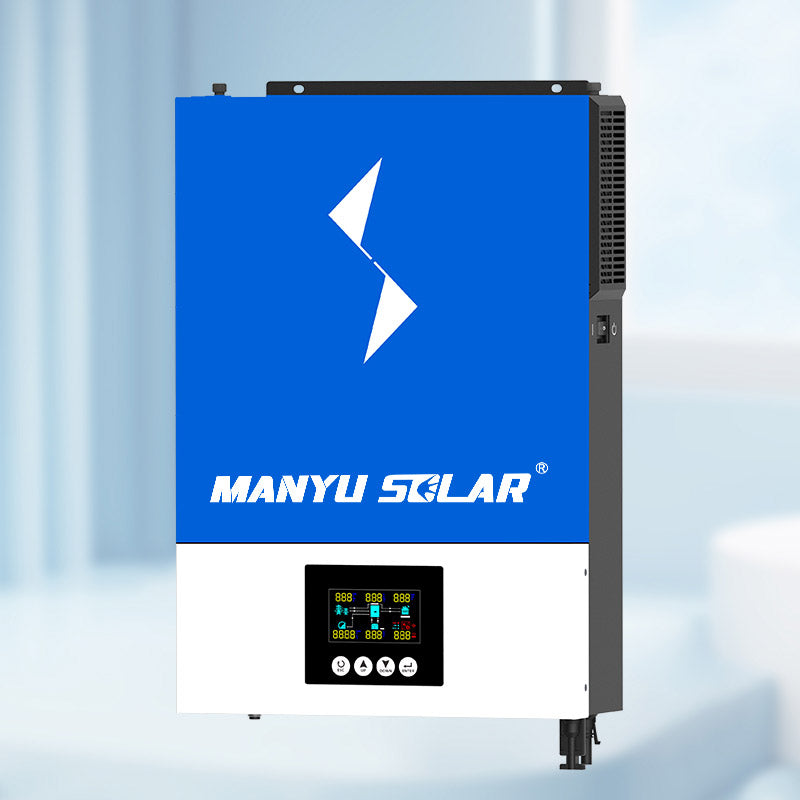

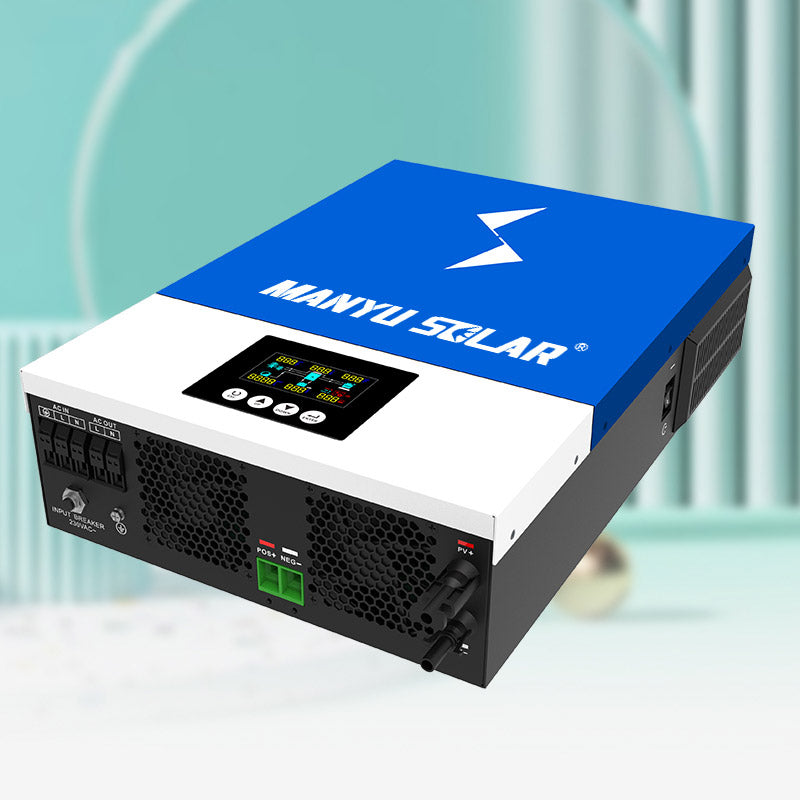

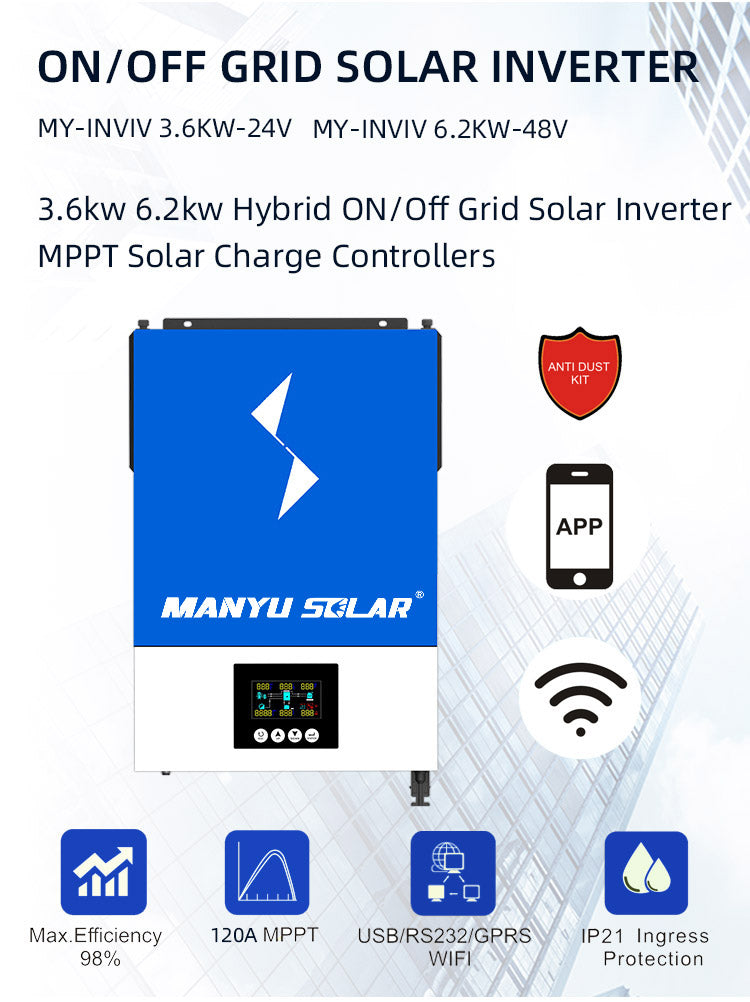

On/Off-Grid Dc-Ac Wall Inverter 3.6Kw 6.2kw Hybrid Solar Inverter 48V 24V All In One Mpp Hybrid Solar Inverter
On/Off-Grid Dc-Ac Wall Inverter 3.6Kw 6.2kw Hybrid Solar Inverter 48V 24V All In One Mpp Hybrid Solar Inverter
Couldn't load pickup availability
- Pure sine wave solar inverter(on/off Grid)
- Output power factor 1.0

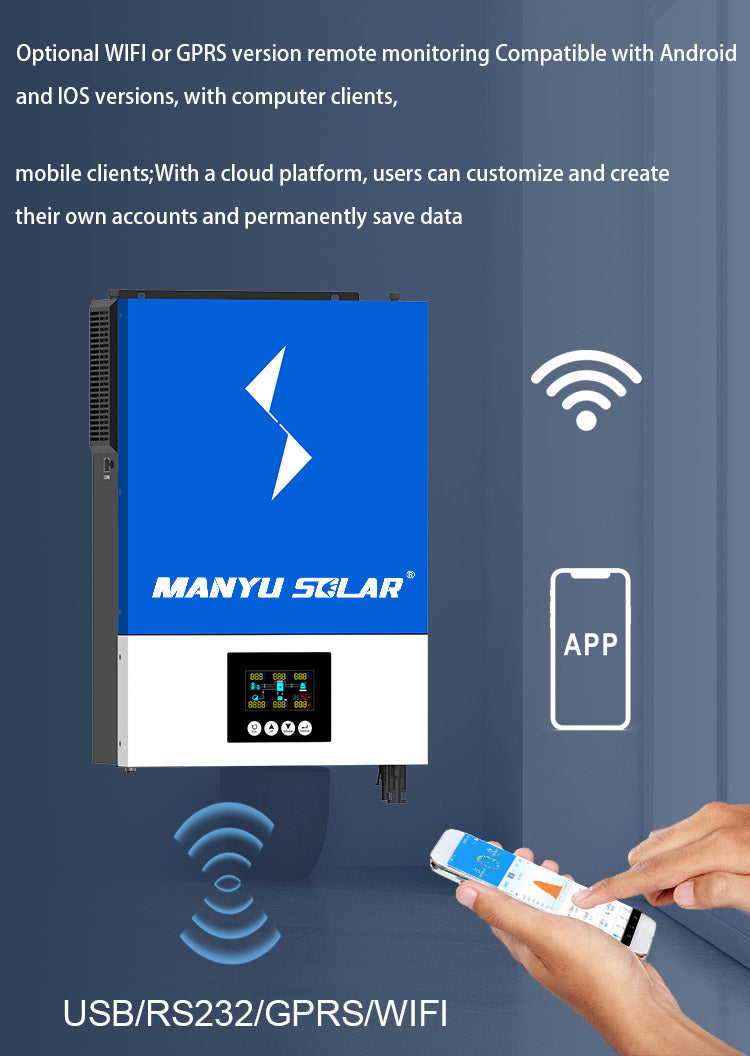

- wIFI&GPRS available for IOS and Android
- lnverter running without battery
- One-click restoration to factory Settings
- Built-in Lithium battery automatic activation
- Built-in 120A MPPT(Max 650ow) solar charger
- High PV input voltage range(90~500VDC)
- Built-in anti-dusk kit for harsh environment
- Smart battery charge design to optimize battery life
|
MODEL
|
MY-INVV-3.6KW 24V
|
MY-INVV-6.2KW 48V
|
|
Phase
|
1-phase
|
|
|
Maximum PV Input Power
|
6200W
|
6500W
|
|
Rated Output Power
|
3600W
|
6200W
|
|
Maximum Solar Charging Current
|
120A
|
|
|
GRID-TIE OPERATION PV lnput(DC)
|
||
|
Nominal DC Voltage/Maximum DC Voltage
|
360VDC/500VDC
|
|
|
Start-up Voltage/Initial Feeding Voltage
|
90VDC/120VDC
|
|
|
MPPT Voltage Range
|
90VDC~450VDC
|
|
|
Number of MPPT Trackers/Maximum Input Current
|
1/27A
|
|
|
GRID OUTPUT AC
|
||
|
Nominal Output Voltage
|
200/230/240VAC
|
|
|
Output Voltage Range
|
195.5~253VAC
|
|
|
Nominal Output Current
|
15.7A
|
27.0A
|
|
Power Factor
|
＞0.99
|
|
|
Feed-in Grid Frequency Range
|
49-51士1Hz
|
|
|
EFFICENCY
|
||
|
Maximum Conversion Efficiency(DC/AC)
|
97%
|
|
|
TWO LOAD OUTPUT POWER(V2.0)
|
||
|
Full Load
|
3600W
|
6200W
|
|
Maximum Main Load
|
3600W
|
6200W
|
|
Maximum Second Load(battery mode)
|
1200W
|
2067W
|
|
Main Load Cut Off Voltage
|
22VDC
|
44VDC
|
|
Main Load Return Voltage
|
24VDC
|
48VDC
|
|
OFF-GRID OPERATION AC INPUT
|
||
|
AC Start-up Voltage/Auto Restart Voltage
|
120-140VAC/180VAC
|
|
|
Acceptable Input Voltage Range
|
90-280VAC or 170-280VAC
|
|
|
Maximum AC Input Current
|
30A
|
40A
|
|
Nominal operating frequency
|
50/60Hz
|
|
|
Surge power
|
7200VA
|
12400VA
|
|
PV INPUT(DC)
|
||
|
Maximum DC Voltage
|
500VDC
|
|
|
MPPT Voltage Range
|
90VDC-450VDC
|
|
|
Number of MPPT Trackers/Maximum Input Current
|
1/27A
|
|
|
BATTERY MODE OUTPUT(AC)
|
||
|
Nominal Output Voltage
|
24VDC
|
48VDC
|
|
Output Waveform
|
Pure sine wave
|
|
|
Efficiency(DC to AC)
|
94%
|
|
|
BATTERY & CHARGER
|
||
|
Nominal DC Voltage
|
24VDC
|
48VDC
|
|
Maximum Solar Charging Current
|
120A
|
|
|
Maximum AC Charging Current
|
100A
|
|
|
Maximum battery Current
|
125A
|
150A
|
|
GENERAL PHYSICAL
|
||
|

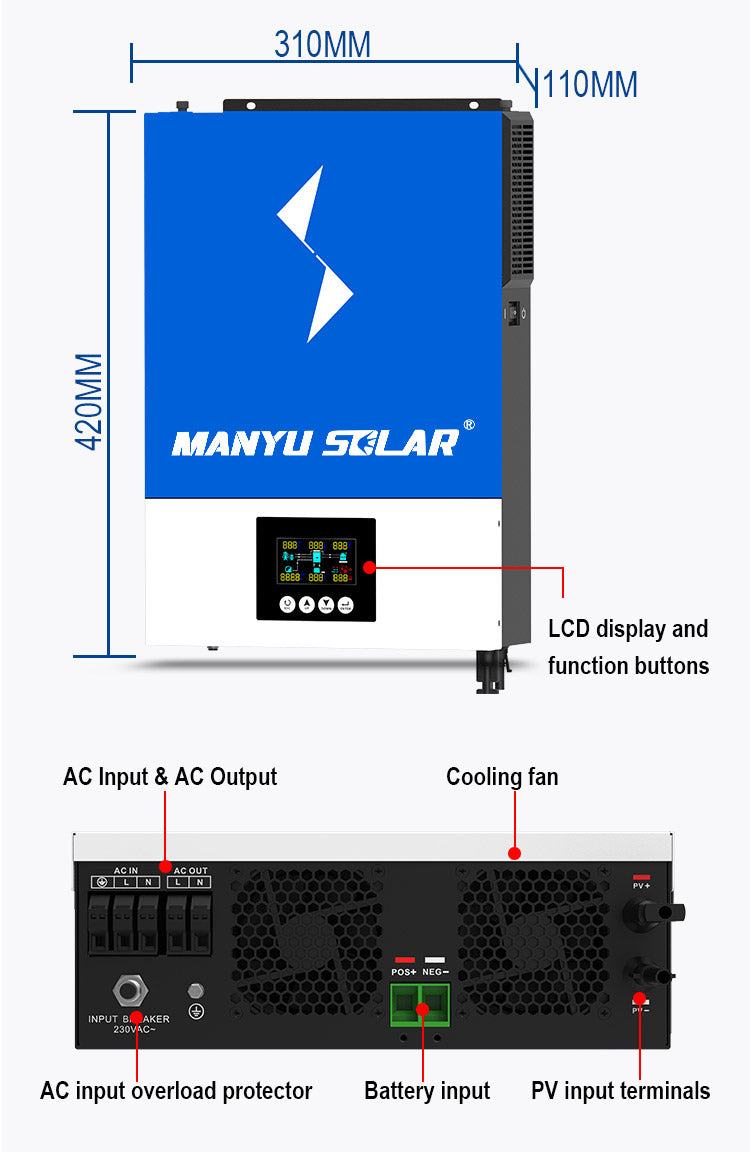

Dimension,D x W x H(mm)
|
420*310*110
|
|
|
Net Weight(kgs)
|
10
|
11
|
|
INTERFACE
|
||
|
Communication Port
|
RS232/WIFI/BMS
|
|
|
ENVIRONMENT
|
||
|
Humidity
|
0~90%
|
|
|
Operating Temperature
|
-10 to 50℃
|
|
