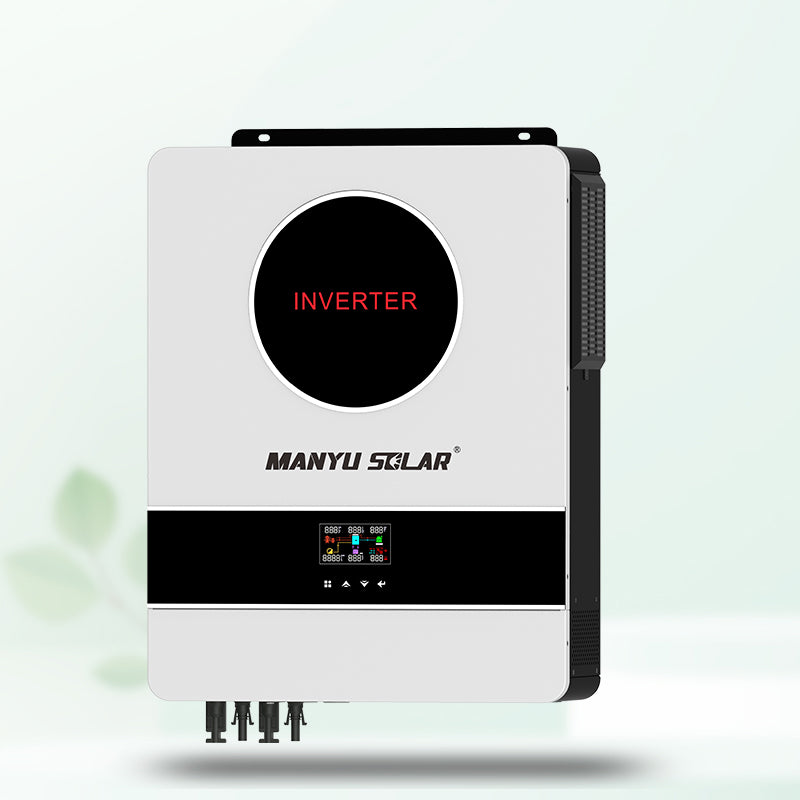

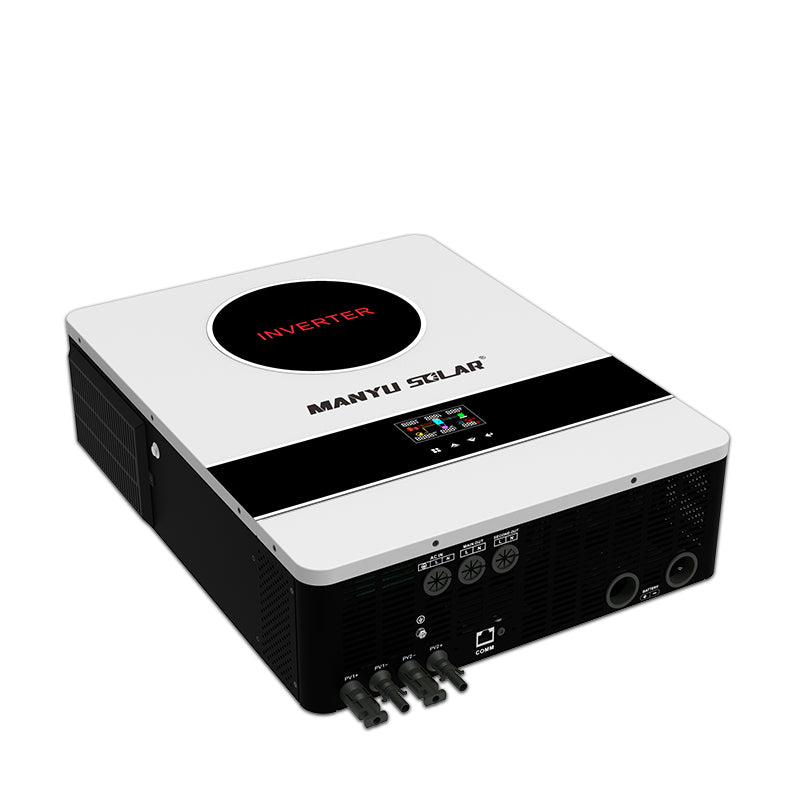

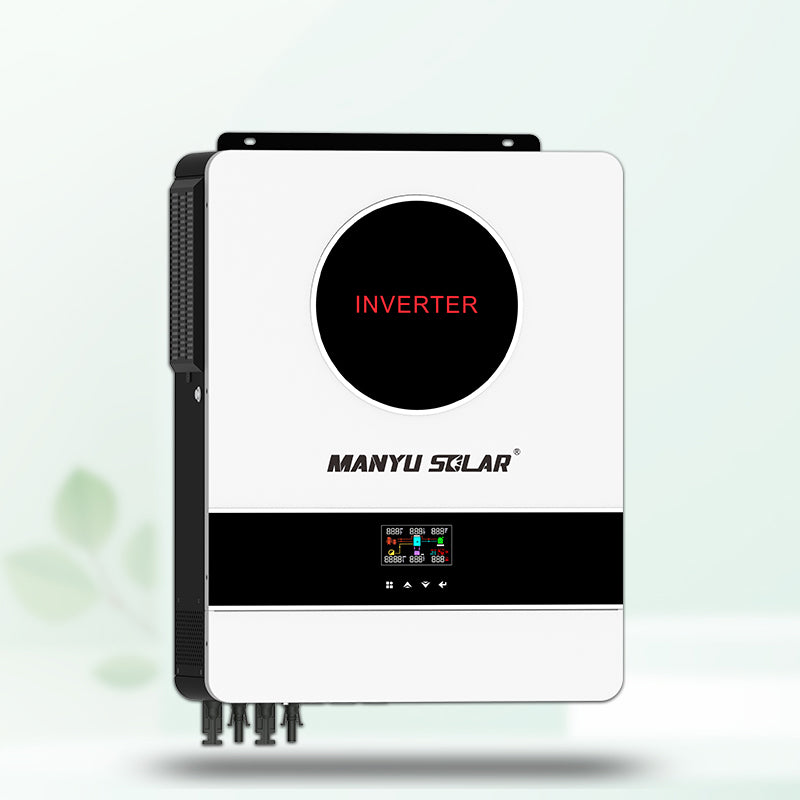

On/Off-Grid Dc-Ac Wall Inverter 7.2Kw 8.2kw 10.2kw Hybrid Solar Inverter 48V All In One Mpp Hybrid Solar Inverter
On/Off-Grid Dc-Ac Wall Inverter 7.2Kw 8.2kw 10.2kw Hybrid Solar Inverter 48V All In One Mpp Hybrid Solar Inverter
Couldn't load pickup availability
· Pure sine wave solar inverter(on/off Grid)
· Output power factor 1.0
· WIFI&GPRS available for lOS and Android
· lnverter running without battery
· One-click restoration to factory Settings
· Built-in Lithium battery automatic activation
· Built-in 160A(for 7.2KW/8.2KW)/180A(for 10.2KW)MPPT solar charger
· High PV input voltage range(90~500VDC)
· Built-in anti-dusk kit for harsh environment
· Smart battery charge design to optimize battery lifeDual output
· Touch button
On/Off-Grid Dc-Ac Wall Inverter 7.2Kw 8.2kw 10.2kw Hybrid Solar Inverter 48V All In One Mpp Hybrid Solar Inverter
|
MODEL
|
MY-INVMAX 7.2KW-48V
|
MY-INVMAX 8.2KW-48V
|
MY-INVMAX 10.2KW-48V
|
|
Phase
|
1-phase
|
||
|
Maximum PV Input Power
|
8200W
|
8200W
|
10200W
|
|
Rated Output Power
|
7200W/7200VA
|
8200W/8200VA
|
10200W/10200VA
|
|
Maximum Solar Charging Current
|
160A
|
160A
|
180A
|
|
GRID-TIE OPERATION PV lnput(DC)
|
|||
|
Nominal DC Voltage/Maximum DC Voltage
|
360VDC/500VDC
|
||
|
Start-up Voltage/Initial Feeding Voltage
|
90VDC/120VDC
|
||
|
MPPT Voltage Range
|
90VDC~450VDC
|
||
|
Number of MPPT Trackers/Maximum Input Current
|
1/27A
|
||
|
GRID OUTPUT AC
|
|||
|
Nominal Output Voltage
|
200/230/240VAC
|
||
|
Output Voltage Range
|
195.5~253VAC
|
||
|
Nominal Output Current
|
31.3A
|
35.6A
|
44.3A
|
|
Power Factor
|
＞0.99
|
||
|
Feed-in Grid Frequency Range
|
49-51士1Hz
|
||
|
EFFICENCY
|
|||
|
Maximum Conversion Efficiency(DC/AC)
|
98%
|
||
|
TWO LOAD OUTPUT POWER(V2.0)
|
|||
|
Full Load
|
7200W
|
8200W
|
10200W
|
|
Maximum Main Load
|
7200W
|
8200W
|
10200W
|
|
Maximum Second Load(battery mode)
|
2400W
|
2733W
|
3400W
|
|
Main Load Cut Off Voltage
|
44VDC
|
44VDC
|
44VDC
|
|
Main Load Return Voltage
|
48VDC
|
48VDC
|
48VDC
|
|
OFF-GRID OPERATION AC INPUT
|
|||
|
AC Start-up Voltage/Auto Restart Voltage
|
120-140VAC/180VAC
|
||
|
Acceptable Input Voltage Range
|
90-280VAC or 170-280VAC
|
||
|
Maximum AC Input Current
|
40A
|
40A
|
50A
|
|
Nominal operating frequency
|
50/60Hz
|
||
|
Surge power
|
14400W
|
16400W
|
20400W
|
|
PV INPUT(DC)
|
|||
|
Maximum DC Voltage
|
500VDC
|
||
|
MPPT Voltage Range
|
90VDC-450VDC
|
||
|
Number of MPPT Trackers/Maximum Input Current
|
1/27A
|
||
|
BATTERY MODE OUTPUT(AC)
|
|||
|
Nominal Output Voltage
|
24VDC
|
48VDC
|
48VDC
|
|
Output Waveform
|
Pure sine wave
|
||
|
Efficiency(DC to AC)
|
94%
|
||
|
BATTERY & CHARGER
|
|||
|
Nominal DC Voltage
|
48VDC
|
48VDC
|
48VDC
|
|
Maximum Solar Charging Current
|
160A
|
160A
|
180A
|
|
Maximum AC Charging Current
|
140A
|
140A
|
160A
|
|
GENERAL PHYSICAL
|
|
||
|

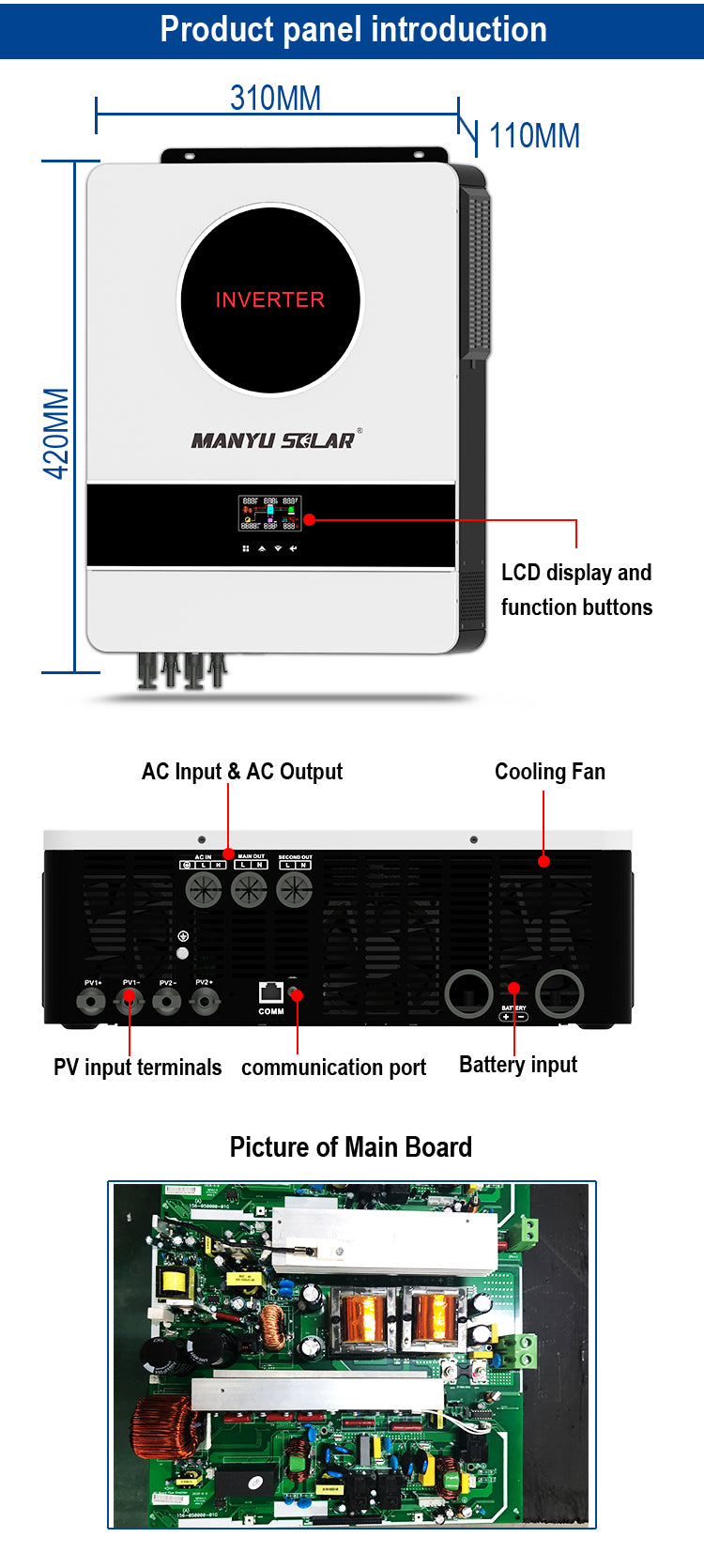

Dimension,D x W x H(mm)
|
420*310*110
|
|
|
|
Net Weight(kgs)
|
14.2
|
14.2
|
14.5
|
|
INTERFACE
|
|
||
|
Communication Port
|
RS232/WIFI/Remove LCD/GPRS
|
||
|
ENVIRONMENT
|
|||
|
Humidity
|
0~90%
|
|
|
|
Operating Temperature
|
-10 to 50℃
|
||
