Mppt Hybrid Solar Inverter 3.6kw 6.2kw DC to AC Off Grid Grid-tied Inverters with DC 24V 48V Battery Inverter
Mppt Hybrid Solar Inverter 3.6kw 6.2kw DC to AC Off Grid Grid-tied Inverters with DC 24V 48V Battery Inverter
Couldn't load pickup availability

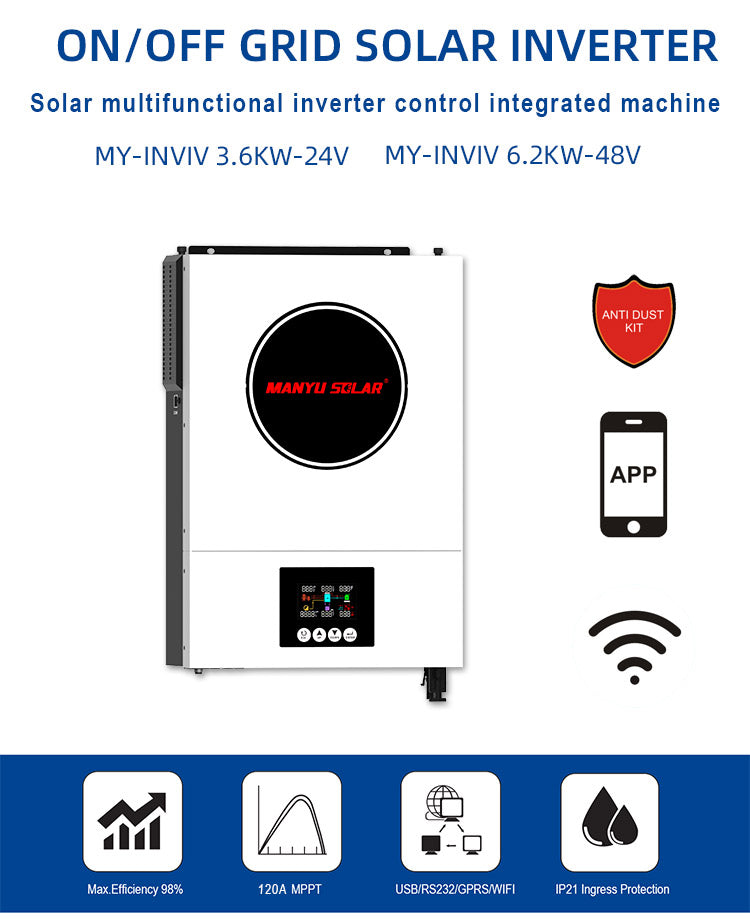

- Pure sine wave solar inverter(on/off Grid)
- Output power factor 1.0

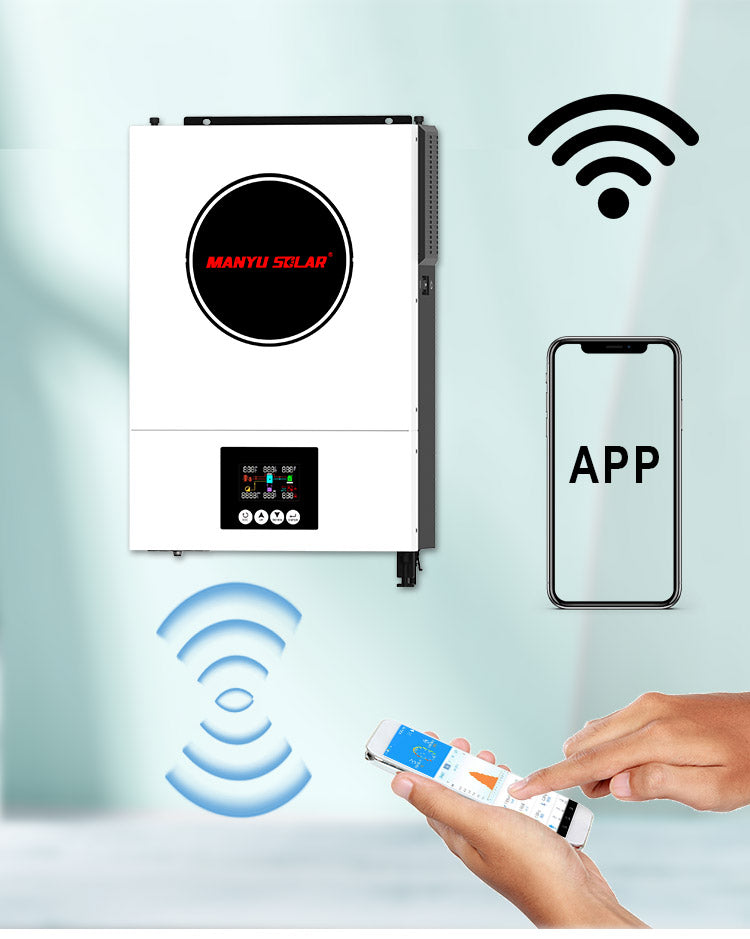

- wIFI&GPRS available for IOS and Android
- lnverter running without battery
- One-click restoration to factory Settings
- Built-in Lithium battery automatic activation
- Built-in 120A MPPT(Max 650ow) solar charger
- High PV input voltage range(90~500VDC)
- Built-in anti-dusk kit for harsh environment
- Smart battery charge design to optimize battery life
|
MODEL
|
MY-INVV-3.6KW 24V
|
MY-INVV-6.2KW 48V
|
|
Phase
|
1-phase
|
|
|
Maximum PV Input Power
|
6200W
|
6500W
|
|
Rated Output Power
|
3600W
|
6200W
|
|
Maximum Solar Charging Current
|
120A
|
|
|
GRID-TIE OPERATION PV lnput(DC)
|
||
|
Nominal DC Voltage/Maximum DC Voltage
|
360VDC/500VDC
|
|
|
Start-up Voltage/Initial Feeding Voltage
|
90VDC/120VDC
|
|
|
MPPT Voltage Range
|
90VDC~450VDC
|
|
|
Number of MPPT Trackers/Maximum Input Current
|
1/27A
|
|
|
GRID OUTPUT AC
|
||
|
Nominal Output Voltage
|
200/230/240VAC
|
|
|
Output Voltage Range
|
195.5~253VAC
|
|
|
Nominal Output Current
|
15.7A
|
27.0A
|
|
Power Factor
|
＞0.99
|
|
|
Feed-in Grid Frequency Range
|
49-51士1Hz
|
|
|
EFFICENCY
|
||
|
Maximum Conversion Efficiency(DC/AC)
|
97%
|
|
|
TWO LOAD OUTPUT POWER(V2.0)
|
||
|
Full Load
|
3600W
|
6200W
|
|
Maximum Main Load
|
3600W
|
6200W
|
|
Maximum Second Load(battery mode)
|
1200W
|
2067W
|
|
Main Load Cut Off Voltage
|
22VDC
|
44VDC
|
|
Main Load Return Voltage
|
24VDC
|
48VDC
|
|
OFF-GRID OPERATION AC INPUT
|
||
|
AC Start-up Voltage/Auto Restart Voltage
|
120-140VAC/180VAC
|
|
|
Acceptable Input Voltage Range
|
90-280VAC or 170-280VAC
|
|
|
Maximum AC Input Current
|
30A
|
40A
|
|
Nominal operating frequency
|
50/60Hz
|
|
|
Surge power
|
7200VA
|
12400VA
|
|
PV INPUT(DC)
|
||
|
Maximum DC Voltage
|
500VDC
|
|
|
MPPT Voltage Range
|
90VDC-450VDC
|
|
|
Number of MPPT Trackers/Maximum Input Current
|
1/27A
|
|
|
BATTERY MODE OUTPUT(AC)
|
||
|
Nominal Output Voltage
|
24VDC
|
48VDC
|
|
Output Waveform
|
Pure sine wave
|
|
|
Efficiency(DC to AC)
|
94%
|
|
|
BATTERY & CHARGER
|
||
|
Nominal DC Voltage
|
24VDC
|
48VDC
|
|
Maximum Solar Charging Current
|
120A
|
|
|
Maximum AC Charging Current
|
100A
|
|
|
Maximum battery Current
|
125A
|
150A
|
|
GENERAL PHYSICAL
|
||
|

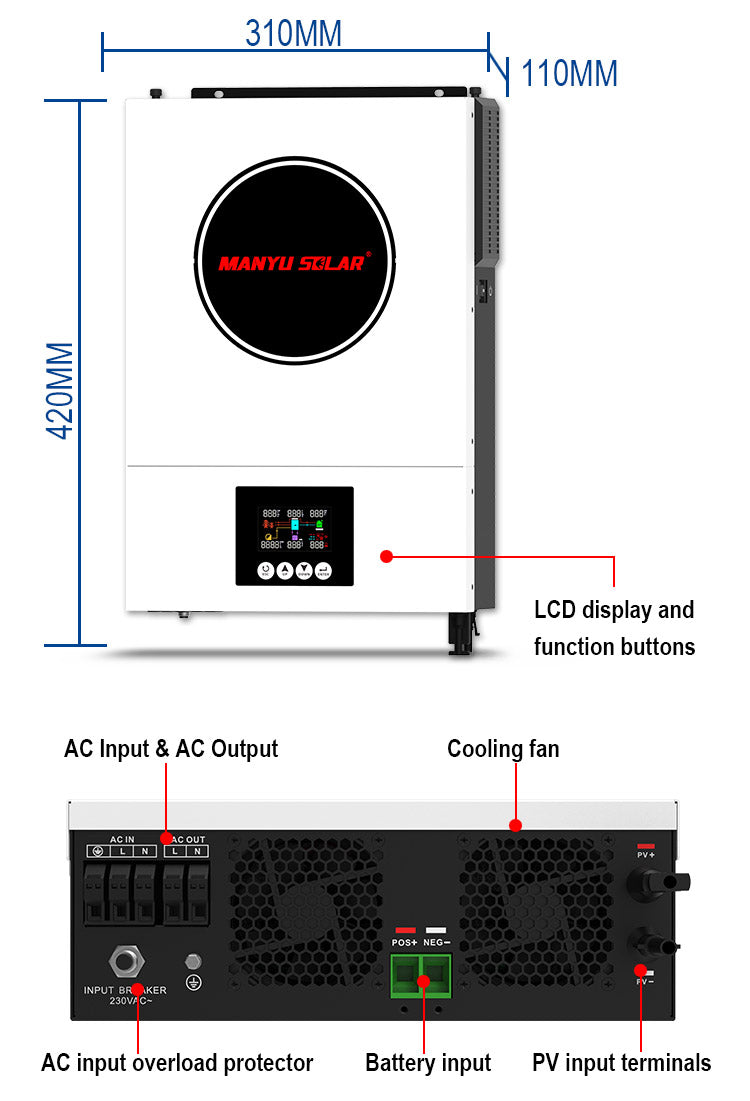

Dimension,D x W x H(mm)
|
420*310*110
|
|
|
Net Weight(kgs)
|
10
|
11
|
|
INTERFACE
|
||
|
Communication Port
|
RS232/WIFI/BMS
|
|
|
ENVIRONMENT
|
||
|
Humidity
|
0~90%
|
|
|
Operating Temperature
|
-10 to 50℃
|
|
Answers to questions you are concerned about
What kind of store is this
We are a group factory which is specializing in the production of inverters and solar panels. We have 19 years of production experience till now. Our products are sold worldwide,Especially in Europe,Southeast Asia,South America,North America,Africa,Middle East and other countries,support OEM and ODM for small quantities.Looking forward to be your partner.
About the freight
Due to the purchase quantity and the shipping cost of each country will be different, if you are not in the shipping country Iist, the shipping cost will show $9999, please don't worry, please contact us through Inbox or email, we will confirm and give you the best price
When will it be shipped after placing an order
Dear, after you place an order, we will contact you by email or Inbox. Normally, if it is in stock, we will ship it to you at the next day, and the tracking number will be uploaded two days later.
Is there a warranty on my purchase?
All of our products will have a warranty, and the warranty period is different for products.The inverter is guaranteed for 1-2 years, the solar panel is guaranteed for 10-25 years, and the battery is guaranteed for 3-5 years. If you have any questions, please contact us here or email,we will reply to you immediately.
We are a solar inverter manufacturing factory with mature products and OEM for major brands
- Please Contact us -
-
About delivery
After you place an order and pay, we will contact you by email or Inbox in time to tell you the specific delivery time. Normally, the products sold are still on the next day, and the delivery will start. The tracking number will be issued after delivery. Submit it to your email or store in about 2 days. You can contact us after you place an order, or you can wait patiently for a few days. Thank you for your understanding
-
About Warranty
The company's products provide quality assurance, inverter products are guaranteed for one year, solar packs are guaranteed for 3-5 years, batteries are guaranteed for 1-5 years, please contact us for details
Users of all warranty products are not allowed to disassemble the machine without permission. We have the right to refuse the warranty if we disassemble the machine without permission. If you find that the product is faulty, please contact us and we will give you a satisfactory solution. -
About Customization
All products of the company support customization. The customized content includes logo, product appearance, product outer packaging, and other customized services and individual customized product functions. Customization needs to reach a certain minimum order quantity. Welcome to contact us
About us
Shenzhen manyu Smart Energy Electric Co., Ltd. is a high-tech enterprise integrating research and development, production, sales and service of solar modules, inverters, solar systems, solar application products, and photovoltaic electrical products.
