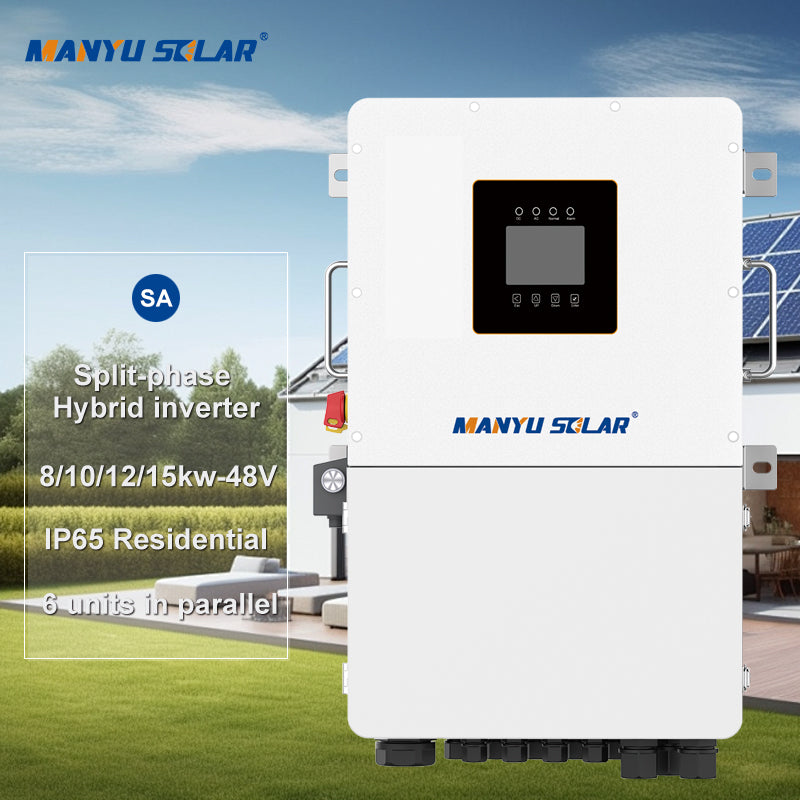

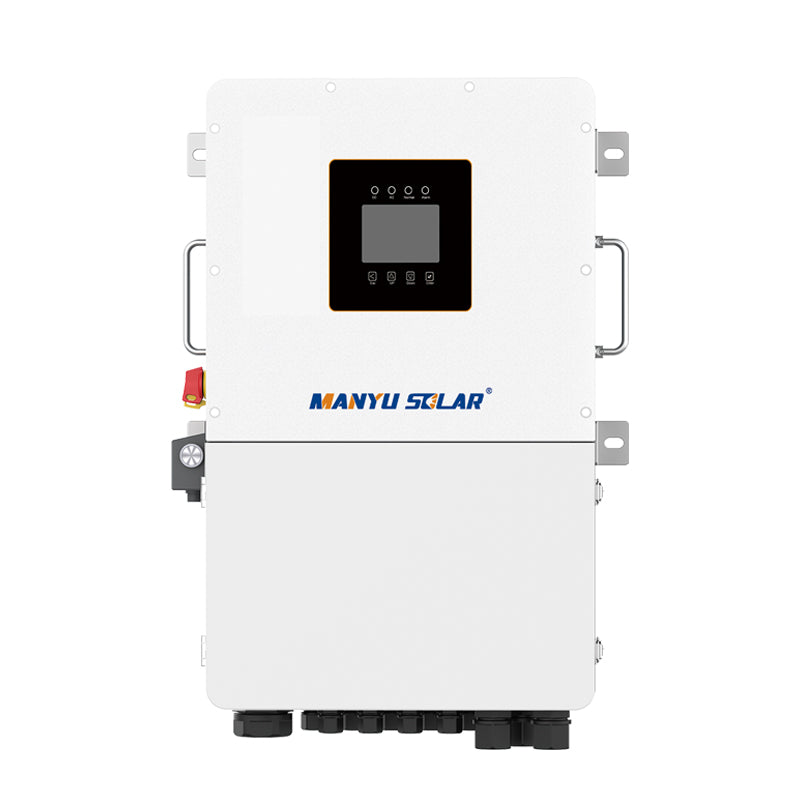

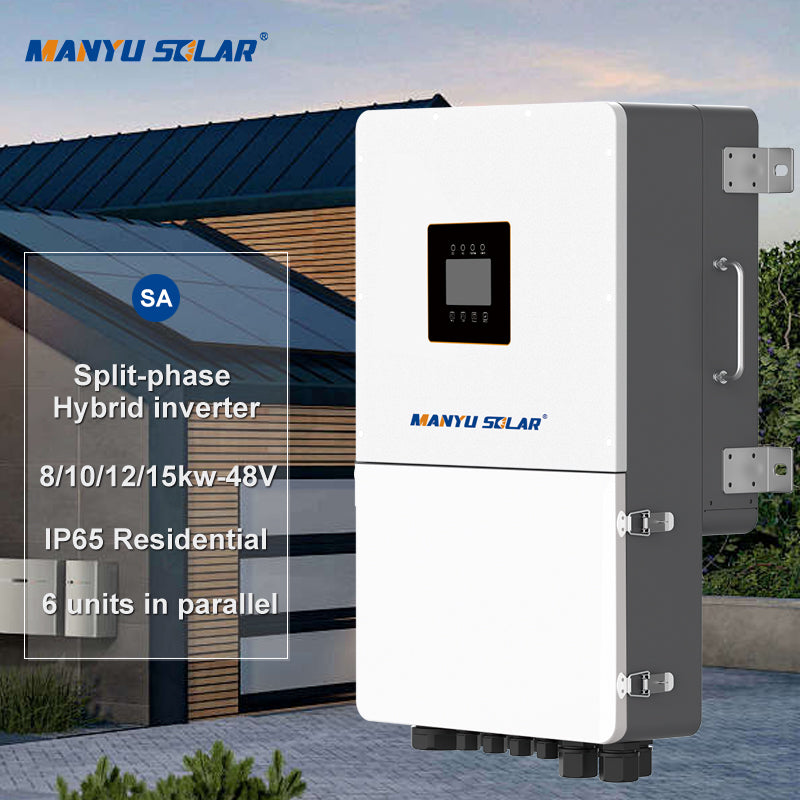

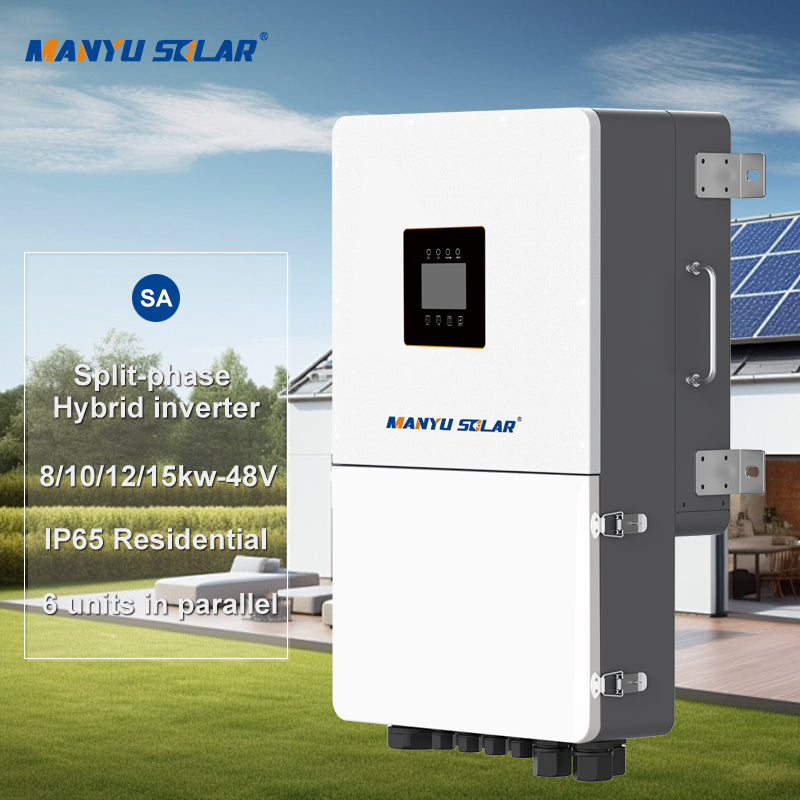

8KW 10 12 15KW Hybrid Solar Inverter Split Phase Inverter on Grid and Off Grid ESS Commercial Energy Storage System
8KW 10 12 15KW Hybrid Solar Inverter Split Phase Inverter on Grid and Off Grid ESS Commercial Energy Storage System
Couldn't load pickup availability
①.275A Max Charge/Discharge for Heavy Loads.
②.<10ms UPS-Level Switching for Backup Power batteries.
③.DualAC Ports: Grid & Generator /Smart Load with Programmable Control.
④.3-Phase Support Parallel up to 6 Units.
⑤.AC-Coupling Ready Retrofit Without Rebuild.
⑥.Rugged NEMA 4X Enclosure for Enhanced Durability.
|
Model
|
MY-HL8K-P2SA
|
MY-HL10K-P2SA
|
MY-HL12K-P2SA
|
MY-HL15K-P2SA
|
|
AC Input/Output (Grid Side)
|
||||
|
Rated Power
|
8 kW
|
10 kW
|
12 kW
|
15 kW
|
|
Rated Voltage
|
120 V a.c. / 240 V a.c. (Split Phase), 208 V a.c. (2/3 Phase)
|
|||
|
Rated Frequency
|
50 Hz / 60 Hz
|
|||
|
Power Factor Range
|
0.8 Leading ~ 0.8 Lagging
|
|||
|
Switching Time
|
<10 ms
|
|||
|
Current Input/Output (Max Continuous)
|
33.4 A a.c.
|
41.7 A a.c.
|
50 A a.c.
|
62.5 A a.c.
|
|
Max Output Overcurrent Protection
|
250 V a.c / 125 A a.c
|
|||
|
Battery
|
||||
|
Battery Type
|
Lithium/Lead Acid
|
|||
|
Battery Voltage Range
|
40 ~ 60 V d.c.
|
|||
|
Battery Rated Voltage
|
51.2 V d.c.
|
|||
|
Max Charging Current
|
167 A dc
|
210 A d.c.
|
250 A d.c.
|
275 A d.c.
|
|
Max Discharging Current
|
167 A d.c.
|
210 A d.c.
|
250 A d.c.
|
275 A d.c.
|
|
Reverse Connection Protection
|
Supported
|
|||
|
DC Input
|
||||
|
MPPT Quantity/Number of Strings per MPPT
|
2 / 2+2
|
3 / 2+2+2
|
3 / 2+2+2
|
3 / 2+2+2
|
|
Max DC Input Power
|
12 kW
|
15 kW
|
18 kW
|
22.5 kW
|
|
Max Open Circuit Voltage
|
525 V d.c.
|
|||
|
MPPT Voltage Range
|
120 ~ 500 V d.c.
|
|||
|
Startup Voltage
|
100 V d.c.
|
|||
|
Max DC Input Current
|
26 +2+++6 +26 A d.c.
|
|||
|
Max DC Short Circuit Current
|
39 A d.c.
|
|||
|
AC Output (Off-grid Side)---
|
||||
|
Rated Output Voltage
|
120 V a.c. / 240 V a.c. (Split Phase), 208 V a.c. (2/3 Phase)
|
|||
|
Rated Output Frequency
|
50 Hz / 60 Hz
|
|||
|
Rated Output Power
|
8 kW
|
10 kW
|
12 kW
|
15 kW
|
|
Rated Output Apparent Power
|
8 kVA
|
10 kVA
|
12 kVA
|
15 kVA
|
|
Rated Output Current
|
33.4 A a.c.
|
41.7 A a.c.
|
50 A a.c.
|
62.5 A a.c.
|
|
Overload Capability (Off-grid Side)
|
200% 10 seconds
|
|||
|
Efficiency
|
||||
|
MPPT Efficiency
|
99.90%
|
|||
|
California Weighted Efficiency
|
96.50%
|
|||
|
Max Efficiency
|
97.50%
|
|||
|
Protection and Features
|
||||
|
Insulation Monitoring
|
Supported
|
|||
|
Remaining Capacity Monitoring
|
Supported
|
|||
|
Parallel Function
|
Supported 6 pcs
|
|||
|
Protection Level
|
IP65
|
|||
|
Certifications
|
IEEE1547, CA RULE21, HECO SRD V2.0, U11741, UL1741 SA/SB, CSA C22.2, UL1699B.
|
|||
|
Other Protections
|
Overload Protection, Overtemperature Protection, Short Circuit Protection, Active Anti-Islanding
|
|||
|
General Parameters
|
||||
|
Storage Temperature
|
-25°C ~ +60°C (-13°F ~ +140°F)
|
|||
|
Operating Temperature
|
-25°C ~ +60°C (-13°F ~ +140°F), > +45°C (+113°F) Derate to 60%
|
|||
|
Humidity
|
0 ~ 95% (Non-condensing)
|
|||
|
Operating Altitude
|
4000 m (> 2000 m Derate)
|
|||
|
Noise Level
|
<45 dB
|
|||
|
Machine Dimensions (Width/Height/Depth)
|
450° 700' 240 mm (17.72' 27.56' 9.45 inches)
|
|||
|
Machine Weight/Net Weight
|
45 kg (99.21 lbs)
|
|||
|
Display and Communication
|
||||
|
Display
|
LED + APP
|
|||
|
Communication interface
|
RS485 / WiFi / CAN (Optional: Bluetooth / LAN / 4G / Meter)
|
|||
