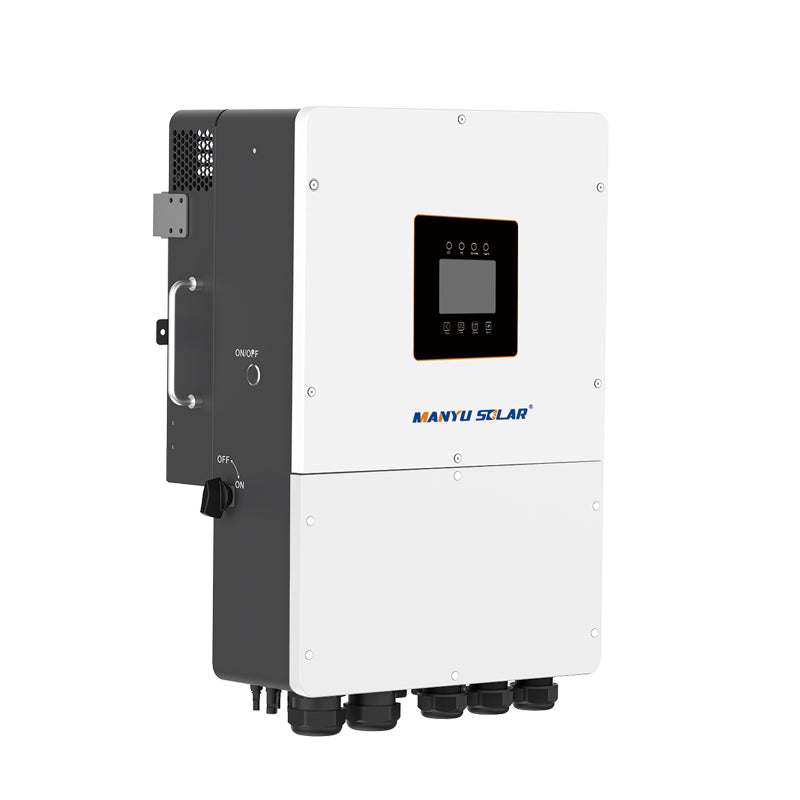

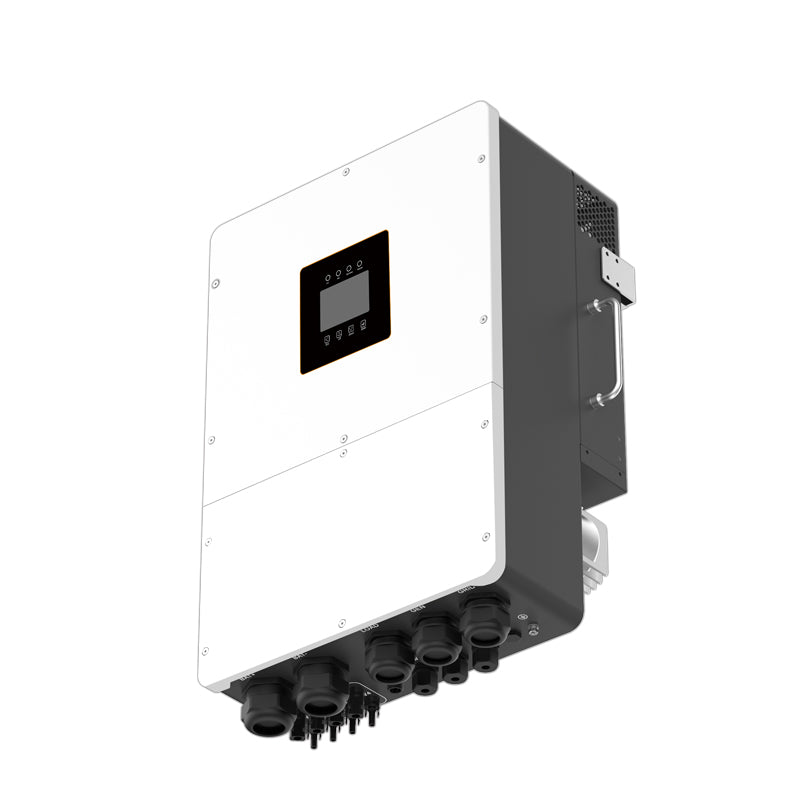

8 12 15 20KW Three Phase Low Voltage 48V Hybrid Inverter 24KW Industrial Solar Power Energy Storage Inverter with Dual MPPT

8 12 15 20KW Three Phase Low Voltage 48V Hybrid Inverter 24KW Industrial Solar Power Energy Storage Inverter with Dual MPPT

$1,382.00 USD
$1,382.00 USD
Sale Sold out
Shipping calculated at checkout.
Hybrid inverter

①.Extreme Climate Adaptability  Full-load operation, 45°C without derating.

②.High Battery Compatibility Max.50oA charge/discharge,supports three battery inputs.

 ③.Wide Grid Adaptability 154V-286Vinput,50/60Hzauto-adaptation, built-in SPD.

④.High Surge & Unbalanced Output 2x load surge for 10s,150% three-phase unbalanced output.

⑤.SiC +FullAluminum +IP66 High efficiency, lightweight,IP66 protection.

⑥.Flexible System Expansion Up to 8 units parallel,supports AC coupling for retrofit.

TECHNICAL SPECIFICATION
Model
MY-HL8K-P3EU
MY-HL10K-P3EU
MY-HL12K-P3EU
MY-HL15K-P3EU
MY-HL18K-P3EU
MY-HL20K-P3EU
MY-HL24K-P3EU
INVERTERINPUT/OUTPUT (GRID)
Rated power (kW)
8/8
10/10
12/12
15/15
18/18
20/20
24/24
Rated voltage
380/400Va.c.,3W+N+PE
Rated Frequency (Hz)
50/60
PowerfactorRange
0.8 leading~0.8 lagging
Switch Time (ms)
<20
Current (Maximum Continuous) (A a.c.)
24/12
29/15
35/17
43/22
52/26
58/29
60/35
Max Output Overcurrent Protection
400Va.c./100Aa...
BATTERY
Batery Type
Lithium /Lead-acid
Battery voltage Range (v d.c.)
40~60
Rated Battery Voltage (v d.c)
51.2






Max Charge Current (A d.c.)
200
250
280
375
430
450
500
Max Discharge Current (A d.c.)
200
250
280
375
430
450
500
PV INPUT
No. of MppT Tracker/ Strings
2/2+2
Max. PV Array Power(kw)
16
20
24
30
36
40
48
Max DC Voltage (v d.c.)
1000
MPpT Voltage Range (v d.c.)
150~950vd.c.
Startup Voltage (v d.c.)
180
Max. input Current (A d.c.)
4*20
isc pv (Absolute Maximum) (A d.c.)
4*30
AC OUTPUT(EPS)
EPs Rated output voltage
380 /400 V a.,3W+N+PE
EPS Rated output Frequency (Hz)
50/60
EPS Rated output Active power (kw)
8
10
12
15
18
20
24
EPS Rated Output Apparent power (kVA)
8
10
12
15
18
20
24
EPS Rated Output Current (A a.c.)
12
15
17
22
26
29
35
Overload Capacity (0f Grid)
200% 10S
EFFICIENCY
MPPT Eficiency
99.90%
Euro-efficiency
97.00%
97.20%
Max. Efficiency
97.50%
98.00%
PROTECTION&FEATURE
Insulation Monitoring
Yes
Residual Current Monitoring
Yes
Parallel function
Yes
Protection Degree
IP66
Certiftcations
ENIEC 62477-1,EN IEC62109-1/2,ENIEC61000-6-2,ENIEC61000-6-4,EN50549-1/10
Other Protection
Output over voltage, Output over current, short circuit, Surge, Temperature, Anti-lslandmg
GENERAL PARAMETER
Storage Temperature
-25°C~ +60°C
Operating Temperature
-25°C ~+60"C (Linely derating to 60% when exceed +45°C ~ +60°C)
Humidity
0-95%(Non-condensing)
Altitude(m)
4000(>2000 Derating)
Noise (dB)
<40
<45
Machine Dimension(W*H*D) (mm)
448*660*265
Machine weight / N .w. (kg)
35
40
DISPLAY& COMMUNICATION
Display
LCD+APP
Interface
RS485 / WiFi / CAN / DRM (Optional:Bluetooth / LAN /Meter)
