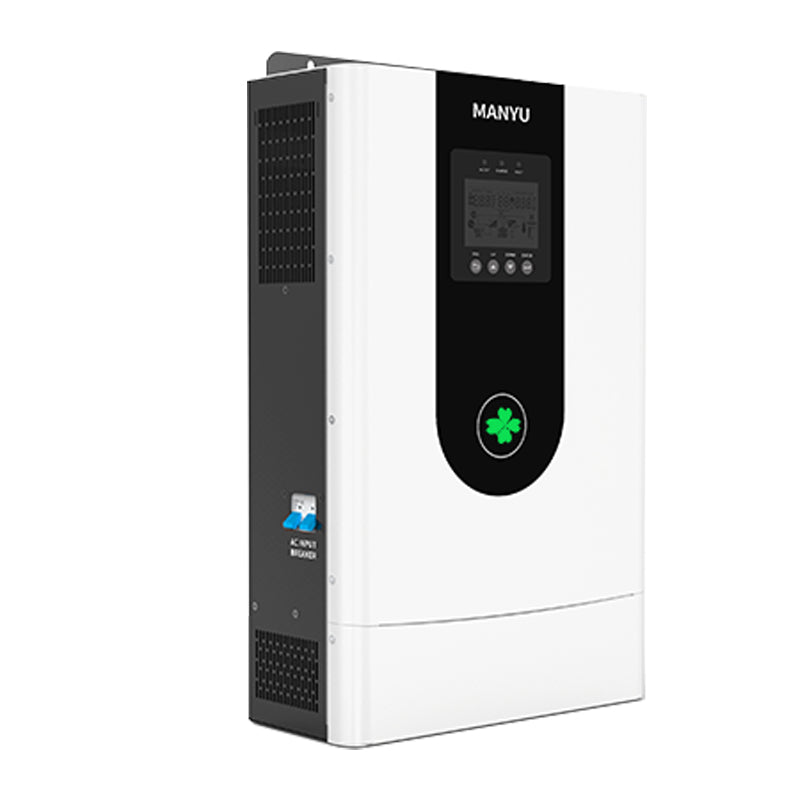

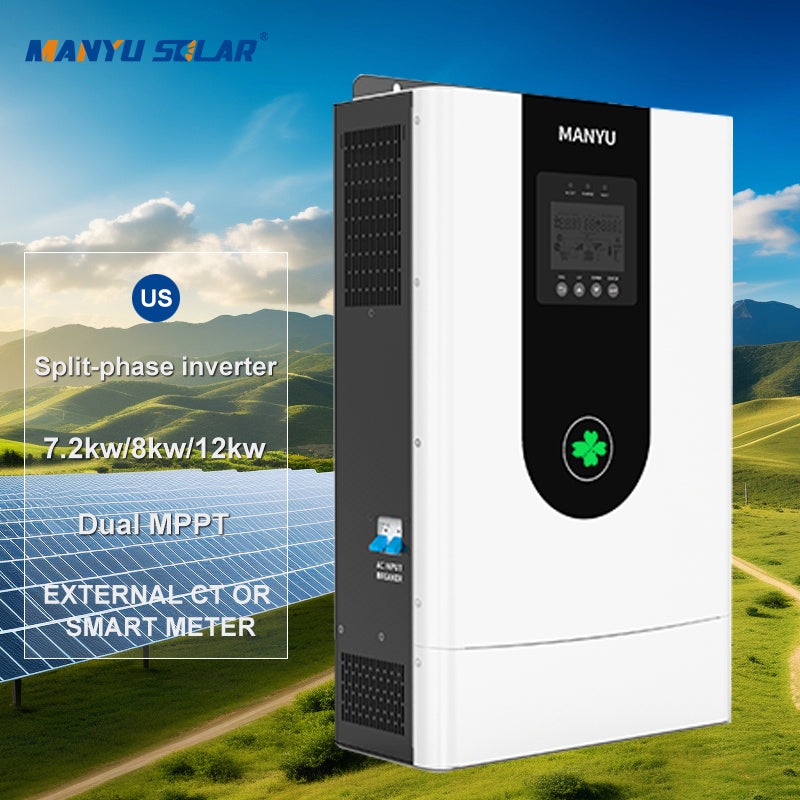

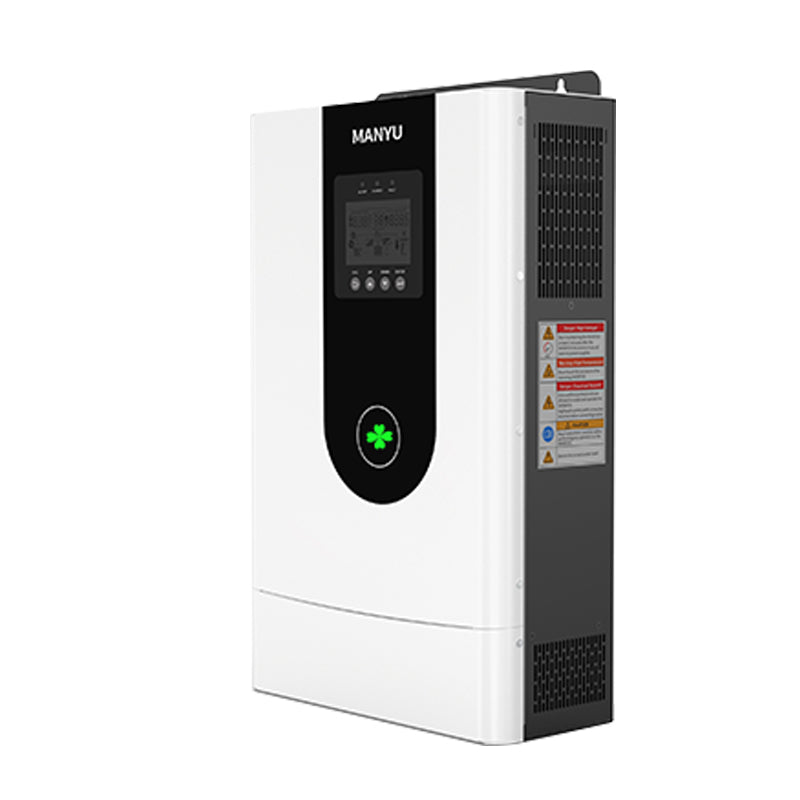

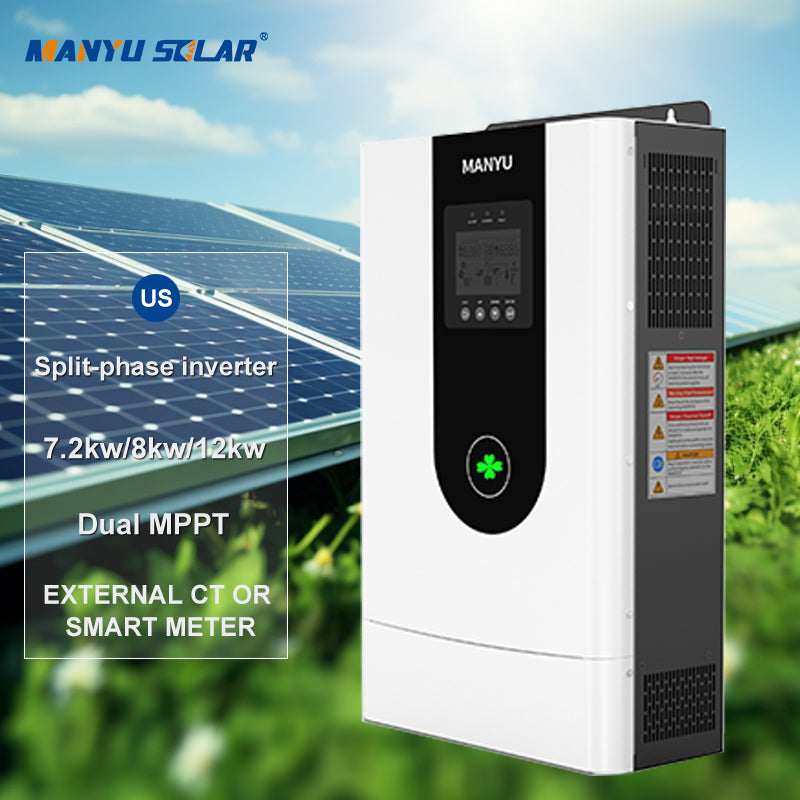

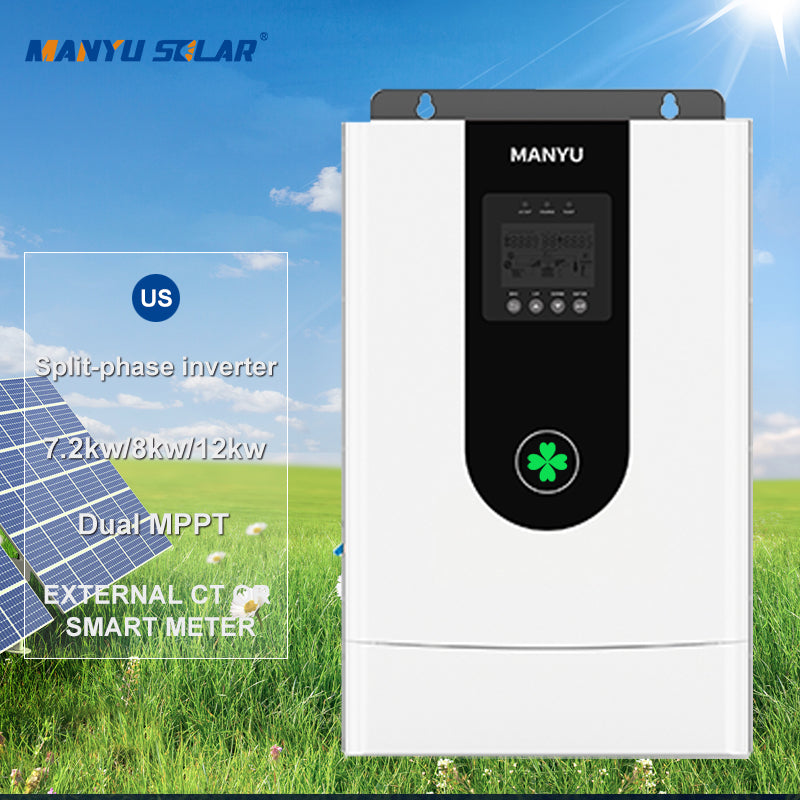

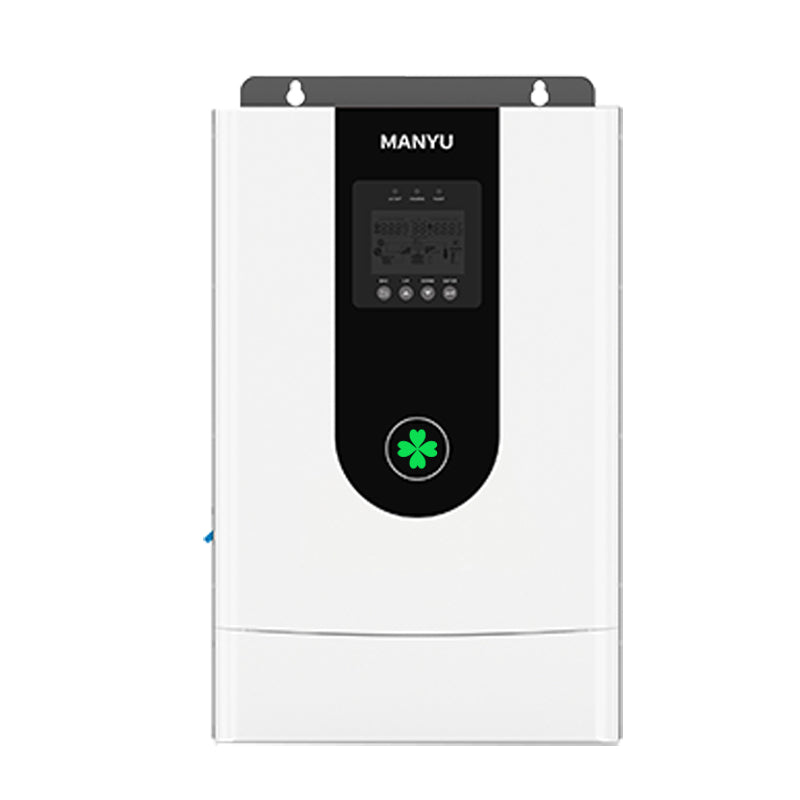

7.2kw 12kw10KW Parallel Inverter Hybrid Inverter with Lithium Battery Solar Energy Storage Split Phase Inverter 120V 240V
7.2kw 12kw10KW Parallel Inverter Hybrid Inverter with Lithium Battery Solar Energy Storage Split Phase Inverter 120V 240V
Couldn't load pickup availability
①.It has the function of sectional charge and discharge (can set the time period for battery charging or discharging).
②.Anti feed-in, self-consumption function (can be hybrid power supply from solar, battery and grid).
③.Full digital voltage and current double closed loop control, advanced SPWM technology, output of pure sine wave; support split-phase and single-phase pure sine wave output; Supports five different voltage levels of 100Vac, 105Vac, 110Vac,120Vac , 127Vac per phase.
④.Diverse human-computer interaction: support CAN, USB, WiFi and RS485 communication, local and remote power on or off, dry contact control.
⑤.Can be extended: external CT or smart meter for whole house energy anti feed-in and self-consumption.
⑥.Supports two independent MPPTs, advanced MPPT technology with a trackingefficiencyof99.9%.
|
model
|
MY-US7.2K-48VP
|
MY-US10K-48VP
|
MY-US12K-48VP
|
|
Inverter output
|
|||
|
Rated output power
|
8000W/8000VA
|
10000W/10000VA
|
12000W/12000VA
|
|
Maximum peak power
|
12000VA
|
15000VA
|
18000VA
|
|
Overload protection
|
(102%< load <110%)±10%: error is reported and the output is turned off after 5 minutes ;
|
||
|
(110%< load <125%)+10%: error is reported and the output is turned off after 10 seconds.
|
|||
|
Load >125%±10%: error is reported and the output is turned off after 5 seconds .
|
|||
|
Rated output voltage
|
120Vac/240Vac (L1/L2/N/PE split phase)
|
||
|
Rated output frequency
|
50Hz/60Hz
|
||
|
Output waveform
|
Pure sine wave
|
||
|
Switching time
|
10ms typical
|
||
|
Battery Input
|
|||
|
Battery Type
|
Lithium iron phosphate battery / ternary lithium battery
|
||
|
Rated battery voltage
|
51.2Vdc
|
||
|
Maximum voltage range
|
40-60Vdc ( depending on the customer's battery voltage range, the maximum cannot exceed this range )
|
||
|
Maximum AC / generator charging current
|
100A
|
120A
|
160A
|
|
Maximum hybrid charging current
|
180A
|
200A
|
220A
|
|
Photovoltaic input
|
|||
|
MMPT number of channels
|
2
|
||
|
Photovoltaic input power
|
5500w*2
|
||
|
Input Current
|
16A*2
|
||
|
Open circuit voltage
|
500V
|
||
|
Voltage range
|
100v-450V
|
||
|
Electricity / Generator Input
|
|||
|
Phase input voltage range
|
90-140Vac/90-140Vac(L1/L2/N/PE split phase)
|
||
|
Input frequency range
|
50/60Hz
|
||
|
Bypass overload current
|
63A
|
||
|
efficiency
|
|||
|
Battery inverter maximum efficiency
|
>92%
|
||
|
Basic parameters
|
|||
|
size
|
650*450*150mm
|
||
|
Protection level
|
IP20
|
||
|
Ambient temperature
|
-15~55℃, >45℃ derating
|
||
|
noise
|
<60dB
|
||
|
Cooling method
|
Forced air cooling
|
||
|
Communications
|
|||
|
External interface of the whole machine
|
RJ45, CT terminal
|
||
|
External interface
|
RS485-1/RS485-2/RS485-3/ Dry contact
|
||
|
Safety
|
IEC62109-1,IEC62109-2,UL1741
|
||
|
EMC
|
EN61000-6-1, EN61000-6-3, FCC 15 class B
|
||
|
RoHS
|
have
|
||
