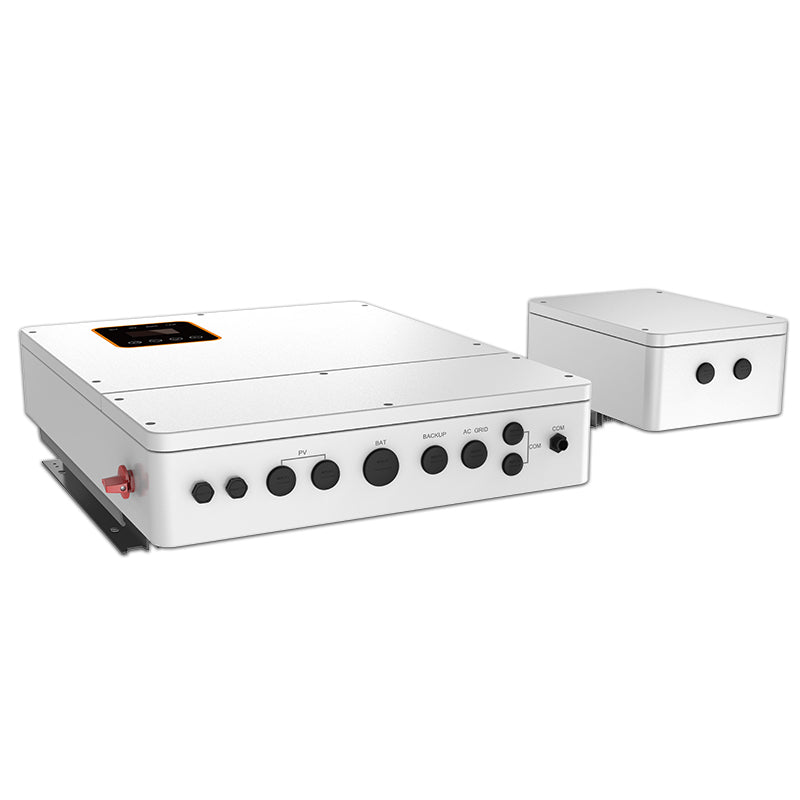

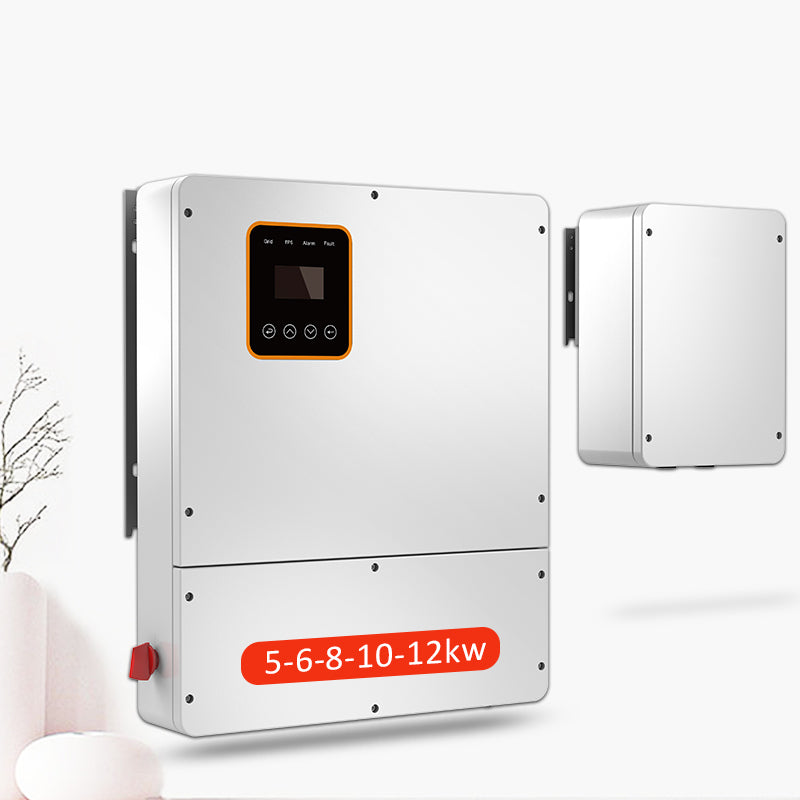

6/8/10/12kw Parallel Hybrid Off Grid Grid Tie Inverter split phase Inverter 120 240v Solar Inverter
6/8/10/12kw Parallel Hybrid Off Grid Grid Tie Inverter split phase Inverter 120 240v Solar Inverter
Couldn't load pickup availability
Safe & reliable

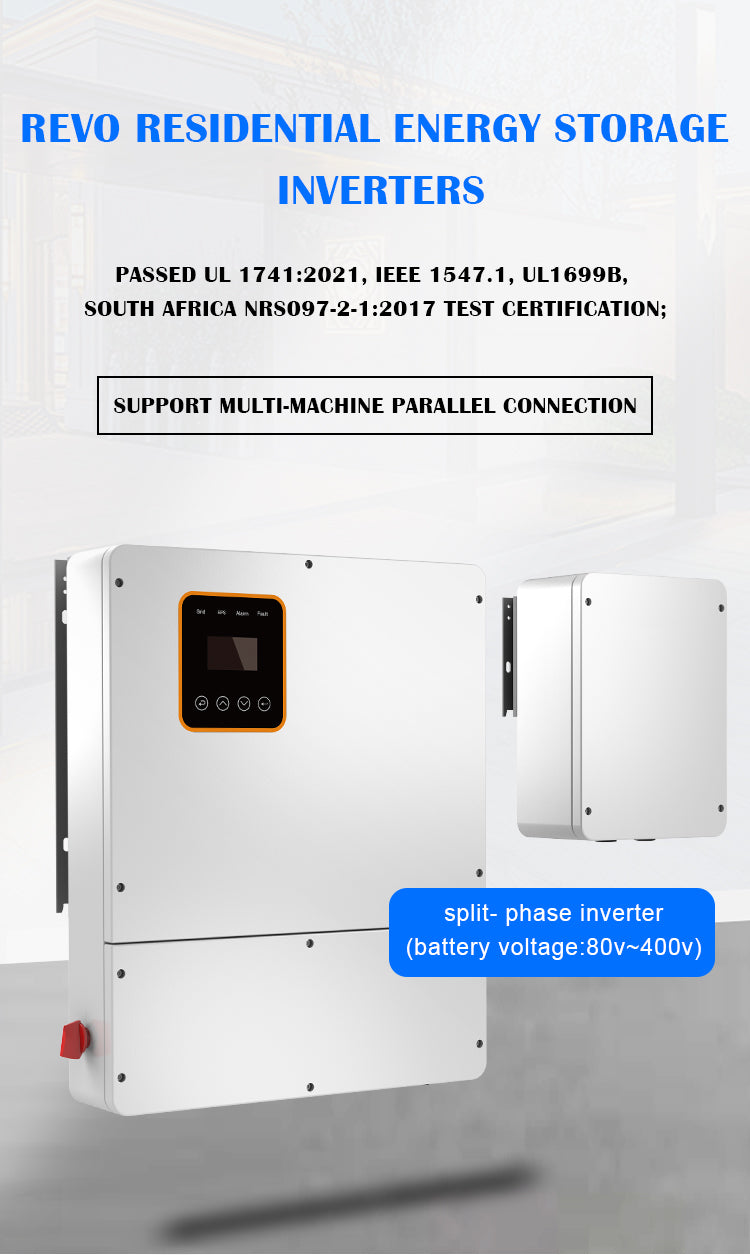

• Passed UL 1741:2021, IEEE 1547.1, UL1699B test certification; With over-voltage, over-current, over-temperature
protection, compatible with anti-zero export function;

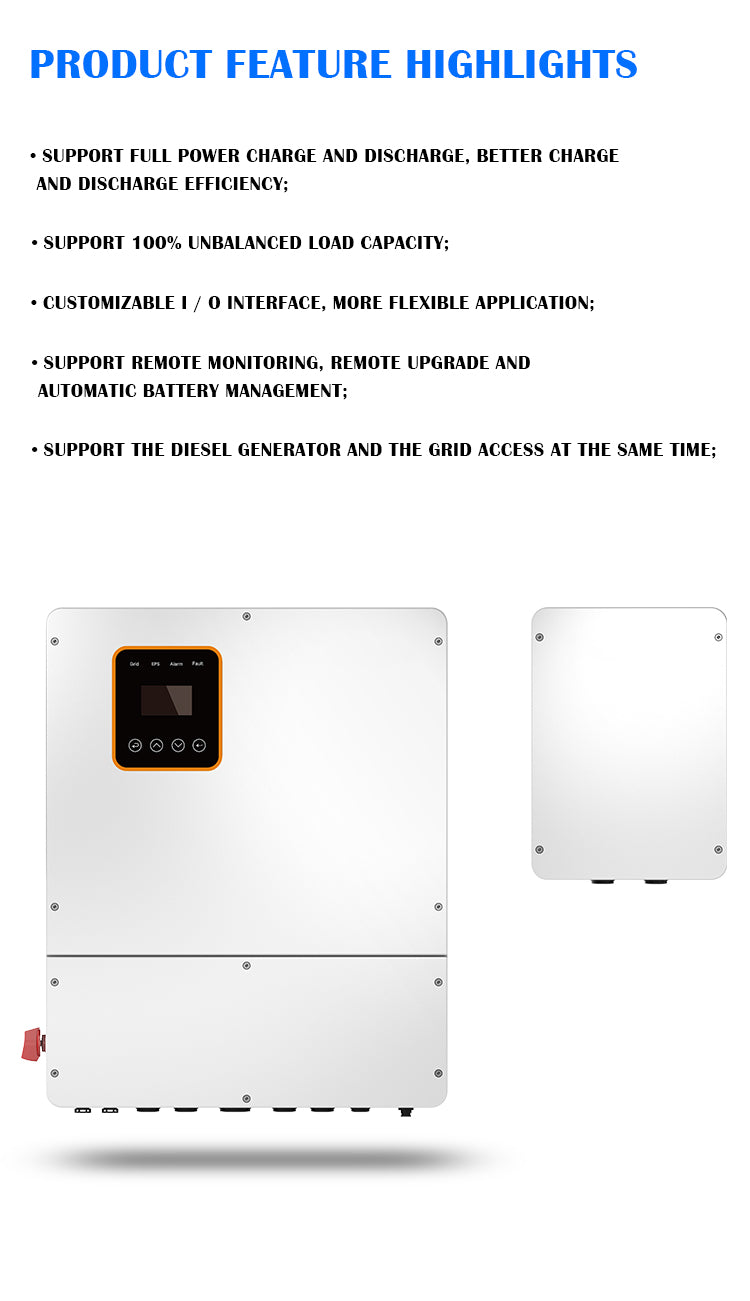

Flexible & efficient
• Support full power charge and discharge, better charge
and discharge efficiency;
• Support 100% unbalanced load capacity;
Intelligent & friendly
• Customizable I / O interface, more flexible application;
• Support remote monitoring, remote upgrade and
automatic battery management;
|
Technical specification
|
MYR6KH1NA
|
MYR8KH1NA
|
MYR10KH1NA
|
MYR12KH1NA
|
|
Input (PV)
|
||||
|
Max. power(kW)
|
7.8
|
10.4
|
13
|
15.6
|
|
Max. DC voltage(V)
|
500
|
|||
|
MPPT voltage range(V)
|
125 - 500
|
|||
|
Max.Input current of single MPPT(A)
|
12
|
|||
|
MPPT tracker/strings
|
4/1
|
|||
|
AC output
|
||||
|
Rated output power(kVA)
|
6
|
8
|
10
|
12
|
|
Max. output current(A)
|
27.3
|
36.4
|
45.5
|
50
|
|
Grid voltage/range(V)
|
240/211~264
|
|||
|
Frequency (Hz)
|
50/60
|
|||
|
PF
|
0.8lagging-0.8leading
|
|||
|
THDi
|
< 3%
|
|||
|
AC output topology
|
L+N+PE
|
|||
|
Battery
|
||||
|
Battery voltage range(V)
|
85~400
|
|||
|
Full battery voltage(V)
|
85
|
110
|
140
|
160
|
|
Max. charge/discharge current(A)
|
80/80
|
|||
|
Battery type
|
lithium /Lead-acid
|
|||
|
Communication Interface
|
CAN,RS485
|
|||
|
EPS output
|
||||
|
Rated power(kVA)
|
6
|
8
|
10
|
12
|
|
Rated output voltage(V)
|
220-240 /110-120
|
|||
|
Rated frequency(Hz)
|
50/60
|
|||
|
Automatic switching time(ms)
|
<20
|
|||
|
THDu
|
< 2%
|
|||
|
Overload capacity
|
110%,30S/120%,10S/150%,0.02S
|
|||
|
General data
|
||||
|
Max. efficiency
|
≥98.2%
|
|||
|
CEC efficiency
|
≥97.2%
|
|||
|
Ingress protection
|
IP65/NEMA 3R
|
|||
|
Noise emission(dB)
|
<25
|
<25
|
<29
|
<29
|
|
Operation temperature
|
-25℃～60℃
|
|||
|
Cooling
|
Natural
|
|||
|
Relative humidity
|
0 ~95%（non-condensing）
|
|||
|
Altitude
|
2,000m(>2,000 Derating)
|
|||
|
Weight(kg)
|
32
|
|||
|

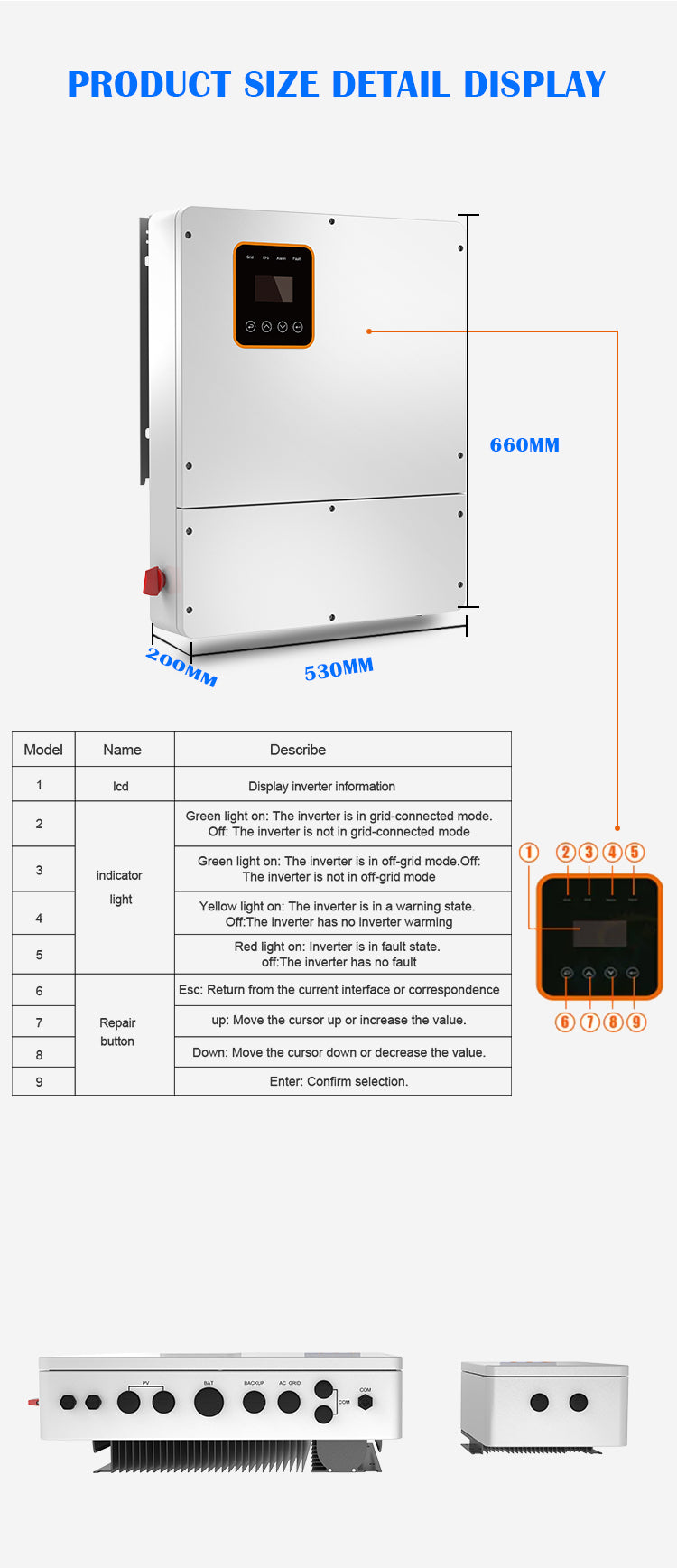

Dimensions W*D*H (mm)
|
530* 200* 660
|
|||
|
Display and communication
|
||||
|
Display
|
LCD
|
|||
|
Interface:RS485/Wifi/4G/
CAN/DRM |
Yes/ Opt/ Opt/ Yes/ Yes
|
|||
|
Standby power consumption
at night(W) |
< 2.5 (With the battery < 5 )
|
|||
|
Isolation transformer
|
Yes
|
|||
|
Safety standard
|
UL1741SA all options, UL1699B, CSA 22.2
|
|||
|
EMC
|
FCC Part 15, Class B
|
|||
|
On-grid
|
IEEE 1547, IEEE 2030.5, Hawaii Rule 14H, Rule 21 Phase I,II,III
|
|||
Answers to questions you are concerned about
What kind of store is this
We are a group factory which is specializing in the production of inverters and solar panels. We have 19 years of production experience till now. Our products are sold worldwide,Especially in Europe,Southeast Asia,South America,North America,Africa,Middle East and other countries,support OEM and ODM for small quantities.Looking forward to be your partner.
About the freight
Due to the purchase quantity and the shipping cost of each country will be different, if you are not in the shipping country Iist, the shipping cost will show $9999, please don't worry, please contact us through Inbox or email, we will confirm and give you the best price
When will it be shipped after placing an order
Dear, after you place an order, we will contact you by email or Inbox. Normally, if it is in stock, we will ship it to you at the next day, and the tracking number will be uploaded two days later.
Is there a warranty on my purchase?
All of our products will have a warranty, and the warranty period is different for products.The inverter is guaranteed for 1-2 years, the solar panel is guaranteed for 10-25 years, and the battery is guaranteed for 3-5 years. If you have any questions, please contact us here or email,we will reply to you immediately.
We are a solar inverter manufacturing factory with mature products and OEM for major brands
- Please Contact us -
-
About delivery
After you place an order and pay, we will contact you by email or Inbox in time to tell you the specific delivery time. Normally, the products sold are still on the next day, and the delivery will start. The tracking number will be issued after delivery. Submit it to your email or store in about 2 days. You can contact us after you place an order, or you can wait patiently for a few days. Thank you for your understanding
-
About Warranty
The company's products provide quality assurance, inverter products are guaranteed for one year, solar packs are guaranteed for 3-5 years, batteries are guaranteed for 1-5 years, please contact us for details
Users of all warranty products are not allowed to disassemble the machine without permission. We have the right to refuse the warranty if we disassemble the machine without permission. If you find that the product is faulty, please contact us and we will give you a satisfactory solution. -
About Customization
All products of the company support customization. The customized content includes logo, product appearance, product outer packaging, and other customized services and individual customized product functions. Customization needs to reach a certain minimum order quantity. Welcome to contact us
About us
Shenzhen manyu Smart Energy Electric Co., Ltd. is a high-tech enterprise integrating research and development, production, sales and service of solar modules, inverters, solar systems, solar application products, and photovoltaic electrical products.
