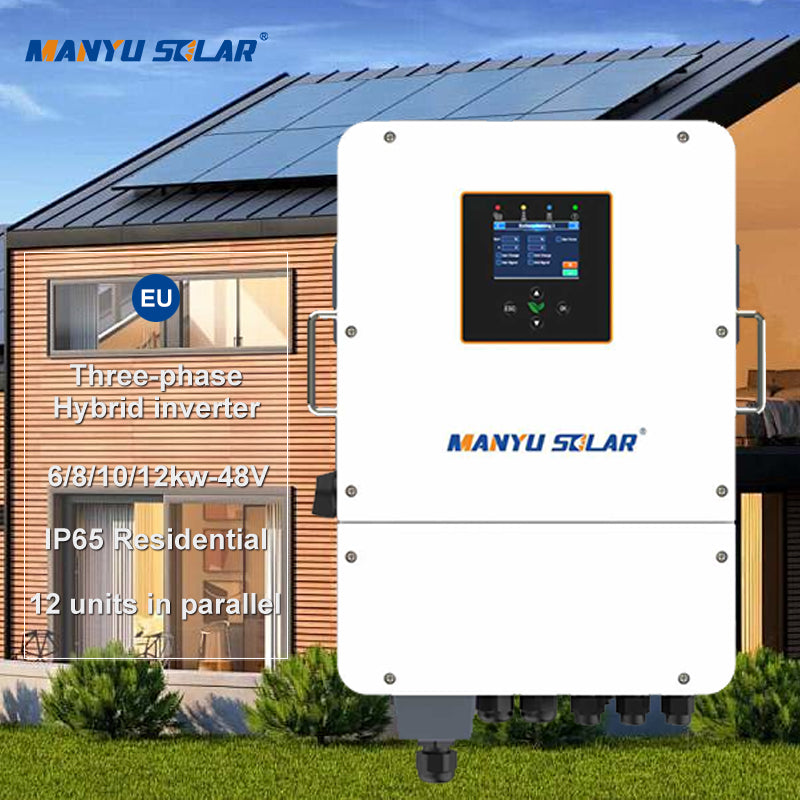

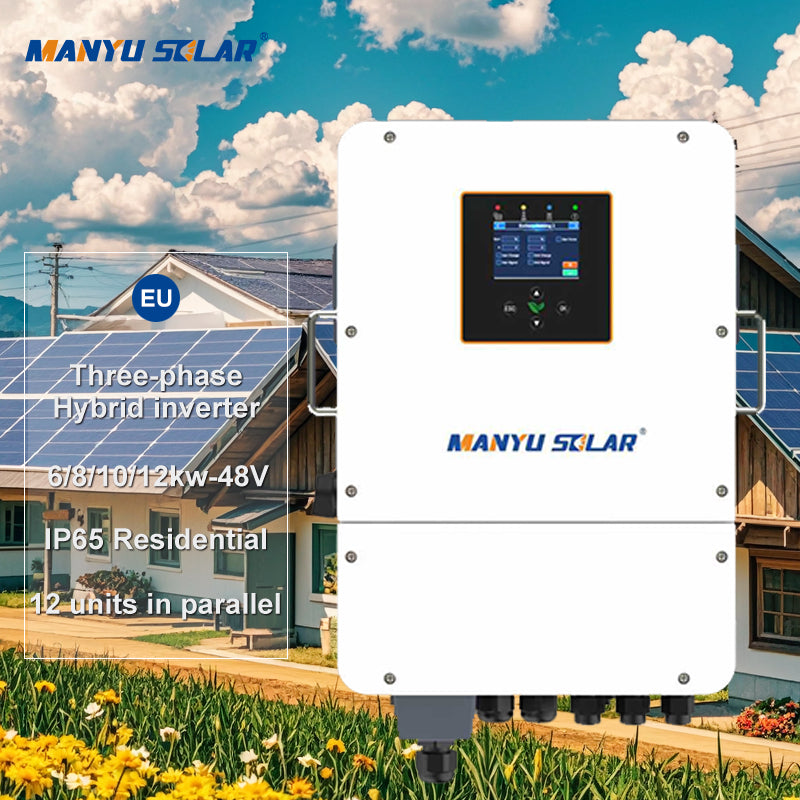

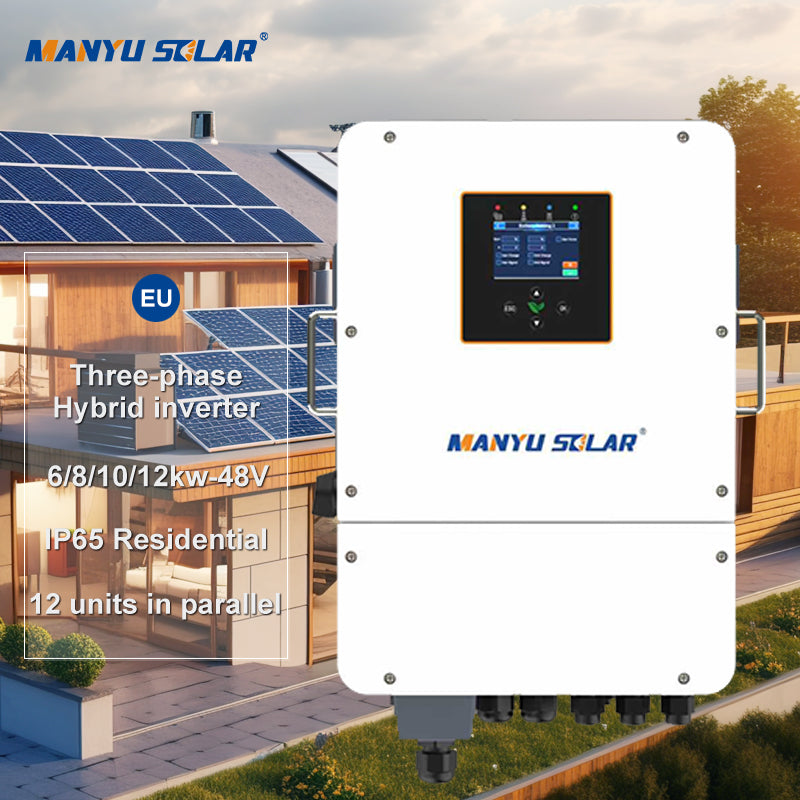

6 8 10 12kw 48V Home Hybrid Solar Inverter 3 Phase on Off Grid Energy Storage IP65 Wifi Home String Inverter Parallel
6 8 10 12kw 48V Home Hybrid Solar Inverter 3 Phase on Off Grid Energy Storage IP65 Wifi Home String Inverter Parallel
Couldn't load pickup availability
①.Supports up to 12 units in parallel operation, meeting the demands of small-scale industrial and commercial energy storage applications.
②.Compatible with diesel generators for battery charging and load power supply.
③.Grid-to-off-grid switching time is less than 10 ms,ensuring uninterrupted power supply to critical equipment.
④.High system efficiency with intelligent air-cooling to prolong overall service life.
⑤.Allows configuration of up to 6 battery charging time periods and cut-off thresholds.
⑥.Integrated communication interfaces including RS485, CAN, and WiFi (via App/PC Cloud monitoring).
⑦.Supports maximum power charging and discharging modes.
⑧.Smart load management, CT sensing, ATS support,and optional GPRS module for remote connectivity.
|
Model
|
6K
|
8K
|
10K
|
12K
|
|
Battery Input Data
|
||||
|
Battery Type
|
Lead-acid or Li-ion
|
|||
|
Battery Voltage Range(V)
|
40~60
|
|||
|
Max. Charging Current(A)
|
120
|
160
|
220
|
240
|
|
Max. Discharging Current(A)
|
120
|
160
|
220
|
240
|
|
External Temperature Sensor
|
yes
|
|||
|
PV String Input Data
|
||||
|
Max DC input Power(W)
|
7800
|
10400
|
13000
|
15600
|
|
PV Input Voltage(V)
|
550(160-800)
|
|||
|
MPPT Range(V)
|
160
|
|||
|
Full Load DC Voltage Range
|
200-650
|
|||
|
Start-up Voltage(V)
|
350-650
|
|||
|
PV input Current(A)
|
13+13
|
26+13
|
||
|
Max.PV Isc(A)
|
17+17
|
34+17
|
||
|
No. of MPPT Trackers
|
2
|
2
|
||
|
Number of Strings per MPPT Tracker
|
1+1
|
1+1
|
||
|
AC input/Output Data
|
||||
|
Rated AC Output and UPS Power(W)
|
6000
|
8000
|
10000
|
12000
|
|
Max. AC Output Power(VA)
|
6600
|
8800
|
11000
|
13200
|
|
Peak Power(off grid)
|
2 times of rated power, 10S
|
|||
|
AC Input/output Rated Current(A)
|
9.1/8.7
|
12. 1/11.6
|
15.2/14.5
|
18.2/17.4
|
|
Max, AC input/Output Current(A)
|
10/9.6
|
13.4/12.8
|
16.7/15.9
|
20/19.1
|
|
Max, Continuous AC Passthrough(A)
|
13.6/13
|
18.2/17.4
|
22.7/21.7
|
27.3/26.1
|
|
Power Factor
|
0.8 leading to 0.8 lagging
|
|||
|
Output Frequency and Voltage
|
50/60Hz; 220/230Vac
|
|||
|
Grid Type
|
Three Phase
|
|||
|
Total Harmonic Distortion (THD)
|
<3% (of nominal power)
|
|||
|
DC Current injection
|
<0.5% ln
|
|||
|
Efficiency
|
||||
|
Max. Efficiency
|
97.60%
|
|||
|
Euro Efficiency
|
97.00%
|
|||
|
MPPT Efficiency
|
>99%
|
|||
|
Certifications and Standards
|
||||
|
Grid Regulation
|
EMC/SAFETY REGULATION
|
|||
|
EMC/Safety Regulation
|
EN61000-6-2/-4;EN62109-1,EN62109-2
|
|||
|
General Data
|
||||
|
Operating Temperature Range(°C)
|
-40-60℃,>55℃ Derating
|
|||
|
Cooling
|
Smart cooling
|
|||
|
Noise(dB)
|
<50 dB
|
|||
|
Communication with BMS
|
RS485; CAN
|
|||
|
Monitoring mode
|
WiFi+APP
|
|||
|
Protection Degree
|
IP65
|
|||
|
Installation Style
|
Wall-mounted
|
|||
|
Warranty
|
5 Years (10 Years Optional)
|
|||
|
Weight(kg)
|
25.5
|
36
|
||
|
Gross weight(kg)
|
29
|
40
|
||
|
Cabinet size(mm)(WxHxD)
(Excluding connectors and brackets) |
340x560x257
|
430x629.9x256mm
|
||
|
Packing parameters
|
||||
|
Outer box dimensions
|
680x440x340(mm)
|
760x530x340(mm)
|
||
|
Pallet dimensions
|
900x700x120(mm)
|
1100x800x120(mm)
|
||
|
Pallet 20GP
|
6 layers:240pcs;7160kg
|
6 layers:168pcs;6860kg
|
||
|
Pallet 40GP
|
6 layers:516pcs;15394kg
|
6 layers:360pcs;14700kg
|
||
|
Pallet 40HQ
|
7 layers:602pcs;17888kg
|
7 layers:420pcs;17100kg
|
||
|
Without pallet 20GP
|
6 layers:301pcs;8729kg
|
6 layers:238pcs;9520kg
|
||
|
Without pallet 40GP
|
6 layers:623pcs;18067kg
|
6 layers:483pcs;19320kg
|
||
|
Without pallet 40HQ
|
7 layers:623pcs;18067kg
|
7 layers:483pcs;19320kg
|
||
