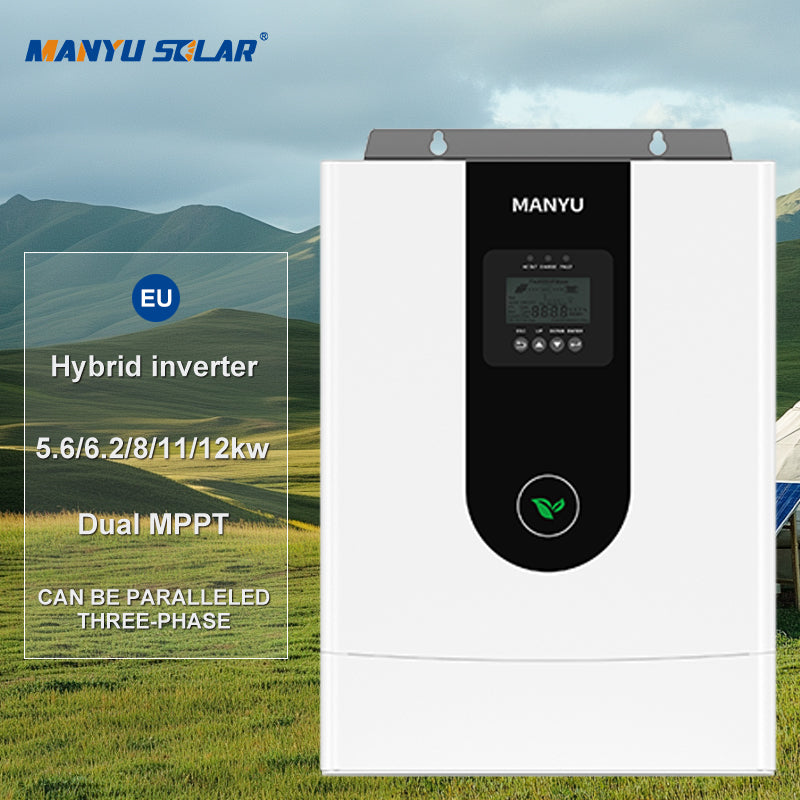

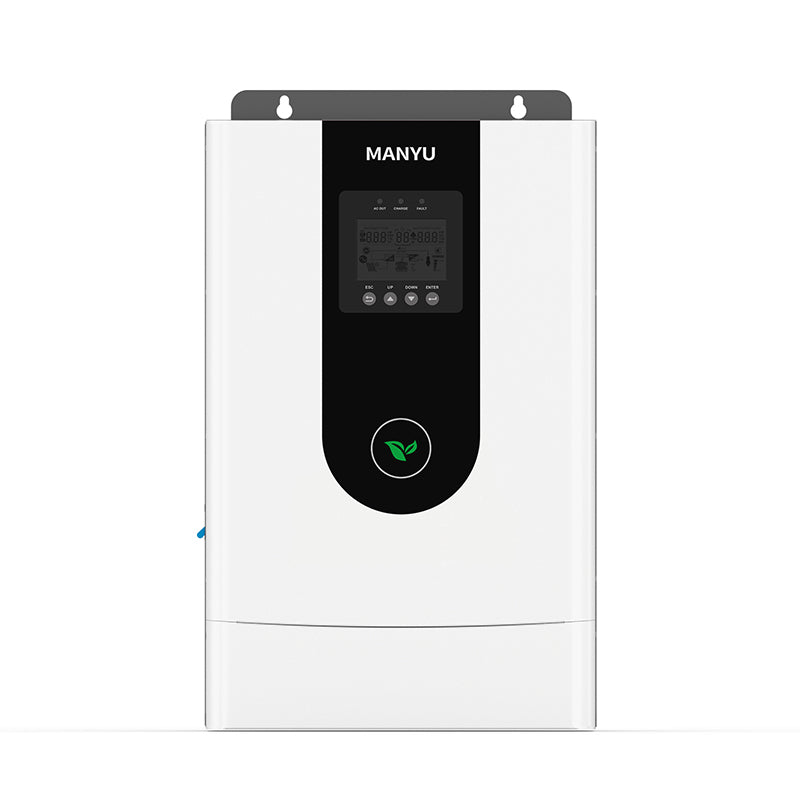

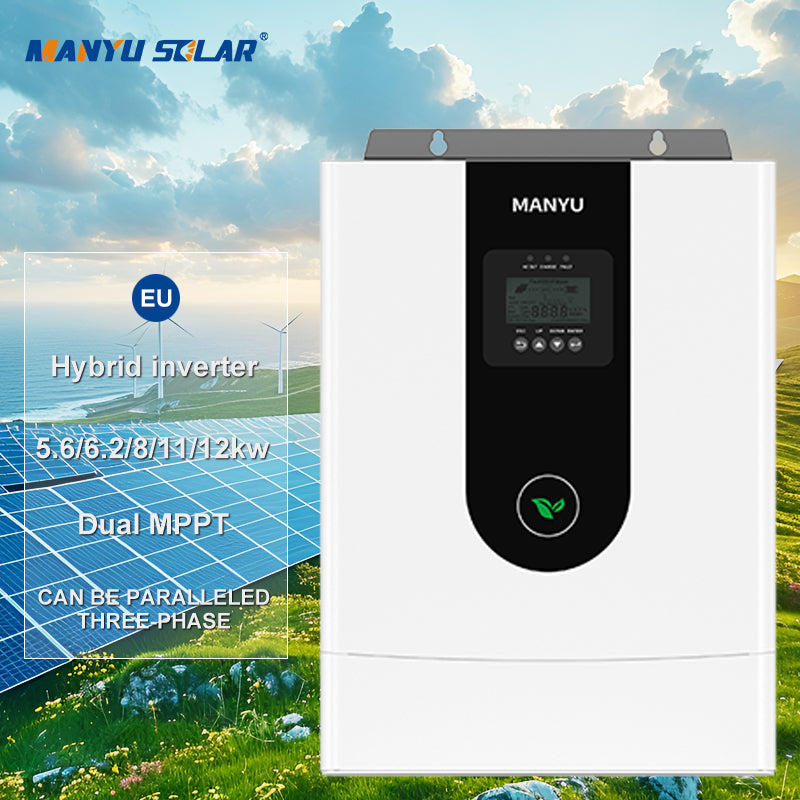

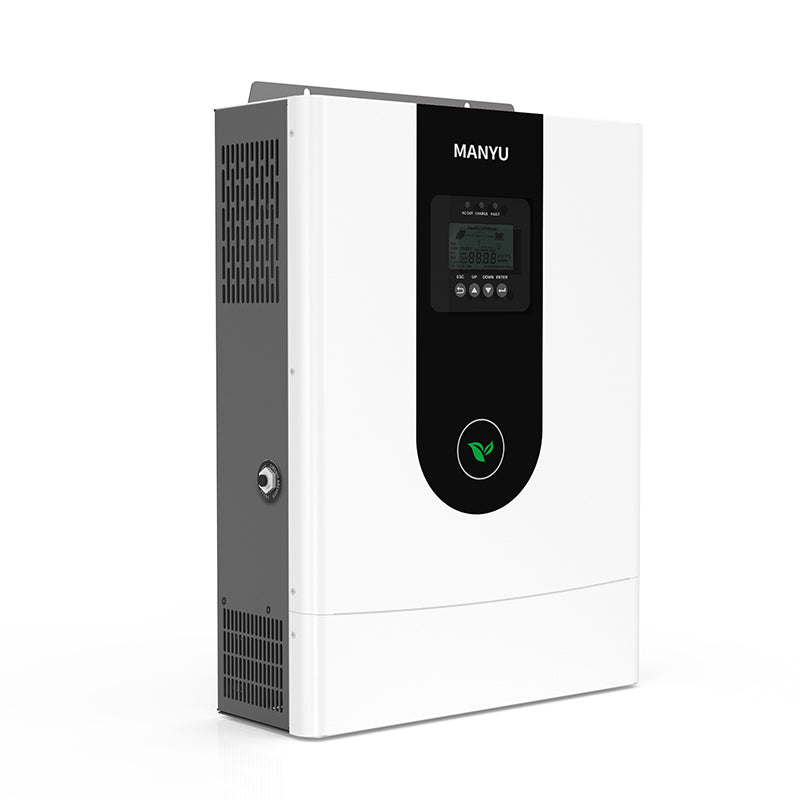

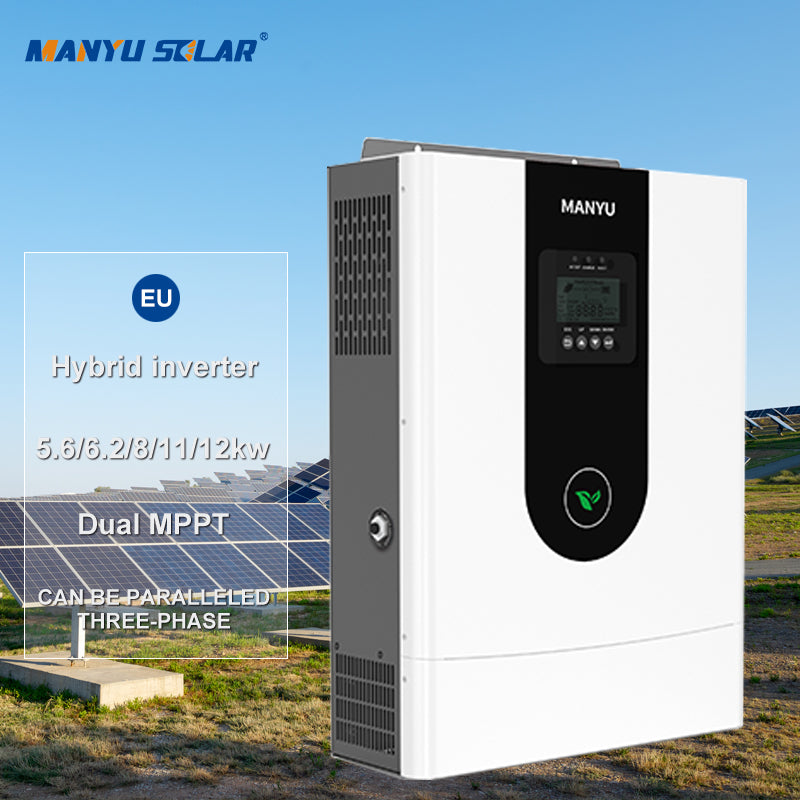

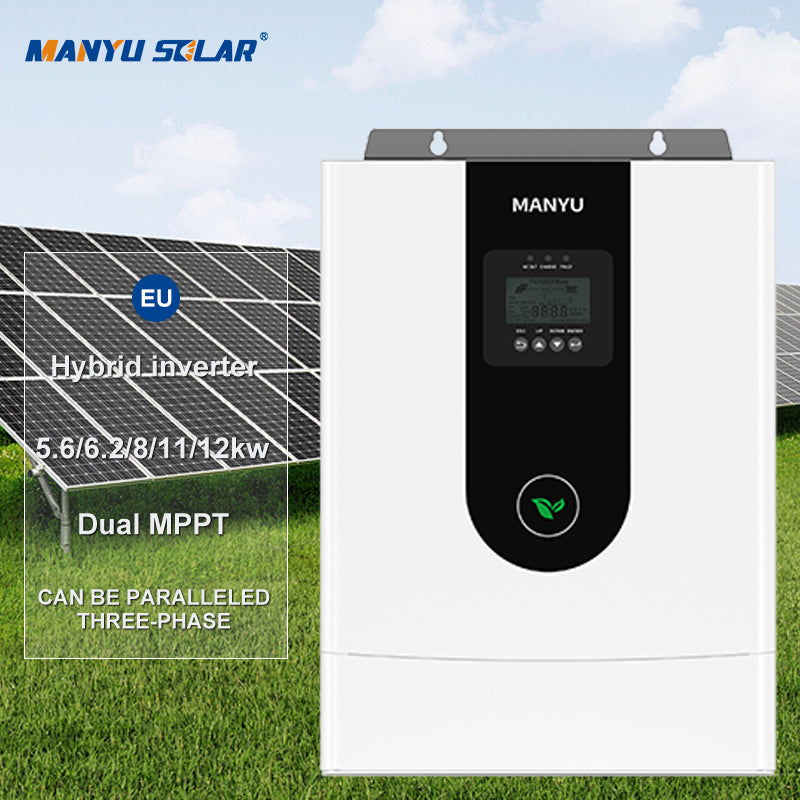

5KW 6.2kw 8kw 10kw 12kw Parallel Hybrid Solar Inverter for Home Use Off Grid Energy Storage System Solar Power Inverter
5KW 6.2kw 8kw 10kw 12kw Parallel Hybrid Solar Inverter for Home Use Off Grid Energy Storage System Solar Power Inverter
Couldn't load pickup availability
①.Anti-backflow grid-tie function; grid mode configurable.
②.Battery-free operation supported; solar and grid power loads together.
③.Dual activation for lithium batteries via grid or solar.
④.Power-saving mode reduces no-load loss.
⑤.Four charging modes: Solar Only, Mains Priority, Solar Priority, Hybrid.
⑥.Two output modes: mains bypass & inverter; UPS function.
⑦.AC output controlled by ON/OFF rocker switch.
⑧.99.9% efficient MPPT technology.
|
model
|
MY-EU12K-48V/MY-EU12K-48VP
|
MY-EU8K-48V/MY-EU8K-48VP
|
MY-EU5.6K-48V/MY-EU5.6K-48VP
|
|
( can be paralleled / three-phase )
|
( parallel / three-phase )
|
( can be paralleled / can be three-phase )
|
|
|
Parallel Mode
|
|||
|
Allowed parallel quantity
|
2~6 units
|
||
|
Mains mode
|
|||
|
Rated input voltage
|
220/230Vac
|
||
|
Input voltage range
|
(170Vac~280Vac)±2%(UPS mode) (90 Vac-280Vac)±2%(APL mode )
|
||
|
frequency
|
47+0.3H2~55+0.3Hz(50H2);57+0.3Hz~65+0.3H2(60H2);
|
||
|
Overload / short circuit protection
|
breaker
|
||
|
Maximum efficiency
|
>95%
|
||
|
Conversion time ( bypass and inverter )
|
10ms ( typical )
|
||
|
AC reverse feeding protection
|
have
|
||
|
Maximum bypass overload current
|
63A
|
63A
|
40A
|
|
Inverter mode
|
|||
|
Output voltage waveform
|
Pure sine wave
|
||
|
Rated output power ( VA)
|
11000
|
800
|
5600
|
|
Rated output power ( W)
|
11000
|
800
|
5600
|
|
Power Factor
|
1
|
||
|
Rated output voltage (Vac)
|
230Vac
|
||
|
Output voltage error
|
±5%
|
||
|
Output frequency range (HZ)
|
50Hz±0.3Hz/60Hz±0.3Hz
|
||
|
Maximum efficiency
|
>92%
|
||
|
Overload protection
|
(102%< load <125%)±10%: report an error and shut down the output after 5 minutes (125%< load <150%)±10%: report an error and shut
down the output after 10 seconds ; |
||
|
load >150%±10%: report an error and shut down the output after 5 seconds ;
|
|||
|
Peak Power
|
22000VA
|
16000VA
|
11000VA
|
|
Motor load capacity
|
7HP
|
6HP
|
3HP
|
|
Output short circuit protection
|
breaker
|
||
|
Bypass circuit breaker specifications
|
63A
|
63A
|
40A
|
|
Rated battery input voltage
|
48V ( minimum starting voltage 44V)
|
||
|
Battery voltage range
|
40.0Vdc~60Vdc±0.6Vdc
|
||
|
Power saving mode
|
Load ≤ 25W enters power saving mode
|
||
|
Mains charging
|
|||
|
Battery Type
|
Lead acid or lithium battery
|
||
|
Maximum charging current ( adjustable )
|
120A
|
120A
|
60A
|
|
Charging current error
|
±5Adc
|
||
|
Voltage range
|
40-60Vdc
|
||
|
Short circuit protection
|
Circuit Breakers and Fuses
|
||
|
Circuit breaker specifications
|
63A
|
63A
|
40A
|
|
Solar Charging
|
|||
|
Maximum PV open circuit voltage
|
500Vdc
|
||
|
PV operating voltage range
|
100-500Vdc
|
||
|
MPPT number
|
2
|
1
|
|
|
MPPT voltage range
|
120-450Vdc
|
||
|
Maximum PV input power
|
5500w*2(11000w)
|
5500w*2(11000w)
|
6000W
|
|
Maximum PV input current
|
22A*2
|
22A*2
|
22A
|
|
Solar charging current range ( adjustable )
|
0-150A
|
0-150A
|
0-100A
|
|
Charging short circuit protection
|
Blown fuse
|
||
|
Wiring protection
|
Reverse polarity protection
|
||
|
Maximum hybrid charging current (PV+AC)
|
|||
|
Maximum hybrid charging current ( adjustable )
|
0-150A
|
0-150A
|
0-100A
|
|
Certification Specifications
|
|||
|
Specification Certification
|
CE(EC62109-1.2)
|
||
|
EMC certification level
|
EN61000-6-1,EN61000-6-3,
|
||
|
Operating temperature range
|
-15°C to 55°0
|
||
|
Storage temperature range
|
-25°C~ 60°C
|
||
|
Humidity range
|
5% to 95% ( three-conformal coating protection )
|
||
|
noise
|
≤60dB
|
||
|
Heat dissipation
|
Forced air cooling, adjustable wind speed
|
||
|
Communication interface
|
USB/RS485WIFI/GPRS) dry node control
|
||
|
Size ( L*W*D)
|
540x350x120mm
|
460mm*305mm*115mm
|
|
|
Weight ( kg)
|
16
|
15
|
10.8
|
