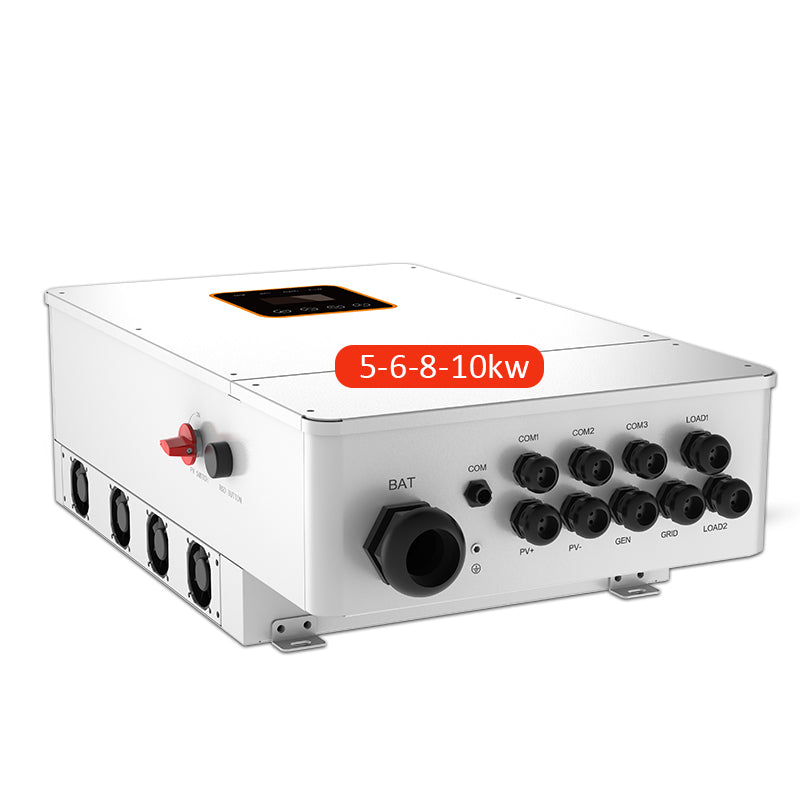

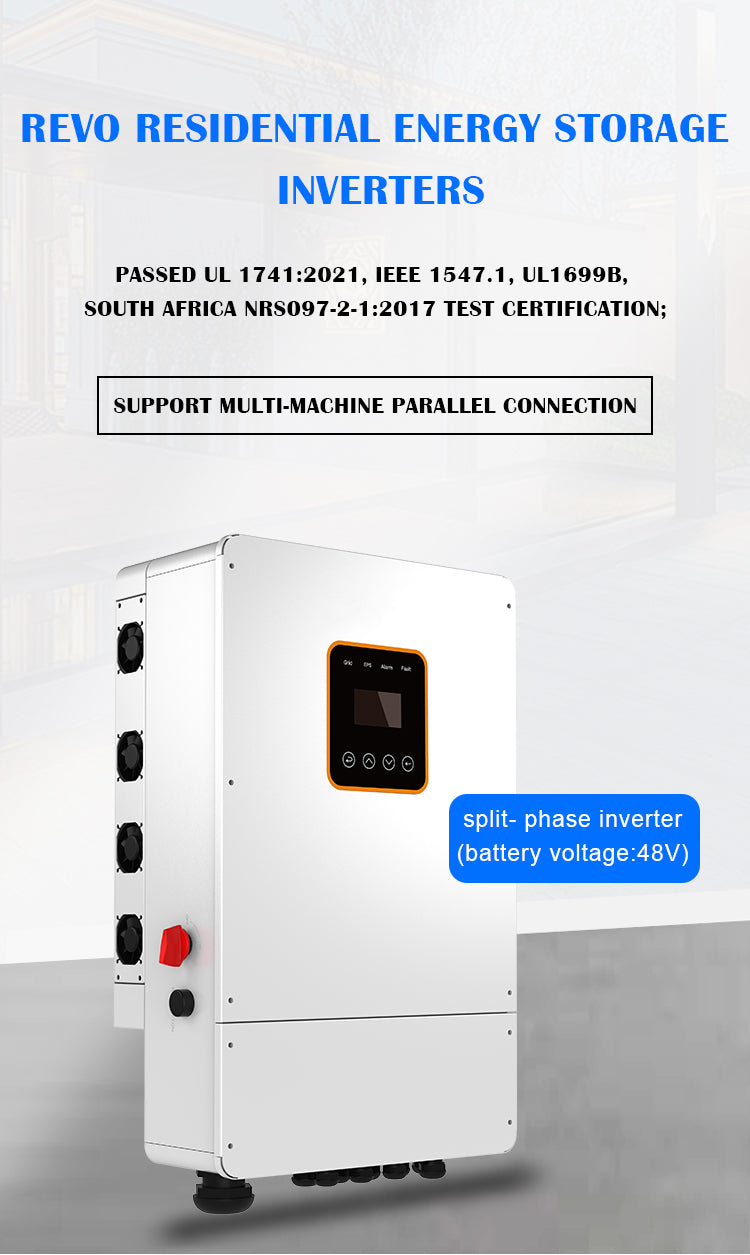

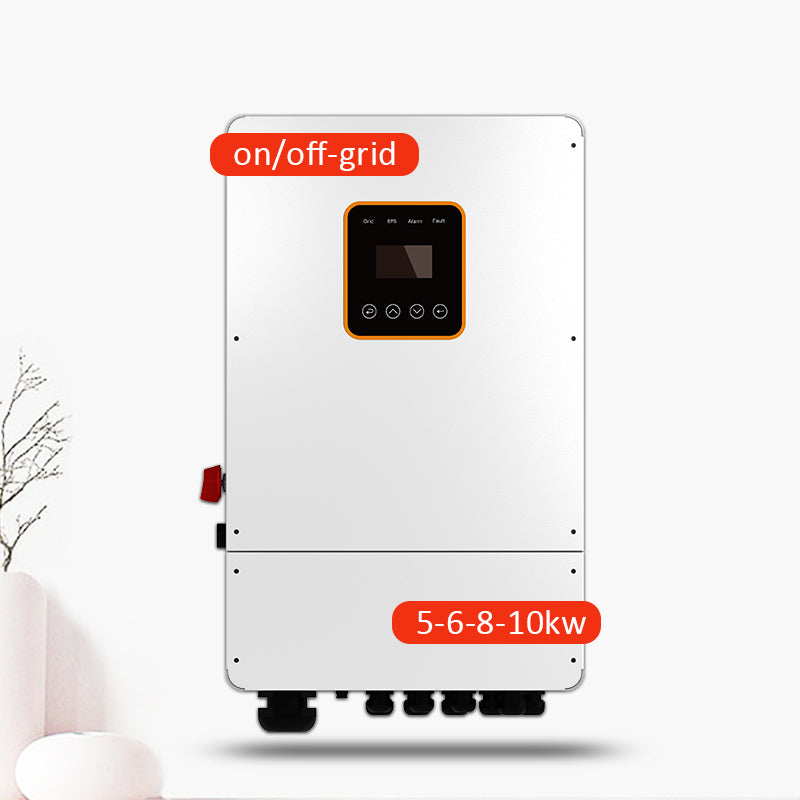

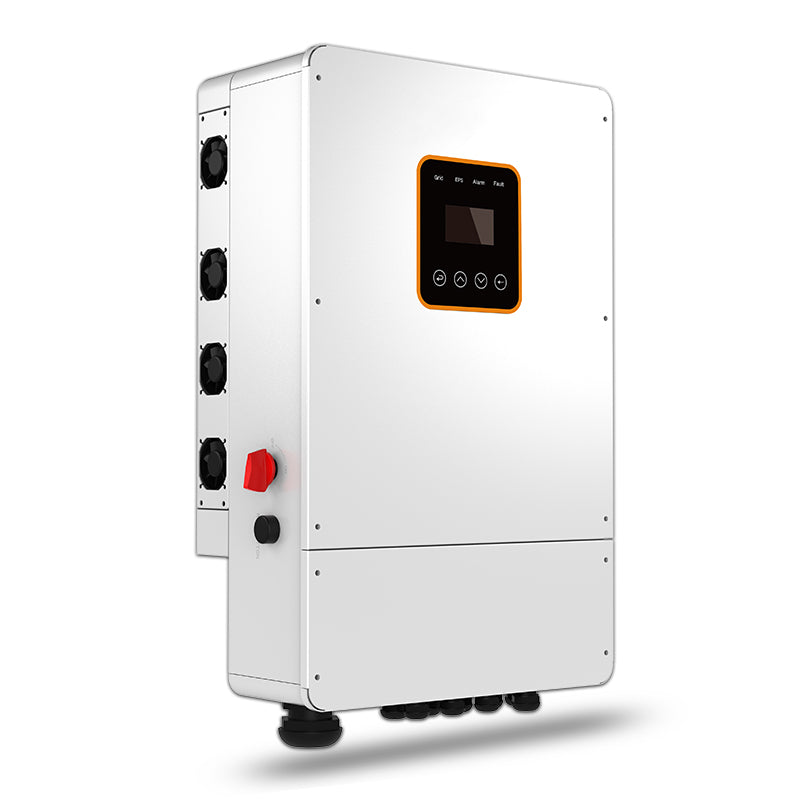

5/6/8/10kw Off Grid Grid Tie Inverter 48v split phase120 240v Solar Hybrid Parallel Solar Inverter
5/6/8/10kw Off Grid Grid Tie Inverter 48v split phase120 240v Solar Hybrid Parallel Solar Inverter
Couldn't load pickup availability

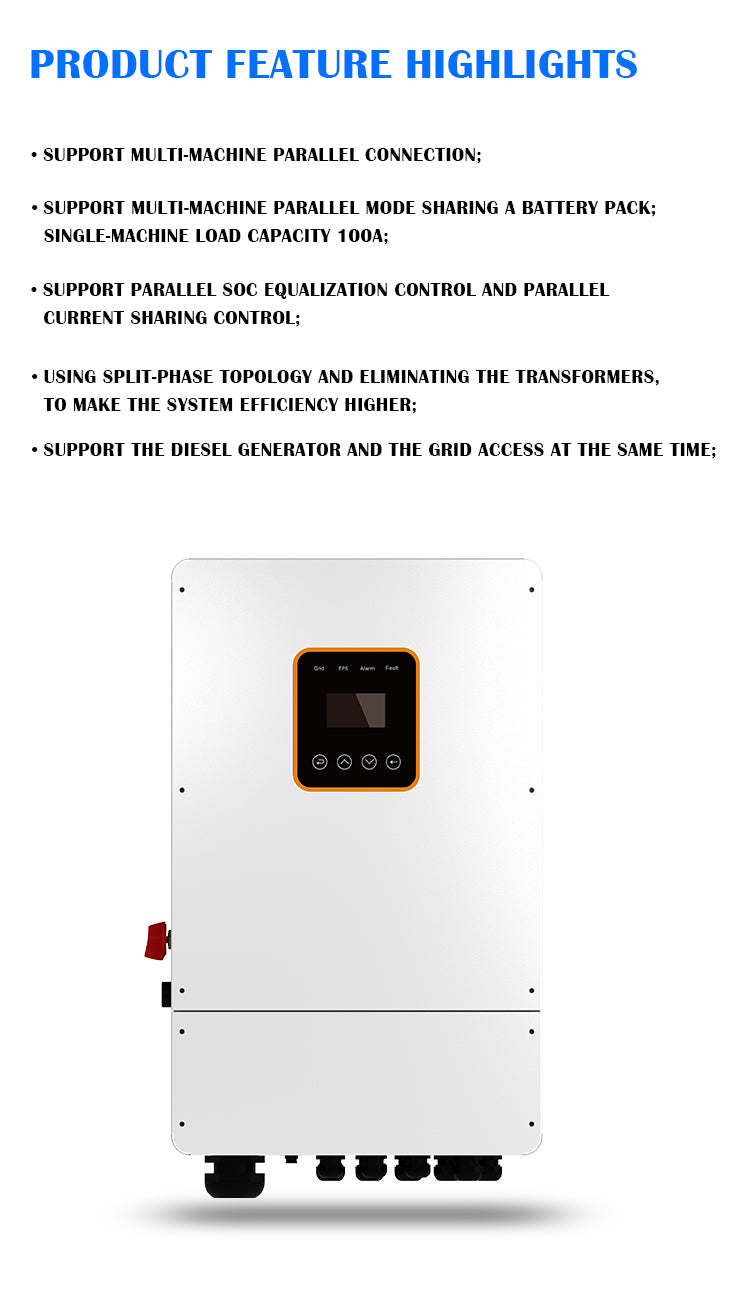

Safe & reliable
• Complete functional protection measures;
Friendly & flexible
• LCD or touch panel are optional;
• Support diesel generator connection;
• support the parallel function;
• 4 MPPT trackers;
Intelligent & efficient
• Max.charging/discharging current up to 250A;
• Multiple working modes are optional;
• support WIFI,GPRS,4G,APP;
|
Model
|
MYR5KLNA
|
MYR6KLNA
|
MYR7K6LNA
|
MYR8KLNA
|
|
Battery Data
|
|
|||
|
Battery Type
|
Lead-acid or Lithium-ion
|
|||
|
Battery Voltage Range
|
48V
|
48V
|
48V
|
48V
|
|
Max Charging/Discharging Current
|
120A/120A
|
135A/135A
|
190A/190A
|
190A/190A
|
|
PV Input Data
|
|
|||
|
PV Input Power
|
7.5KW
|
9KW
|
12KW
|
12KW
|
|
MPPT Number
|
4
|
|||
|
PV Voltage Range
|
350V/85-500V
|
|||
|
MPPT Voltage Range
|
120V-500V
|
|||
|
Single MPPT Input Current
|
12A
|
12A
|
12A
|
12A
|
|
On Grid AC Output
|
|
|||
|
Rate AC Output Power
|
5KVA
|
6KVA
|
7.6KVA
|
8KVA
|
|
AC Output Voltage
|
120/240Vac(split phase), 208Vac(2/3 phase), 230Vac(single phase)
|
|||
|
AC Output Frequency
|
50/60Hz
|
|||
|
Grid Type
|
Split phase; 2/3 phase; Single phase
|
|||
|
Max Output Current
|
24A
|
28.8A
|
36.5A
|
38.3A
|
|
AC Reverse Charging
|
Yes
|
|||
|
Back-up AC Output
|
|
|||
|
Rated Backup Output Power
|
5KVA
|
6KVA
|
7.6KVA
|
8KVA
|
|
Max Backup Output Power
|
6.25KVA 60S
|
7.5KVA 60S
|
9.5KVA 60S
|
10KVA 60S
|
|
Backup AC Output Voltage
|
120/240Vac(split phase), 208Vac(2/3 phase), 230Vac(single phase)
|
|||
|
Efficiency
|
|
|||
|
Max Efficiency
|
≥98.2%
|
|||
|
CEC Efficiency
|
≥97.2%
|
|||
|
Protection
|
|
|||
|
Ground Protection
|
YES
|
|||
|
Islanding Protection
|
YES
|
|||
|
Battery Reverse Protection
|
YES
|
|||
|
Output Overvoltage Protection
|
YES
|
|||
|
AC&DC Over-current Protection
|
YES
|
|||
|
Overheating Protection
|
YES
|
|||
|
General Data
|
|
|||
|
Operation Temperature Range
|
-25~ +60℃
|
|||
|
Environment Humidity
|
0-95%
|
|||
|
Weight
|
32KG
|
|||
|

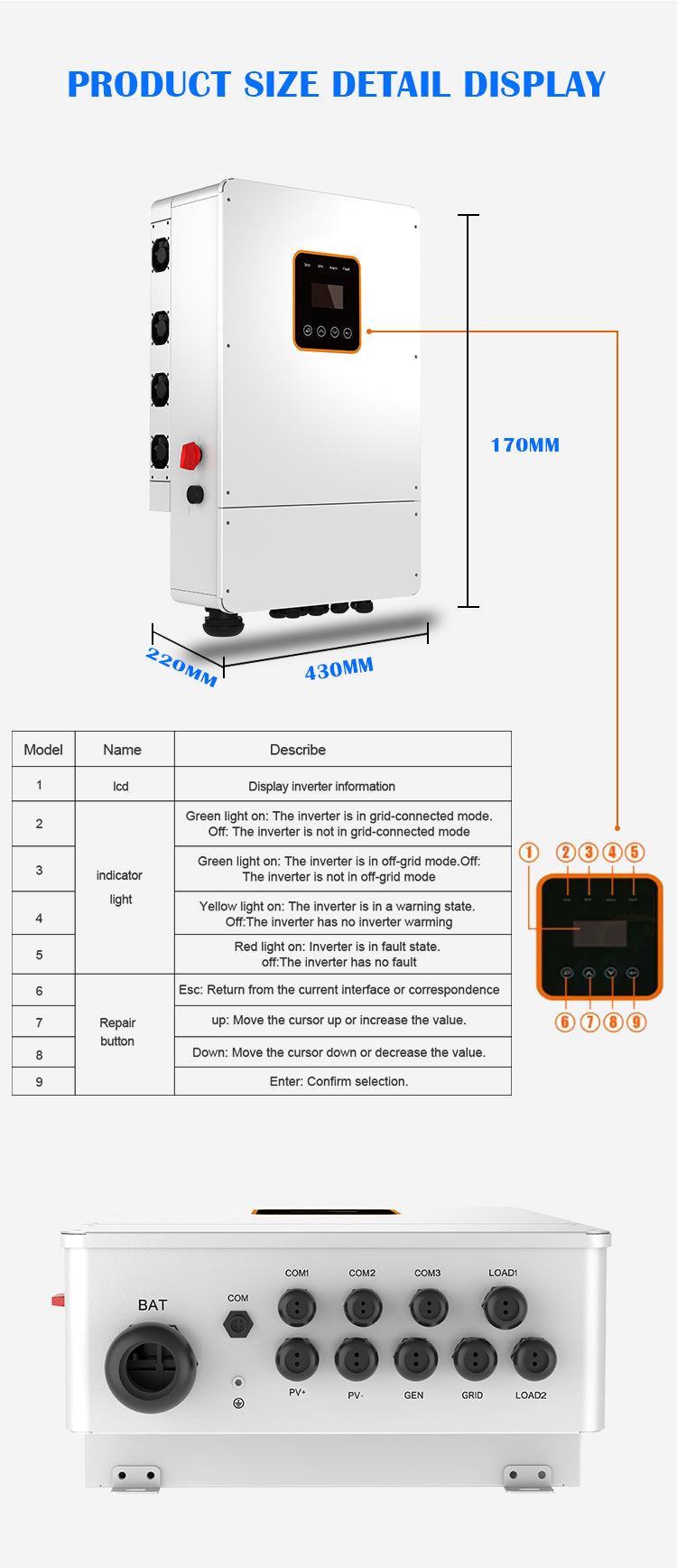

Dimension(W*H*D)
|
430*710*210mm
|
|||
|
Cooling
|
Fan Cooling
|
|||
|
Noise(dB)
|
<25dB
|
<29dB
|
<29dB
|
<29dB
|
|
Display
|
LCD
|
|||
|
Communication
|
Modbus, RS485, WIFI, 4G
|
|||
|
Safety
|
EN61000-6-1, EN61000-6-3, FCC 15 class B
|
|||
|
EMC
|
IEC62109-1, IEC62109-2
|
|||
|
On Grid
|
UL1741,IEEE1547,RULE21,VDE 0126,AS4777,NRS2017,G98,G99
|
|||
