manyusolar

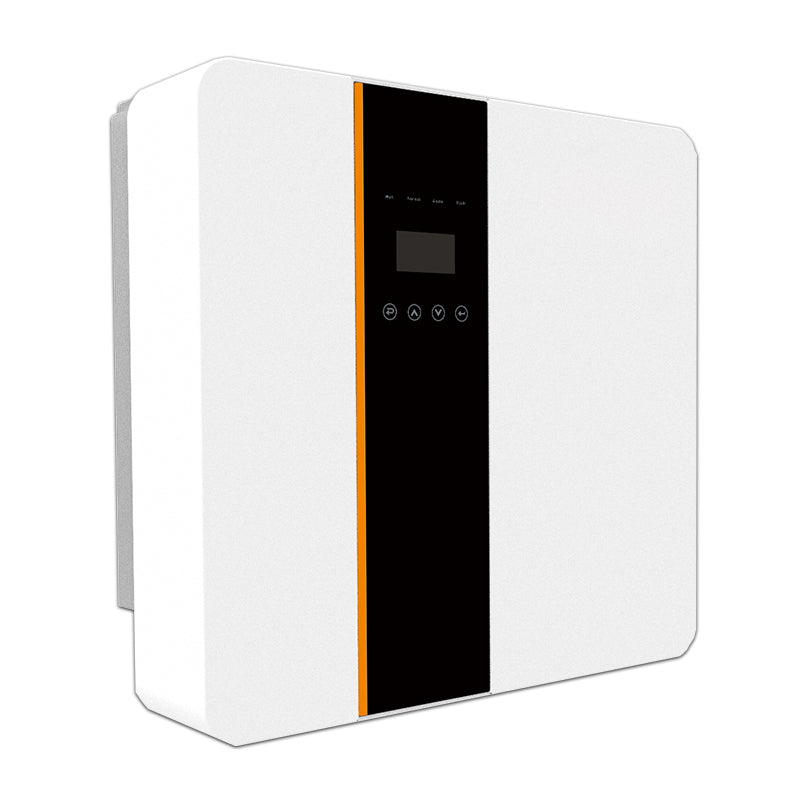

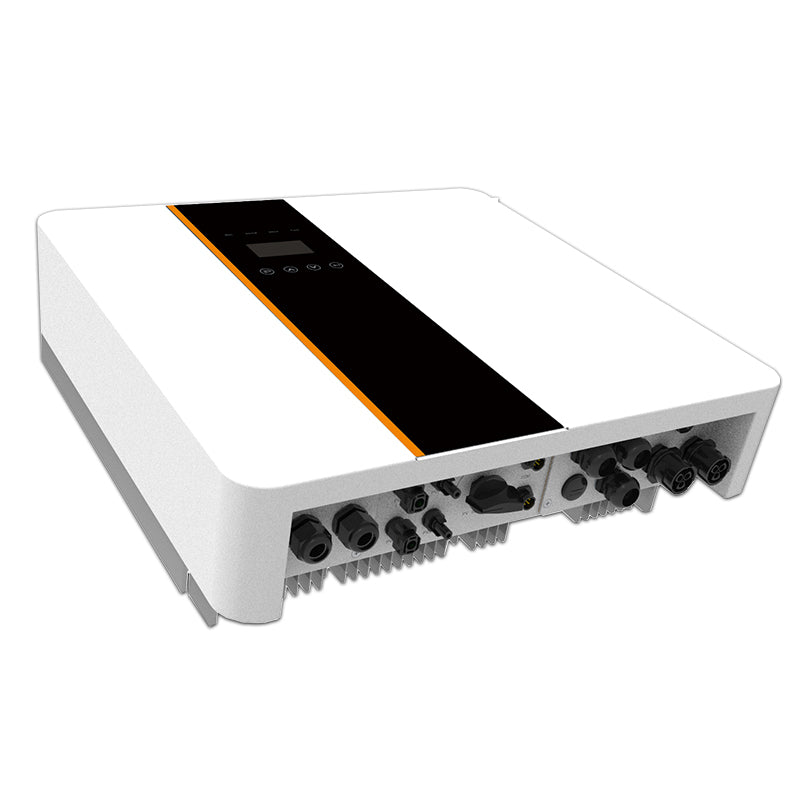

3kw 4kw 5kw 6kw 8kw Hybrid Off Grid Grid Tie Inverter Parallel Inverter Mppt Solar Inverter

3kw 4kw 5kw 6kw 8kw Hybrid Off Grid Grid Tie Inverter Parallel Inverter Mppt Solar Inverter

Regular price $735.00 USD
Regular price Sale price $735.00 USD
Sale Sold out
Shipping calculated at checkout.
hybrid inverter

Safe & reliable
• Passed IEC/EN62109-1/-2, IEC/EN62477-1, South Africa NRS097-2-1:2017, IEC/EN 61000-6-1, IEC/EN 61000-6-3 test
certification;

Friendly & flexible
• Support multi-parallel connection;
• Support flexible access of diesel generator;
• Compatible with lead-acid and lithium-ion battery;

Economical & practica
• Support intelligent EMS management function;
• Support on/off-grid automatic switching function to
ensure uninterrupted power when important loads
are off-grid;

Datasheet
MYR3KL1
MYR3K6L1
MYR4KL1
MYR4K6L1
MYR5KL1
MYR6KL1
DC Input
Max. Input Power
4600W
6000W
7000W
Start-up Voltage
125V
Max. PV Voltage
500V
PV Voltage Range
125V-500V
MPPT Range/Nominal
125V-500V /360V
Max. Input Current
14A/14A
MPPT Tracker/Strings
2/1
AC Output
Rated Power W
3KW
3.6KW
4KW
4.6KW
5KW
6KW
Max. Output Current
13A
16A
17.4A
20A
21.7A
26A
Nominal Voltage/Range
230Vac /176Vac~270Vac
Frequency
50 /60Hz
PF
1(0.8lagging-0.8leading)
THDI
< 3%
AC Output Topology
L+N+PE
Battery
Battery Voltage Range
42~59V
Max. Charging Voltage
58V
Charge/Discharge Current
95A/62.2A
95A/76.6A
95A/83.3A
95A/95.8A
95A/110A
95A/110A
Battery Type
Lithium /Lead-acid
Communication Interface
CAN/RS485
EPS Output
Rated Power W/VA
3000VA/3000W
3600VA/3600W
4000VA/4000W
4600VA/4600W
5000VA/5000W
6000VA/6000W
Rated Voltage
230Vac
Rated Current
13A
16A
17.4A
20A
21.7A
26A
Rated Frequency
50Hz
Automatic Switchover Time
< 20ms
THDU
< 2%
Parallel Operation
Yes
General Data
Battery Charge/Discharge
95%
DC Max. Efficiency
97.60%
Euro Efficiency
97%
MPPT Efficiency
99.90%
Protection Class
IP65
Noise Emission (Typical)
< 35dB
Operation Temperature
-25~+60℃
Cooling
Natural
Relative Humidity
0 ~95% (non-condensing)
Altitude
2000m

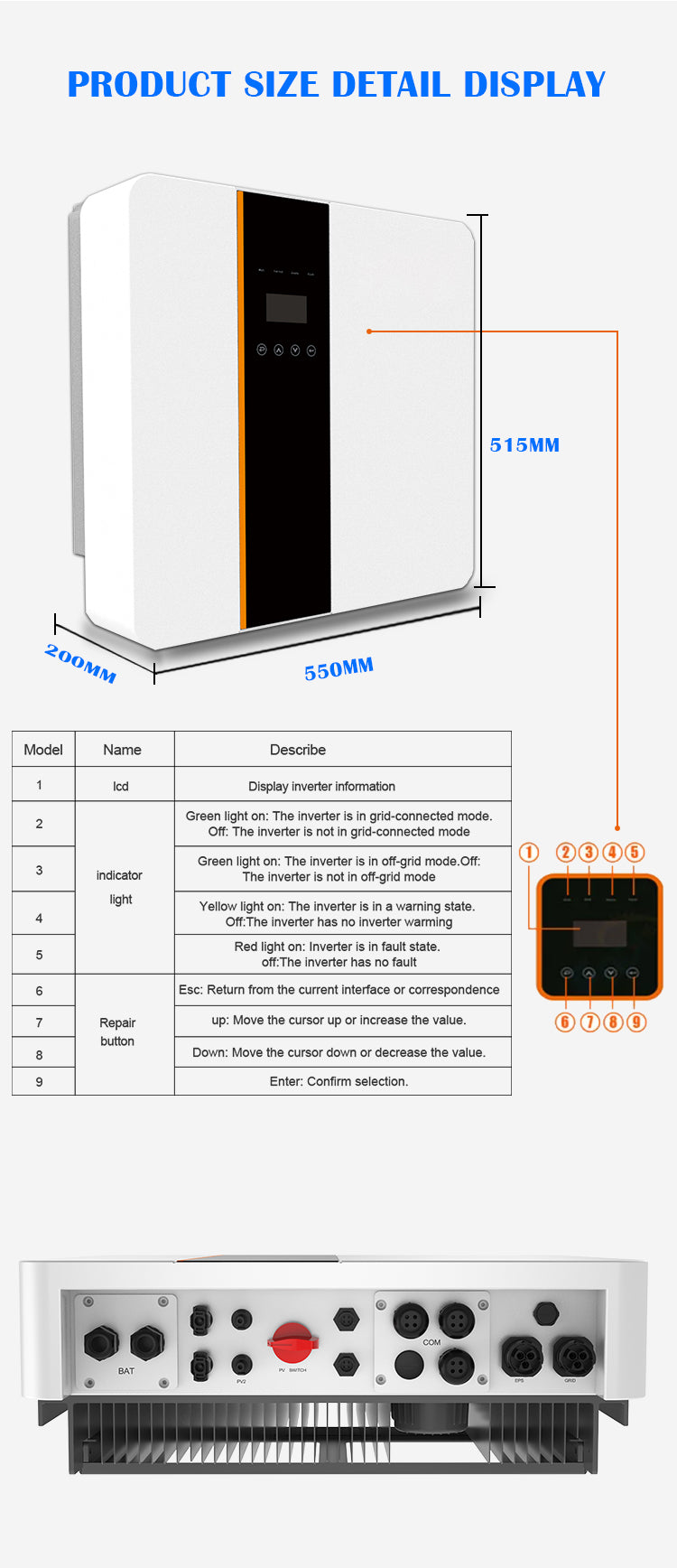

Dimensions (W/D/H) mm
550/200/515mm
Weight
25kg
Inverter Topology
transformerless
Self-Consumption
< 3W
Features
Display
LCD
Interface: RS485/Wi-Fi/LAN
Yes /Opt/Opt
/CAN/DRM
/Yes/Yes
Certificates
CE, TUV
View full details

Answers to questions you are concerned about

What kind of store is this

We are a group factory which is specializing in the production of inverters and solar panels. We have 19 years of production experience till now. Our products are sold worldwide,Especially in Europe,Southeast Asia,South America,North America,Africa,Middle East and other countries,support OEM and ODM for small quantities.Looking forward to be your partner.

About the freight

Due to the purchase quantity and the shipping cost of each country will be different, if you are not in the shipping country Iist, the shipping cost will show $9999, please don't worry, please contact us through Inbox or email, we will confirm and give you the best price

When will it be shipped after placing an order

Dear, after you place an order, we will contact you by email or Inbox. Normally, if it is in stock, we will ship it to you at the next day, and the tracking number will be uploaded two days later.

Is there a warranty on my purchase?

All of our products will have a warranty, and the warranty period is different for products.The inverter is guaranteed for 1-2 years, the solar panel is guaranteed for 10-25 years, and the battery is guaranteed for 3-5 years. If you have any questions, please contact us here or email,we will reply to you immediately.

We are a solar inverter manufacturing factory with mature products and OEM for major brands

- Please Contact us -

  • About delivery

    After you place an order and pay, we will contact you by email or Inbox in time to tell you the specific delivery time. Normally, the products sold are still on the next day, and the delivery will start. The tracking number will be issued after delivery. Submit it to your email or store in about 2 days. You can contact us after you place an order, or you can wait patiently for a few days. Thank you for your understanding

  • About Warranty

    The company's products provide quality assurance, inverter products are guaranteed for one year, solar packs are guaranteed for 3-5 years, batteries are guaranteed for 1-5 years, please contact us for details
    Users of all warranty products are not allowed to disassemble the machine without permission. We have the right to refuse the warranty if we disassemble the machine without permission. If you find that the product is faulty, please contact us and we will give you a satisfactory solution.

  • About Customization

    All products of the company support customization. The customized content includes logo, product appearance, product outer packaging, and other customized services and individual customized product functions. Customization needs to reach a certain minimum order quantity. Welcome to contact us

About us

Shenzhen manyu Smart Energy Electric Co., Ltd. is a high-tech enterprise integrating research and development, production, sales and service of solar modules, inverters, solar systems, solar application products, and photovoltaic electrical products.
