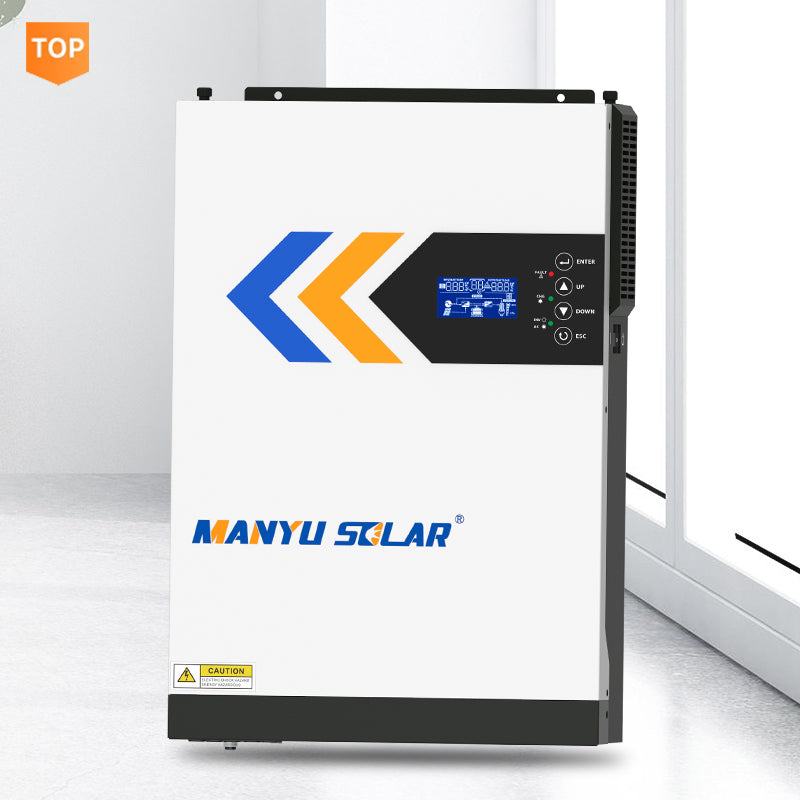

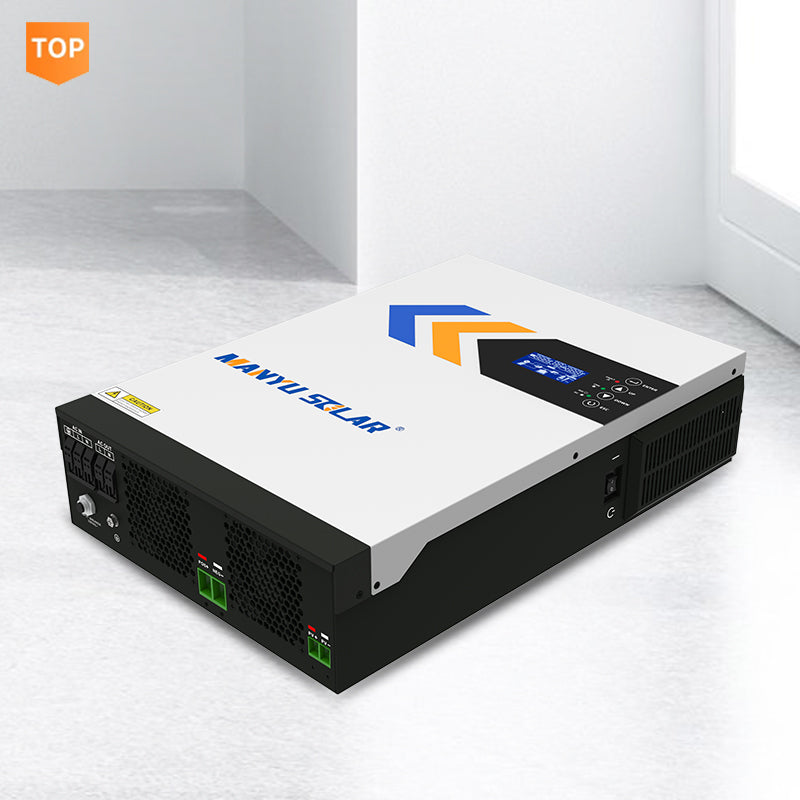

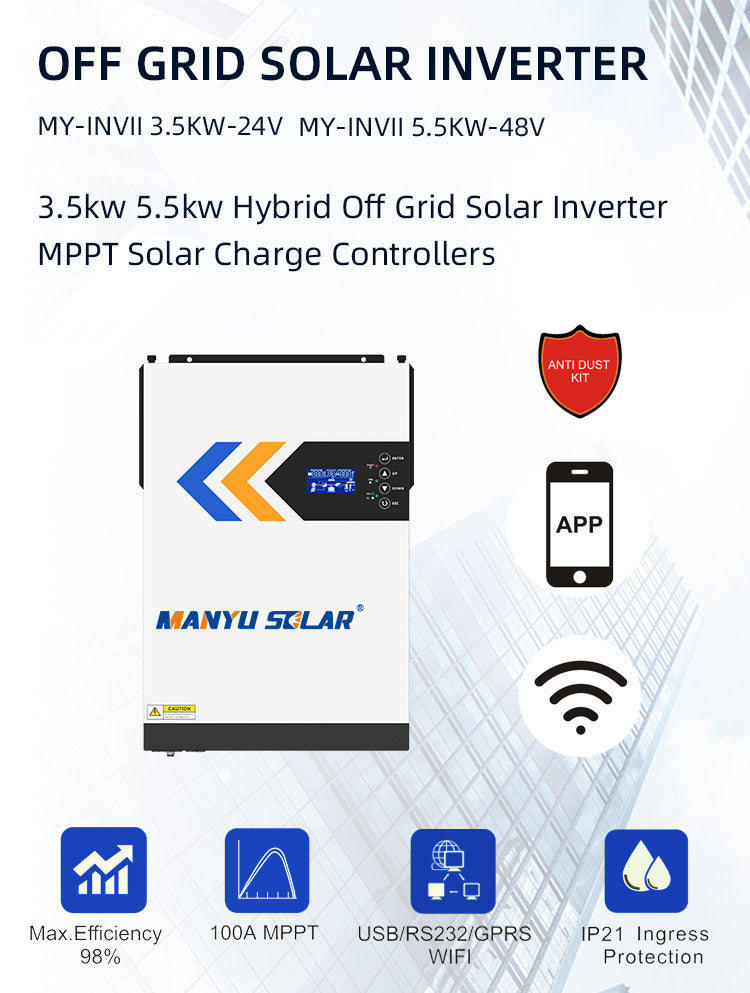

3.5kw 24v 5.5kw 48voff grid hybrid solar inverter 100A mppt charge controller solar inverter without battery
3.5kw 24v 5.5kw 48voff grid hybrid solar inverter 100A mppt charge controller solar inverter without battery
Couldn't load pickup availability
- Pure sine wave solar inverter(on/off Grid)
- Output power factor 1.0

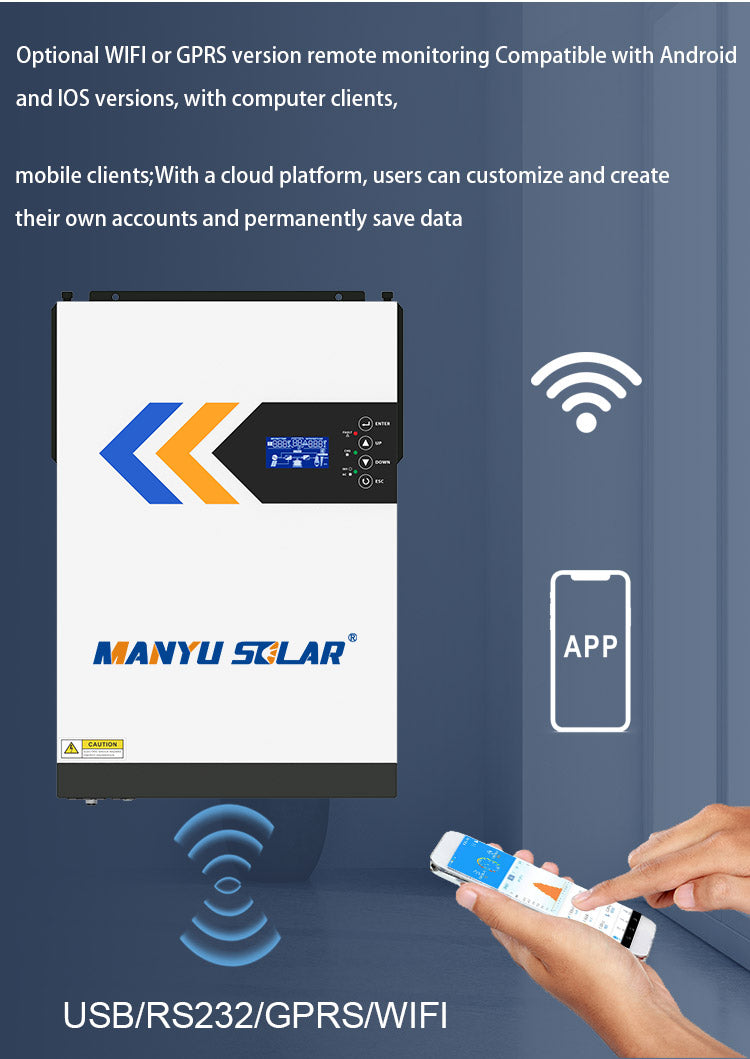

- WIFI&GPRS available for IOS and Android
- lnverter running without battery
- One-click restoration to factory Settings
- Built-in Lithium battery automatic activation
- Built-in 100A MPPT(Max 650ow) solar charger
- High PV input voltage range(90~500VDC)
- Built-in anti-dusk kit for harsh environment
- Smart battery charge design to optimize battery life
|
Model
|
MY-HB 3500W-24V
|
MY-HB 5500W-48V
|
|
RATED POWER
|
3500VA/3500W
|
5000VA/5000W
|
|
Input
|
||
|
Voltage
|
230VAC
|
|
|
Selectable Voltage Range
|
170~280VAC(For Personal Computers)
|
|
|
|
90~280VAC(For Home Appliances)
|
|
|
Frequency Range
|
50 Hz/60Hz(Auto sensing)
|
|
|
Output
|
||
|
AC Voltage Regulation(Batt.Mode)
|
230VAC±5%
|
|
|
Surge Power
|
7000VA
|
11000VA
|
|
Efficiency(Peak)PV to INV
|
97%
|
|
|
Efficiency(Peak)Battery to INV
|
94%
|
|
|
Transfer Time
|
10 ms (For Personal Computers);20 ms(For Home Appliances)
|
|
|
BATTERY &AC CHARGER
|
||
|
Battery Voltage
|
24VDC
|
48VDC
|
|
Floating Charge Voltage
|
27VDC
|
54VDC
|
|
Overcharge Protection
|
33VDC
|
63VDC
|
|
Maximum Charge Current
|
100A
|
100A
|
|
SOLAR CHARGER
|
||
|
Maximum PV Array Power
|
5000W
|
6000W
|
|
MPPT Range @ Operating Voltage
|
120~450VDC
|
|
|
Maximum PV Array Open CircuitVoltage
|
500VDC
|
|
|
Maximum Charging Current
|
100A
|
100A
|
|
Maximum Efficiency
|
98%
|
|
|
PHYSICAL
|
||
|

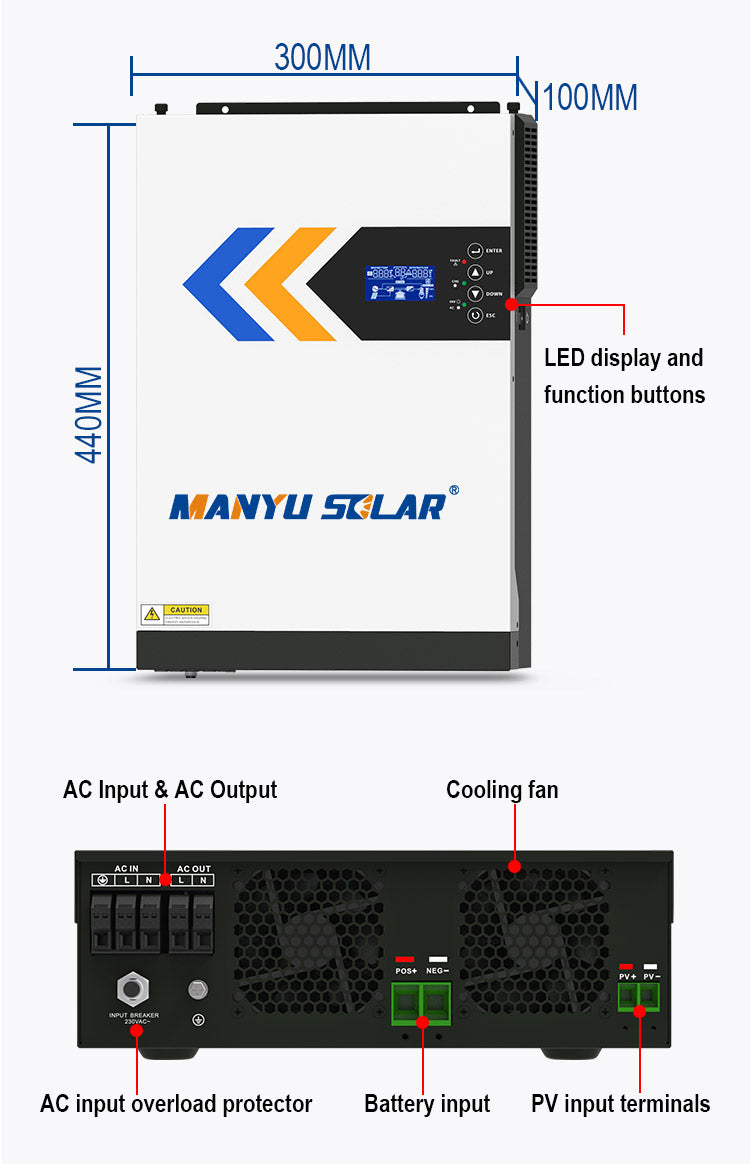

Dimension,D*W*H(mm)
|
100*300*400MM
|
|
|
Net Weight(kgs)
|
11
|
12
|
|
Communication interface
|
USB/RS232/GPRS/WIFI
|
|
|
OPERATING ENVIRONMENT
|
||
|
Mumidity
|
5% to 95% Relative Humidity(Non~condensing)
|
|
|
Operating Temperature
|
0°C~55℃
|
|
|
Storage Temperature
|
-15°C~60°c
|
|
