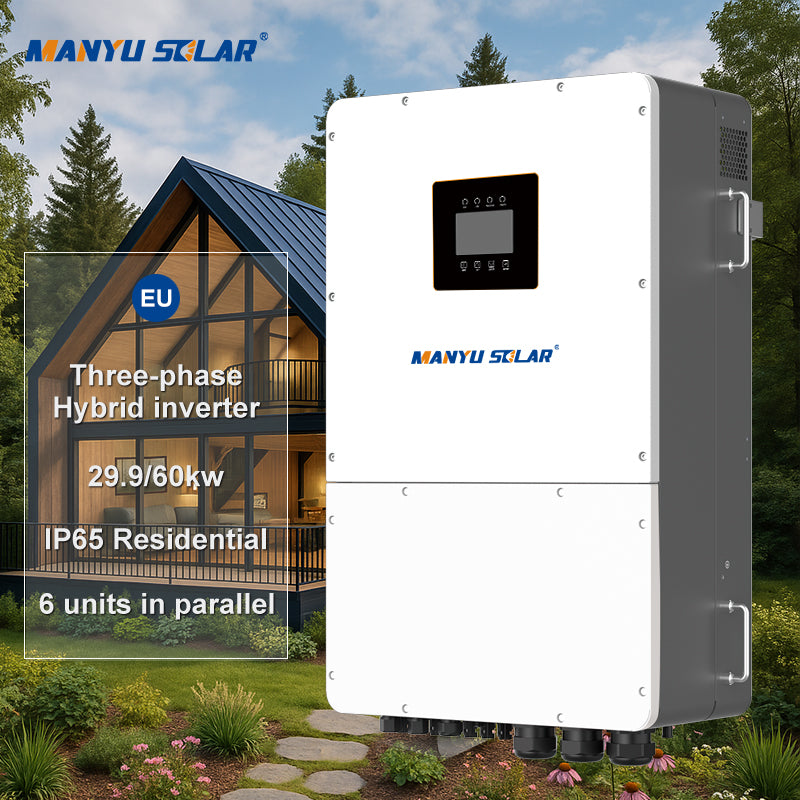

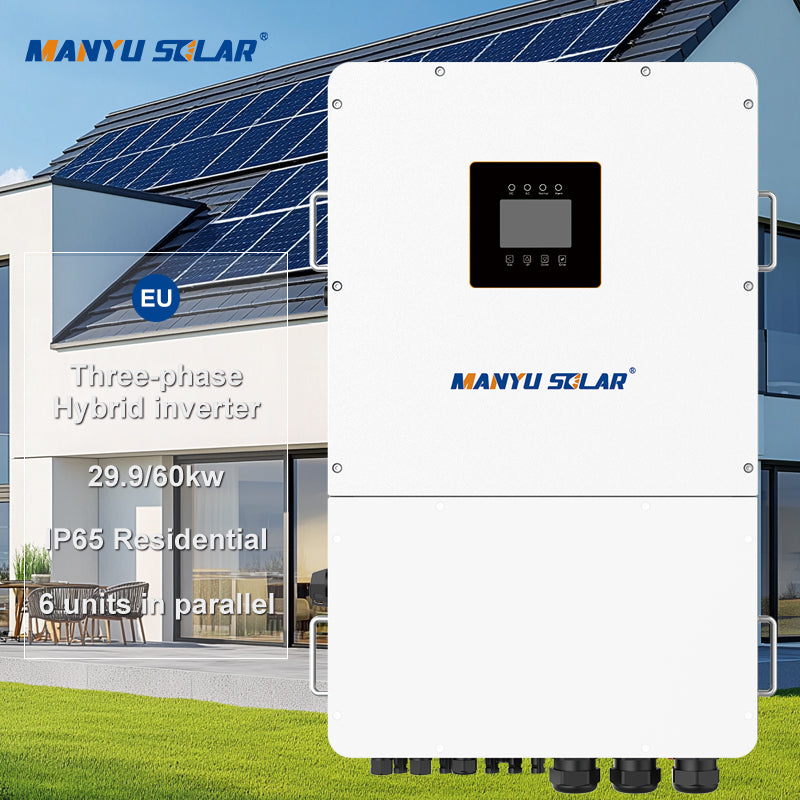

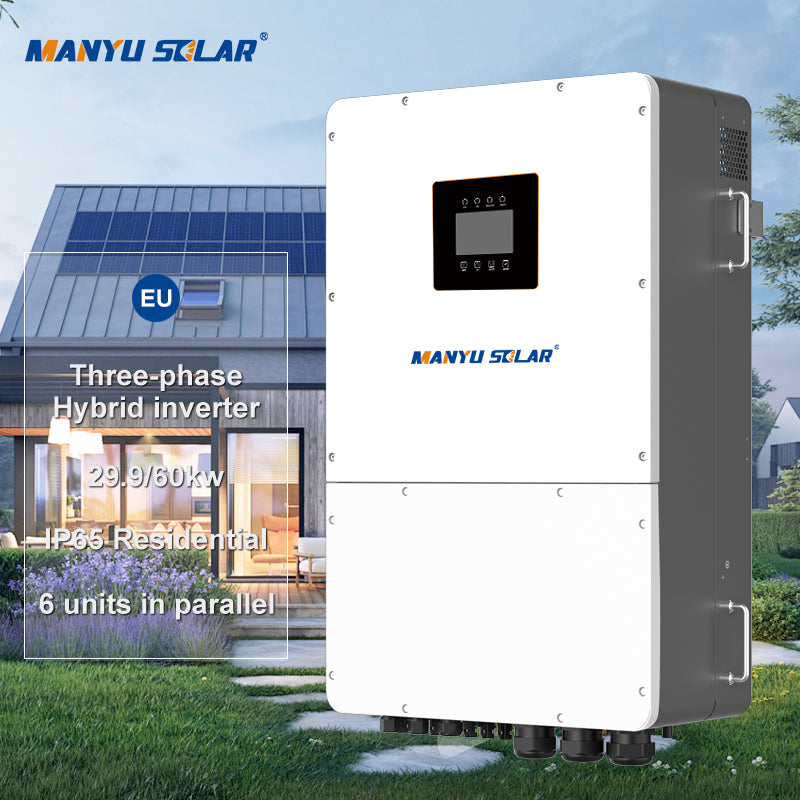

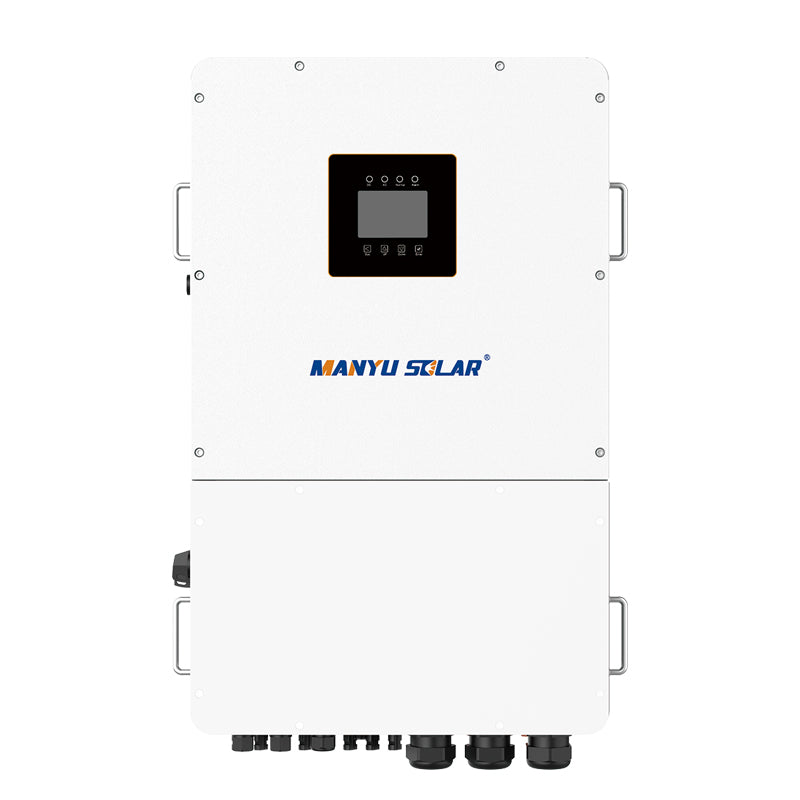

29.9KW 60kw Hybrid Solar Inverter 3 Phase Pure Sine Wave Inverter Solar Energy Storage Solar Inverter for Use in Solar Systems
29.9KW 60kw Hybrid Solar Inverter 3 Phase Pure Sine Wave Inverter Solar Energy Storage Solar Inverter for Use in Solar Systems
Couldn't load pickup availability
①.Superior Performance & Efficiency100% three-phase unbalanced output 4 MPPTs, efficiency up to 99.9% 1.67x PV oversizing.
②.Flexible Expansion & Compatibility Supports up to 6 units in parallel Enables AC coupling for system retrofit Compatible with mainstream Li-ion batteries.batteries.
③.Intelligent Energy Management Integrated local and remote EMS Support diesel generator Provides open API for system integration.
④.Dual Battery Inputs & High Current Dual independent battery inputs, 100A charge/discharge per port Up to 200A parallel current.
⑤.System Intelligence & Upgradability Supports intelligent module integration Modular design for easy expansion.
⑥.High Safety & Reliability All-SiC technology for higher efficiency IP66 protection Compact design, plug & play installations.
|
TECHNICAL SPECIFICATION
|
||||
|
Model
|
MY-HH30K-P3EU
|
MY-HH40K-P3EU
|
MY-HH5OK-P3EU
|
MY-HH60K-P3EU
|
|
INVERTER INPUT/OUTPUT (GRID)
|
||||
|
Rated Power(Input/Output)
|
138 kW/30 kW
|
138 kW /40 kW
|
138 kW/50 kW
|
138 kW / 60 kW
|
|
Rated Voltage
|
380/400V a.c., 3W+N+PE
|
|||
|
Rated Frequency
|
50 Hz/60 Hz
|
|||
|
Power Factor Range
|
0.8 leading ~ 0.8 lagging
|
|||
|
Switch Time
|
<20 ms
|
|||
|
Max. Continuous Current (Input/Output)
|
200 Aa.c./48Aa.c.
|
200 Aa.c./64Aa.c.
|
200 A a.c./80 Aa.c.
|
200Aa.c./96Aa.c
|
|
Max. Output Overcurrent Protection
|
65 A a.c.
|
87 Aa.c.
|
108 A a.c.
|
130 A a.c.
|
|
BATTERY
|
||||
|
BatteryType
|
Lithium /Lead-acid
|
|||
|
Battery Voltage Range
|
150~800Vd.c.
|
|||
|
Rated Battery Voltage
|
150 V d.c.
|
200 Vd.c.
|
250 Vd.c.
|
300 V d.c.
|
|
Max. Charge Current
|
2*100 Ad.c.
|
|||
|
Max. Discharge Current
|
2*100 A d.c.
|
|||
|
Reverse Connect Protection
|
Yes
|
|||
|
PVINPUT
|
||||
|
No. of MPPT Tracker / Strings
|
4/2+2+2+2
|
|||
|
Max. PV Array Power
|
68 kW
|
68 kW
|
100 kW
|
100 kW
|
|
Max. DC Voltage
|
1000 V d.c.
|
|||
|
MPPT Voltage Range
|
150~950 Vd.c.
|
|||
|
Start-up Voltage
|
125 V d.c.
|
|||
|
Max. Input Current/sring
|
8*20 A d.c.
|
|||
|
Isc PV (Absolute Maximum) /sring
|
8*30 Ad.c.
|
|||
|
AC OUTPUT (EPS)
|
||||
|
EPS Rated Output Voltage
|
380/400Va.c.,3W+N+PE
|
|||
|
EPS Rated Output Frequency
|
50Hz/60 Hz
|
|||
|
EPS Rated Output Active Power
|
30 kW
|
40 kw
|
50 kw
|
60 kw
|
|
EPS Rated Output Apparent Power
|
30 kVA
|
40 kVA
|
50 kVA
|
60 kVA
|
|
EPS Rated Output Current
|
43Aa.c.
|
58Aa.c.
|
72Aa.c.
|
87 A a.c.
|
|
Overload Capacity (Off Grid)
|
110% 30s/ 120% 10s/150% 0.2s
|
|||
|
EFFICIENCY
|
||||
|
MPPT Eficiency
|
99.90%
|
|||
|
Euro-efficiency
|
97.50%
|
|||
|
Max. Efficiency
|
98.50%
|
|||
|
PROTECTION & FEATURE
|
|
|
|
|
|
Insulation Monitoring
|
Yes
|
|||
|
Residual Current Monitoring
|
Yes
|
|||
|
Parallel Function
|
Yes, up to 6pcs
|
|||
|
Protection Degree
|
IP66
|
|||
|
Certifications
|
CEI0-21,EN 50549-1,VDE-AR-N 4105, UNE 217002,NTSTYPEA, G99,AS/NZS 4777.2
|
|||
|
Other Protection
|
Ground Fault Current Monitoring, Earth Fault Detection, Residual Current (RCD) Detection
|
|||
|
GENERAL PARAMETER
|
||||
|
Storage Temperature
|
-25°℃~+60°C
|
|||
|
Operating Temperature
|
- 25°℃~ +60 °C (>+45°C Derating)
|
|||
|
Humidity
|
0%~95%(Non-condensing)
|
|||
|
Operating Altitude
|
4000 m (>2000 m Derating)
|
|||
|
Noise
|
<65 dB
|
|||
|
Machine Dimensions (W*H*D)
|
544*880*278 mm
|
|||
|
Machine Weight/N.W.
|
80 kg
|
|||
|
DISPLAY& COMMUNICATION
|
||||
|
Display
|
LED+APP
|
|||
|
Interface
|
RS485/WiFi/CAN/DRM(Optional: Bluetooth/LAN/Meter)
|
|||
