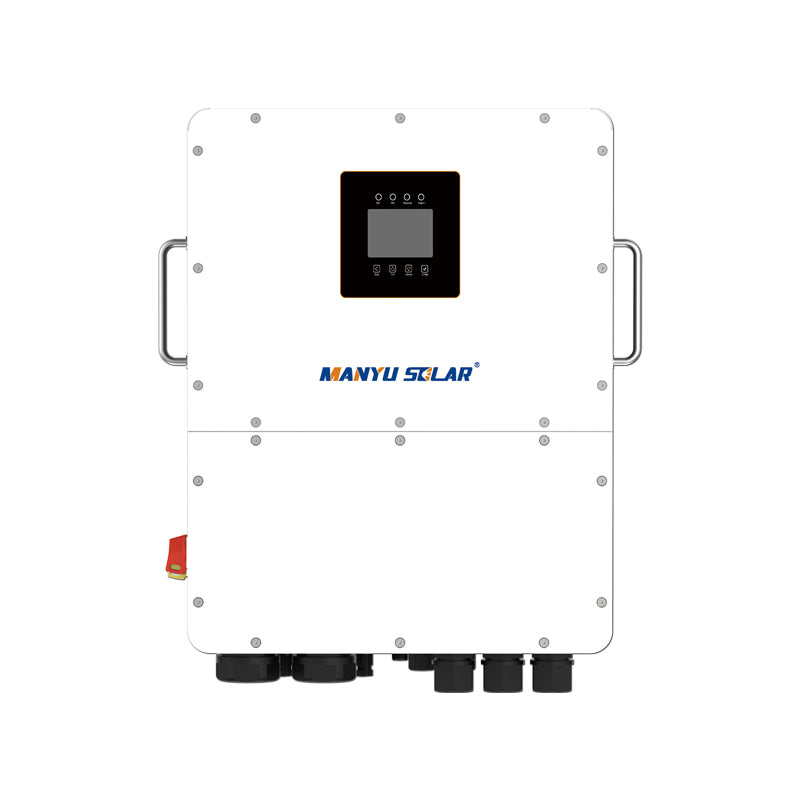

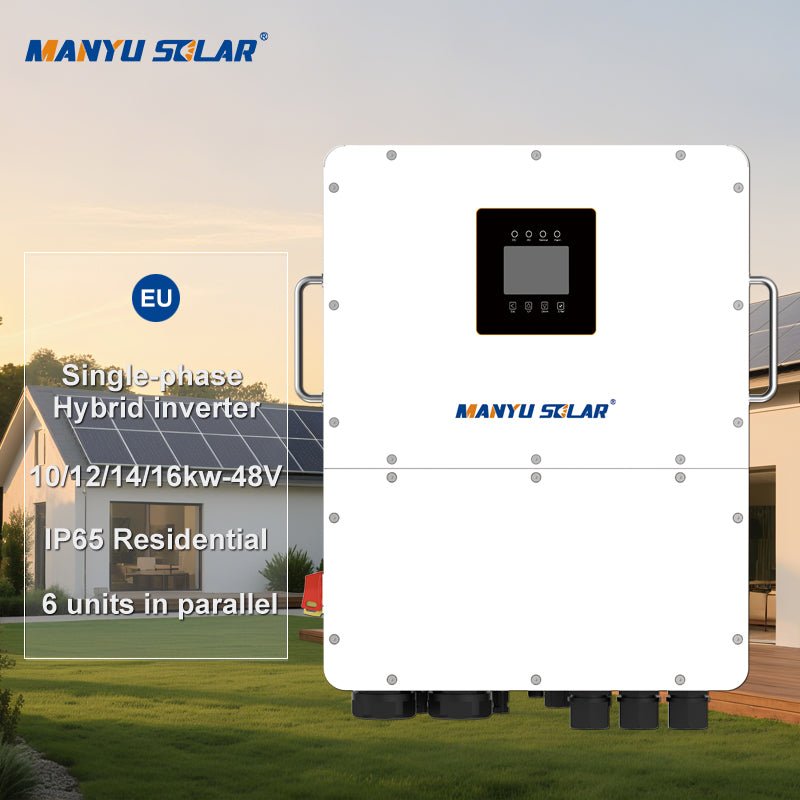

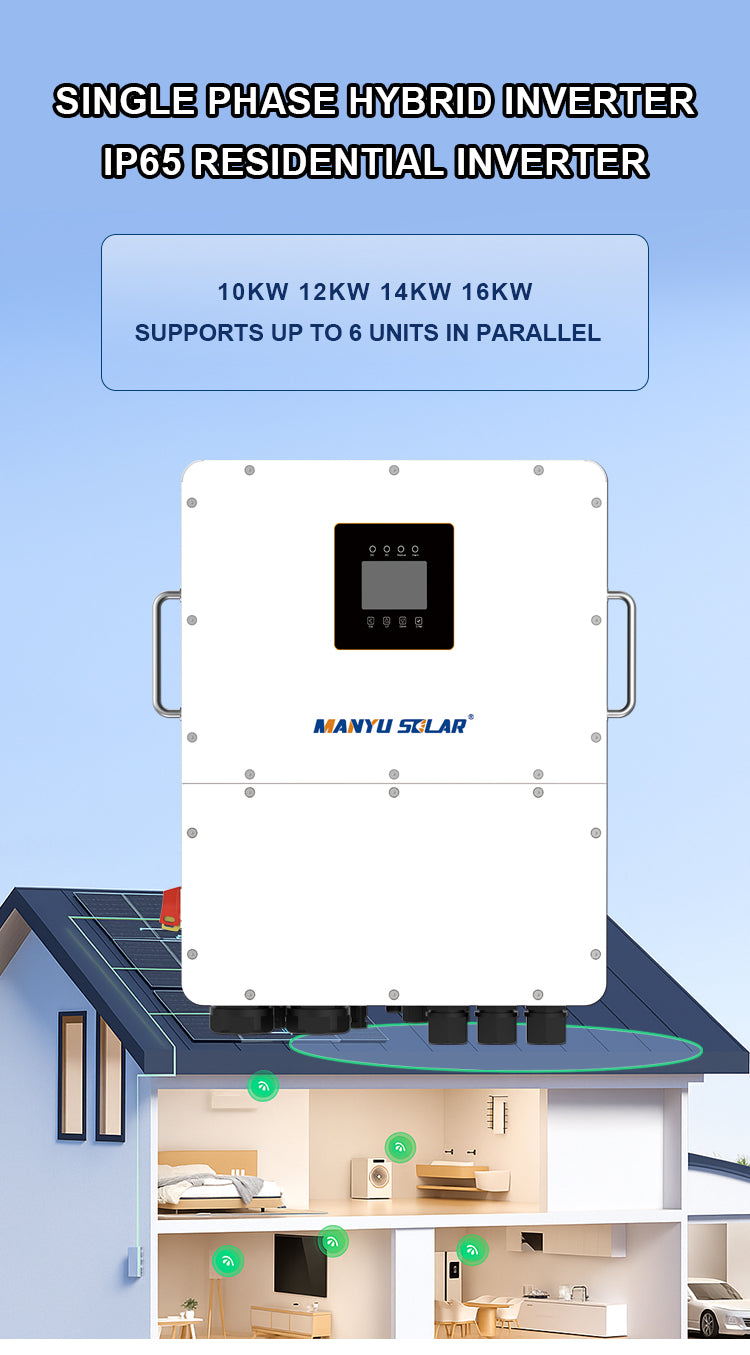

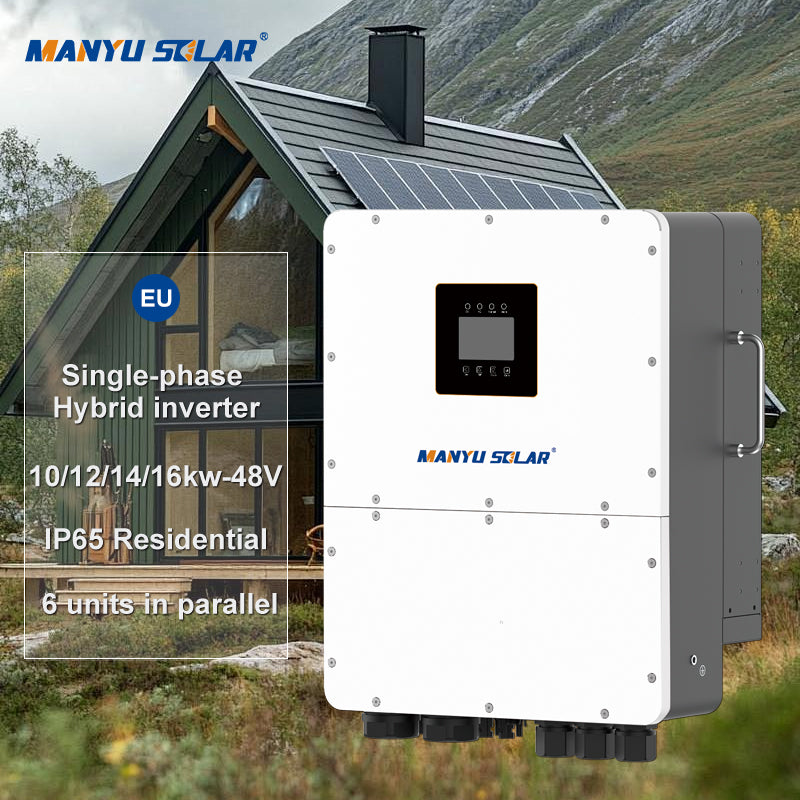

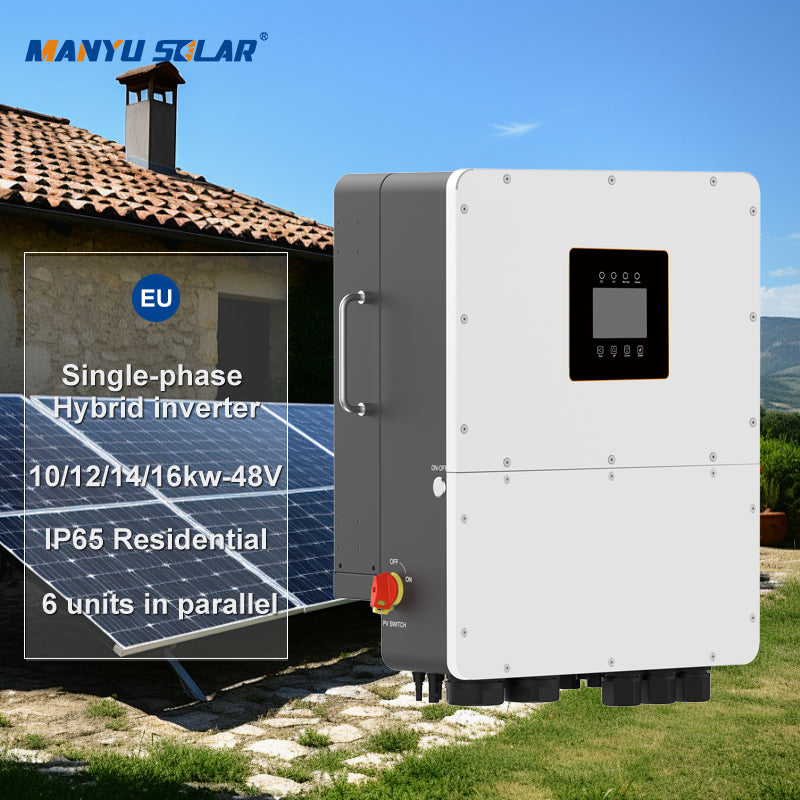

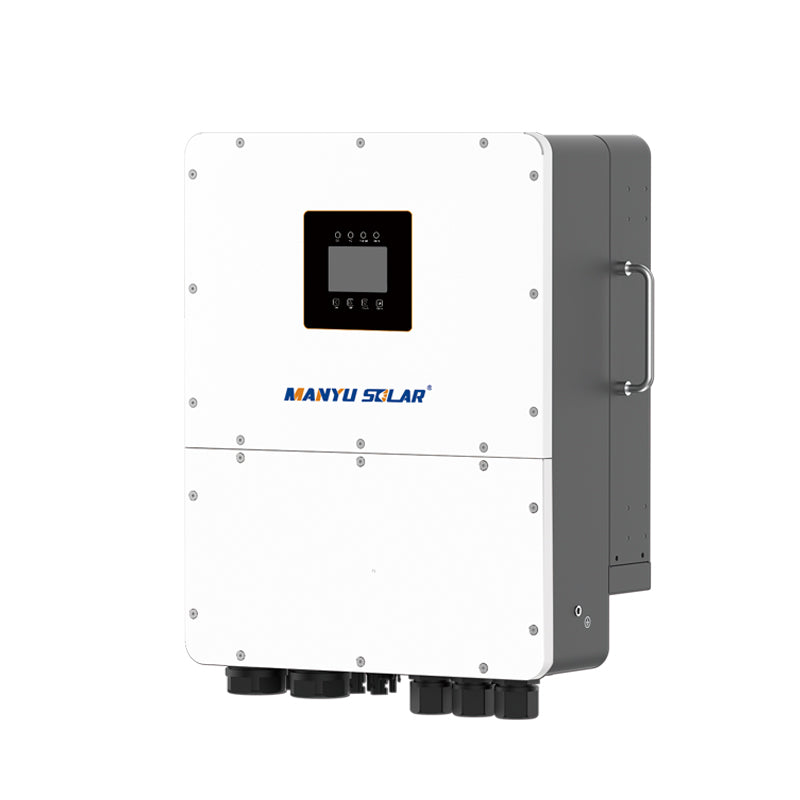

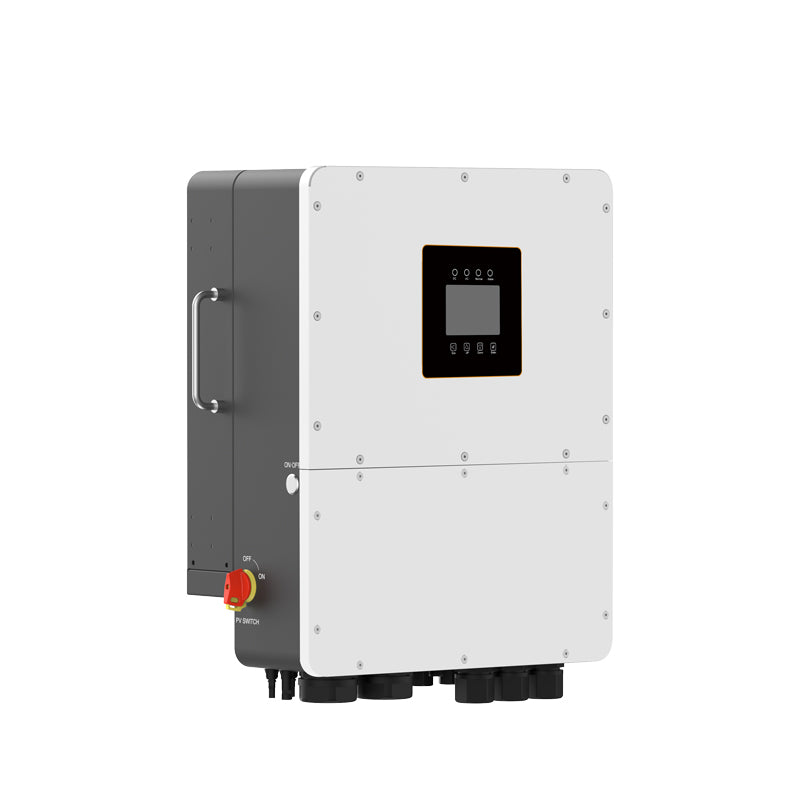

10 12 14 16 KW Hybrid Solar Inverter on Grid Hybrid ESS Solution Residential and Commercial Solar Power Solar Inverter
10 12 14 16 KW Hybrid Solar Inverter on Grid Hybrid ESS Solution Residential and Commercial Solar Power Solar Inverter
Couldn't load pickup availability
①.Max.275A Charge/Discharge for High-Rate Battery Support.
②.3 MPPTs with 150% PV Oversizing for Higher Yield.
③.Wide MPPT Range (80-480V) for Complex Rooftop Design.
④.Supports Generator& Smart load, Parallel up to 6 Units.
⑤.AC Coupling Ready for Easy Retrofit and System Upgrade.
⑥.<10ms UPS-Level Switching for Critical Load Continuity.
| TECHNICAL SPECIFICATION | ||||
| Model | MY-HL10K-P1EU | MY-HL12K-P1EU | MY-HL14K-P1EU | MY-HL16K-P1EU |
| INVERTER INPUT/OUTPUT (GRID) | ||||
| Rated Power (kW) | 10 | 12 | 14 | 16 |
| Rated Voltage | 220/230 /240 Va., L+N+PE | |||
| Rated Frequency (Hz) | 50/60 | |||
| Power Factor Range | 0.8 leading~0.8 lagging | |||
| switch Time (ms) | <10 | |||
| Current (Maximum Continuous) (A a.c.) | 43.5 | 52.2 | 60.9 | 69.6 |
| Max Output Overcurrent Protection | 100 | |||
| BATTERY | ||||
| Battery Type | Lithium / Lead-acid | |||
| Battery voltage Range (v d.c.) | 40~60 | |||
| Rated Battery Voltage (V d.c.) | 51.2 | |||
| Max charge Curent (A d.c.) | 220 | 250 | 275 | 275 |
| Max Discharge Current (A d.c.) | 220 | 250 | 275 | 275 |
| Reverse Connect protection | yes | |||
| PV INPUT | ||||
| No. of MPPT Tracker / Strings | 3/2+2+2 | |||
| Max. PV Array power | 15 | 18 | 21 | 22.5 |
| Max Dc voltage (v d.c.) | 550 | |||
| MPPT Voltage Range (v d.c.) | 80-480 | |||
| Start-up voltage (vd.c.) | 120 | |||
| Max.input current (A d.c.) | 3*26 | |||
| Isc pv (Absolute Maximum) (A d.c.) | 3*39 | |||
| AC OUTPUT (EPS) | ||||
| EPS Rated Output Voltage | 220/230 /240 Va., L+N+PE | |||
| EPs Rated Output Frequency (Hz) | 50/60 | |||
| EPS Rated Output Active Power (kW) | 10 | 12 | 14 | 16 |
| EPs Rated output Apparent Power (kvA) | 10 | 12 | 14 | 16 |
| EPS Rated Output Current (A a.c.) | 43.5 | 52.2 | 60.9 | 69.6 |
| Overload Capacity (0ffGrid) | 110%(<60s)/120%(<30s)/150%(<105) | |||
| EFFICIENCY | ||||
| MPPT Eficiency | 99.90% | |||
| Euro-efficiency | 96.50% | |||
| Max. Efficiency | 97.30% | |||
| PROTECTION & FEATURE | ||||
| insulation Monitoring | Yes | |||
| Residual current Monitoring | Yes | |||
| Parallel Function | Yes | |||
| protection Degree | IP65 | |||
| Certifcations | CE10-21,EN 50549-1,VDE-AR-N 4105, UNE 217002, NTS TYPEA,G99,AS/ NZS 4777.2 etc. | |||
| OtherProtection | 0utput over voltage, 0utput over current, Short circuit, Surge, Temperature | |||
| GENERAL PARAMETER | ||||
| Storage Temperature | -25°C~+60°C | |||
| Operating Temperature | -25*c ~ +60°c (Linely deratingto 60% when exceed +45°C ~ +60°C | |||
| Humidity | 0-100%(Non-condensing) | |||
| Altitude (m) | 4000 (>2000 Derating) | |||
| Noise (dB) | <45 | |||
| Machine Dimension(W"H*D) (mm) | 600*466*252 | |||
| Machine weight / N.w. (kg) | 40 | |||
| DISPLAY& COMMUNICATION | ||||
| Display | LCD+APP | |||
| Interface | RS485 / WiFi / CAN / Bluetooth (optional: Bluetooth / LAN / Meter) | |||
